RBSXTG-5HPacD-SA

MikroTik RBSXTG-5HPacD-SA, also known asSXT SA5 acIt is a high-performance outdoor wireless device operating in the 5 GHz band, featuring a wide-angle 90° antenna. This device, which supports the 802.11ac (Wi-Fi 5) standard, is specifically designed for high-speed wireless connections in large areas.

🔧 Technical Specifications

• İşlemci: Qualcomm QCA9557, 720 MHz, 1 core

• RAM: 128 MB DDR2

• Depolama: 128 MB NAND Flash

• Operating System: RouterOS (License Level 4)

• Ethernet Port: 1 x 10/100/1000 Mbps Gigabit Ethernet

• USB Port: 1 x USB Type-A (with Power Reset support)

• Boyutlar: 140 x 140 x 56 mm

• Ağırlık: 265 g

• Maximum Power Consumption:12 W

• Power Input: 15–60 V Passive PoE or 802.3af/at

• Operating Temperature: Between -30°C and +80°C

• IP Protection Class: IP54 (protected against dust and water splashes)

• Sertifikalar: FCC, CE, RoHS

📡 Wireless Features

• Frequency Band: 5 GHz (5150–5875 MHz; may vary depending on country regulations)

• Wireless Standards: 802.11a/n/ac (Wi-Fi 5), 2x2 MIMO

• Maximum Data Rate: 540 Mbps (actual data rate)

• Maximum Output Power: 31 dBm (at MCS0)

• Purchase Sensitivity: -96 dBm (at MCS0)

• Antenna Gain: 14 dBi

• Antenna Beam Width: 90°

• Antenna Structure: Dual polarized (Dual Polarity)

• Wireless Chipset: QCA9882

🛠️ Other Features

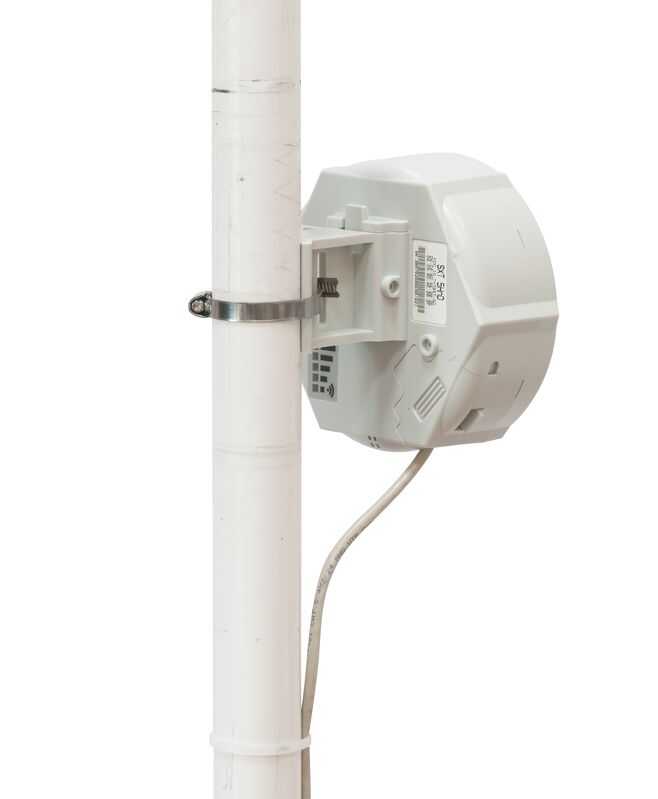

• Montaj: Integrated mounting device for easy installation

• Soğutma: Passive cooling

• Voltage and PCB Temperature Monitor: Mevcut

• USB Port: USB Type-A (with Power Reset support)

• Beeper: Evet
