RBOmniTikU-5HnD

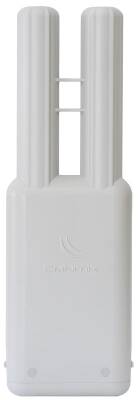

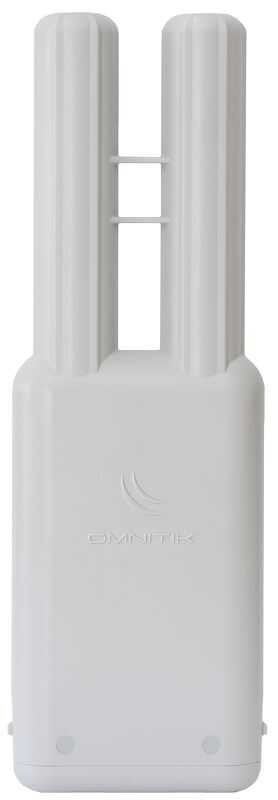

MikroTik RBOmniTikU-5HnD, also known asOmniTIK 5It is an outdoor wireless access point operating in the 5 GHz band, equipped with integrated 7.5 dBi dual-polarized omni antennas. With its durable and weather-resistant design, it is ideal for providing wireless network coverage, especially in large areas.

🔧 Technical Specifications

• Model Code: RBOmniTikU-5HnD

• İşlemci: Atheros AR9344, 600 MHz, 1 core

• RAM: 64 MB DDR2

• Depolama: 16 MB Flash

• Operating System: RouterOS (License Level 4)

• Boyutlar: 368 x 125 x 55 mm

• Ağırlık: Approximately 520 g

• Operating Temperature: Between -40°C and +70°C

• MTBF: Approximately 100,000 hours @ 25°C

📡 Wireless Features

• Frequency Band: 5 GHz (5150–5875 MHz; may vary depending on country regulations)

• Wireless Standards: 802.11a/n (Wi-Fi 4), 2x2 MIMO

• Maximum Data Rate: 300 Mbps

• Antenna Gain: 2 x 7.5 dBi (dual polarized: horizontal and vertical)

• Wireless Chipset: AR9344

• Nv2 TDMA Support: Yes, it provides a total data speed of up to 200 Mbps.

🔌 Connection and Power

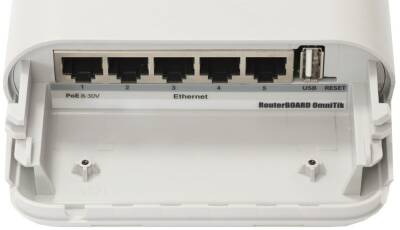

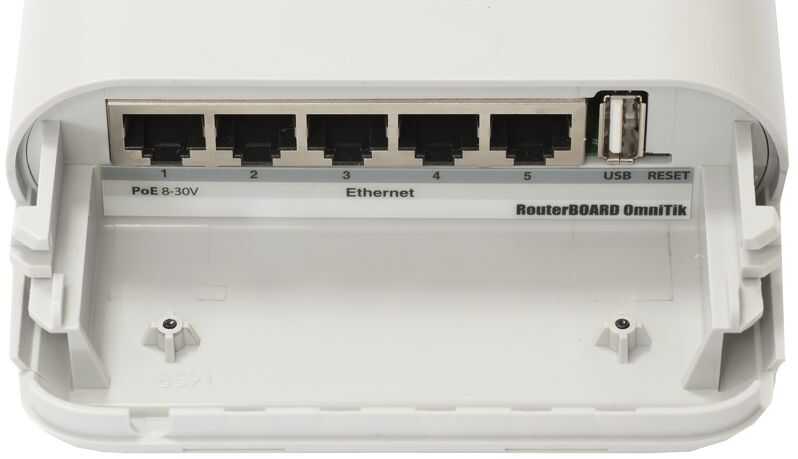

• Ethernet Ports: 5 x 10/100 Mbps Fast Ethernet

• USB Port: 1 x USB 2.0 Type-A (for 3G modem or storage device)

• Power Input: 11–30 V Passive PoE (via Ether1)

• Maximum Power Consumption:11 W

• Soğutma: Pasif

🛠️ Other Features

• LED Indicators: 5 programmable LEDs (indicate Ethernet activity by default), 1 power LED

• Ekstralar: Reset button, beeper, voltage and temperature monitor

• Case Features: Weather-resistant, suitable for outdoor use.

• Montaj: Integrated mounting ring and hose clamp for direct installation.

• Package Contents:

  • OmniTIK U-5HnD device

  • Mounting bracket

  • Hose clamp

  • 24V 0.8A power adapter

  • PoE injector
