RBMetal5SHPn

The MikroTik RBMetal5SHPn is a durable and high-power RouterBOARD device designed for outdoor wireless connections. It offers reliable performance in harsh environmental conditions thanks to its waterproof metal casing and high output power.

🔧 Technical Specifications

• Model: RBMetal5SHPn

• İşlemci: Atheros AR7241, 1 core, 400 MHz

• RAM: 64 MB

• Depolama: 128 MB NAND

• Operating System: RouterOS, License Level 4

• Boyutlar: 215 x 60 x 38 mm

• Ağırlık: 193 g

• Operating Temperature: Between -40°C and +70°C

• MTBF: Approximately 100,000 hours @ 25°C

📡 Wireless Features

• Frequency Band: 5 GHz (5150 MHz – 5875 MHz)

• Standartlar: 802.11a/n (Wi-Fi 4)

• Maximum Data Rate: 150 Mbps

• Chain Count: 1 (single chain)

• Wireless Chip: AR9280

• Output Power: Maximum 1300 mW (31 dBm)

• Purchase Sensitivity:

  • 6 Mbps: -93 dBm

  • 54 Mbps: -77 dBm

  • MCS0: -92 dBm

  • MCS7: -71 dBm​

🔌 Power and Connection

• Ethernet: 1 x 10/100 Mbps Ethernet port

• PoE Input: Passive PoE (9–30 V)

• Maximum Power Consumption: 11.5 W

• Soğutma: Pasif​

🛠️ Physical Features and Package Contents

• Kasa: Fully metal, waterproof, and industrial design

• Bağlantı: Internal N-male connector (antenna not included)

• Montaj: Metal rings and cable ties for direct mounting

• LED Indicators: LEDs for signal strength and system status

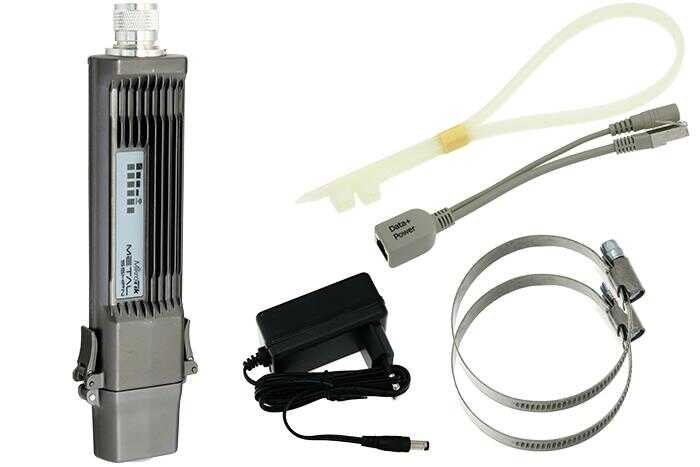

• Package Contents:

  • RBMetal5SHPn device

  • 24V 0.8A power adapter

  • PoE injector

  • Metal mounting rings (2 pieces)

  • Plastic cable tie​

✅ Areas of Use

• Long distance Point to Point (PtP) wireless connections

• Usage as Customer Premises Equipment (CPE)

• Outdoor access point (AP) applications

• Reliable wireless communication needs in challenging weather conditions​
