RBLHG-5nD-3

• The package contains 3 items. The stated price is for 1 item.

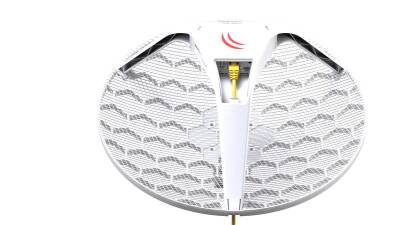

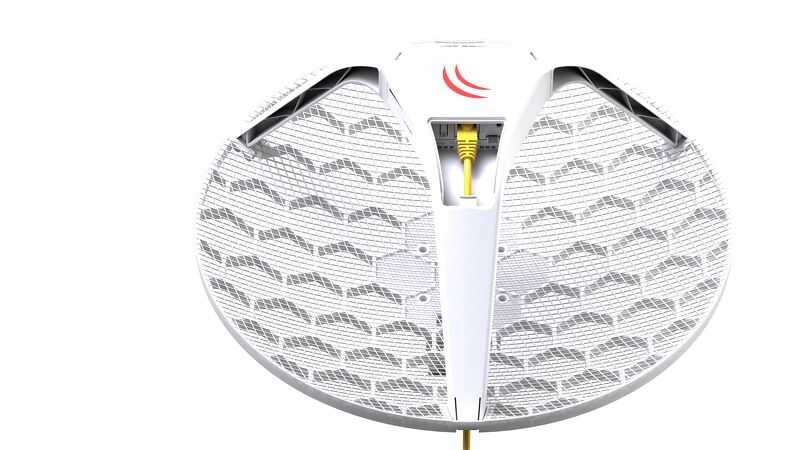

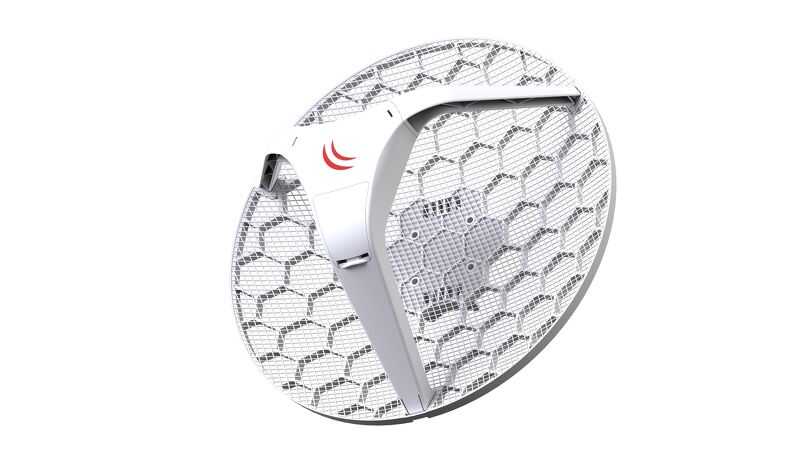

MikroTik RBLHG-5nD-3, known asLHG 5 3-Pack, it is a compact and lightweight 5 GHz CPE (Customer Premises Equipment) device designed for long-distance wireless connections, featuring an integrated 24.5 dBi grid antenna. This device is ideal for providing internet access, especially in rural areas, or for establishing high-speed connections between two points.

🔧 Technical Specifications

• Product Code: RBLHG-5nD-3

• İşlemci: AR9344, 600 MHz, 1 core (MIPSBE architecture)

• RAM: 64 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS (License Level 3)

• Boyutlar: Ø 391 x 222 mm; package: 450 x 450 x 145 mm

• Ağırlık: Device: 560 g; package: 1.98 kg

• Operating Temperature: Between -40°C and +70°C

• MTBF: Approximately 100,000 hours (at 25°C)

📡 Wireless Features

• Frequency Band: 5 GHz (International version: 5150–5875 MHz)

• Wireless Standards: 802.11a/n (Wi-Fi 4), 2x2 MIMO

• Maximum Data Rate: 300 Mbps

• Antenna Gain: 24.5 ±0.5 dBi

• Antenna Beam Width: 7°

• Wireless Chipset: AR9344

• Output Power and Reception Sensitivity:

  • 6 Mbps: 25 dBm / -96 dBm

  • 54 Mbps: 20 dBm / -80 dBm

  • MCS0: 25 dBm / -96 dBm

  • MCS7: 19 dBm / -75 dBm

🔌 Connection and Power Options

• Ethernet Port: 1 x 10/100 Mbps RJ45

• Power Input:

  • Passive PoE: 11–30 V

• Maximum Power Consumption:6 W

• Soğutma: Pasif

🌐 Other Features

• IP Protection Class: IP54 (protected against dust and water splashes)

• Wind Resistance: Up to 205 km/h speed

• Wind Load: 186N @ 205 km/h

• Cross Polarization: 15 dBi

• Inter-Port Isolation: 20 dB

• Front-to-Back Ratio: 25 dB

• Moisture Resistance: 5–95% relative humidity (non-condensing)

• Shock and Vibration Resistance: Compliant with the ETSI300-019-1.4 standard

📦 Box Contents

• 3 units of LHG 5 device

• 3 x 24V 0.38A power adapter

• 3 x PoE injector

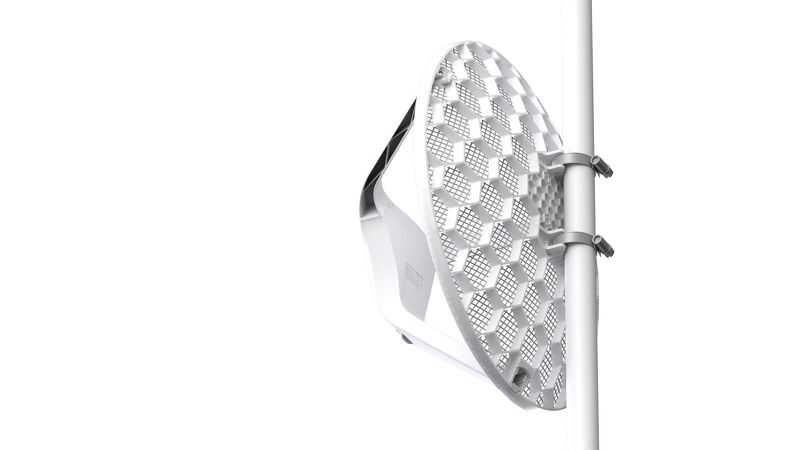

• 3 x K-LHG mounting kit

• 6 x metal ring (for assembly)

• 5° slope adapter
