RBLHG-5HPND-XL

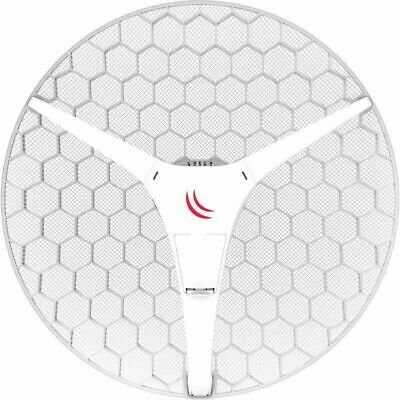

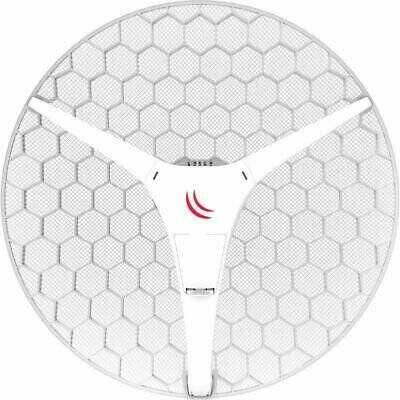

MikroTik LHG XL 5 ac

MikroTik RBLHG-5HPnD-XL, widely known asLHG XL HP5It is known as a high-gain, high-output power outdoor wireless device operating in the 5 GHz band. This device is specifically designed for long-distance point-to-point (PtP) connections and can provide connectivity up to 40 km thanks to its integrated 27 dBi dual-polarized grid antenna.

🔧 Technical Specifications

• Model Code: RBLHG-5HPnD-XL

• İşlemci: Atheros AR9344, 600 MHz

• RAM: 64 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS (License Level 3)

• Boyutlar: Ø 550 x 245 mm

• Ağırlık: 945 g

• Operating Temperature: Between -40°C and +70°C

• MTBF: Approximately 100,000 hours @ 25°C

📡 Wireless Features

• Frequency Band: 5 GHz (5150–5875 MHz; may vary depending on country regulations)

• Wireless Standards: 802.11a/n (Wi-Fi 4), 2x2 MIMO

• Maximum Data Rate: 300 Mbps

• Antenna Gain: 27 dBi (±0.5 dB)

• Beamwidth (3 dB): 6.4°

• Polarizasyon: Pair (vertical and horizontal)

• Cross Polarization Isolation: 21 dB

• Inter-Port Isolation: 18 dB

• Front-to-Back Ratio: 35 dB

• VSWR: 1.5:1

🔌 Power and Connection

• Ethernet Port: 1 x 10/100 Mbps Fast Ethernet

• Power Input: 10–28 V Passive PoE

• Maximum Power Consumption:7 W

• Soğutma: Pasif

📦 Box Contents

• LHG XL HP5 device

• 24V 0.38A power adapter

• PoE injector

• Assembly kit

• Metal ring
