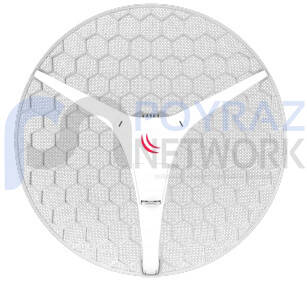

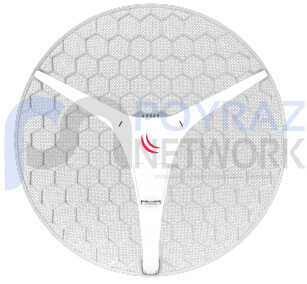

RBLHG-2nD-XL

MikroTik RBLHG-2nD-XL, also known asLHG XL 2It is an outdoor wireless device operating in the 2.4 GHz band, featuring an integrated 21 dBi dual-polarized grid antenna. This model is particularly ideal for long-distance point-to-point (PtP) connections and remote client devices (CPE).

📡 Technical Specifications

• Model Code: RBLHG-2nD-XL

• İşlemci: Qualcomm Atheros QCA9533, 650 MHz

• RAM: 64 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS (License Level 3)

• Wireless Standards: 802.11b/g/n (Wi-Fi 4), 2x2 MIMO

• Maximum Data Rate: 300 Mbps

• Antenna Gain: 21 dBi

• Frequency Range: 2.4 GHz

• Ethernet Port: 1 x 10/100 Mbps

• Power Input: 10–30 V Passive PoE

• Maximum Power Consumption:5 W

• Boyutlar: Ø 550 x 245 mm

• Operating Temperature: Between -40°C and +70°C

• Protection Class: IP54 (weatherproof)

📦 Box Contents

• LHG XL 2 device

• 24V 0.8A power adapter

• PoE injector

• Assembly kit

🌐 Usage Scenarios

• Point to Point (PtP) Connections: It is suitable for long-distance connections thanks to its high-gain antenna.

• Use as a Client Device (CPE): It provides a strong and stable connection for remote clients.

• Internet Access in Rural Areas: It is an ideal solution for providing internet access in rural areas.
