RBGRooveGA-52HPacn

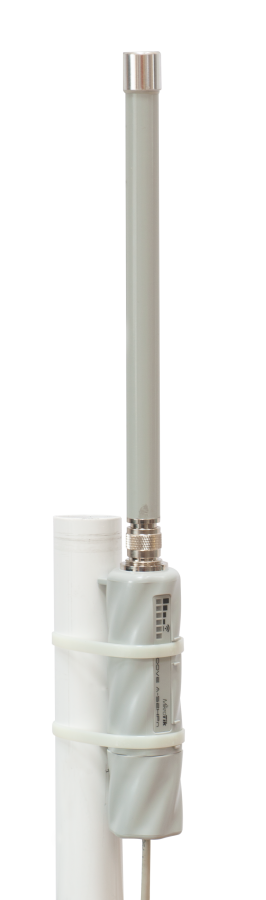

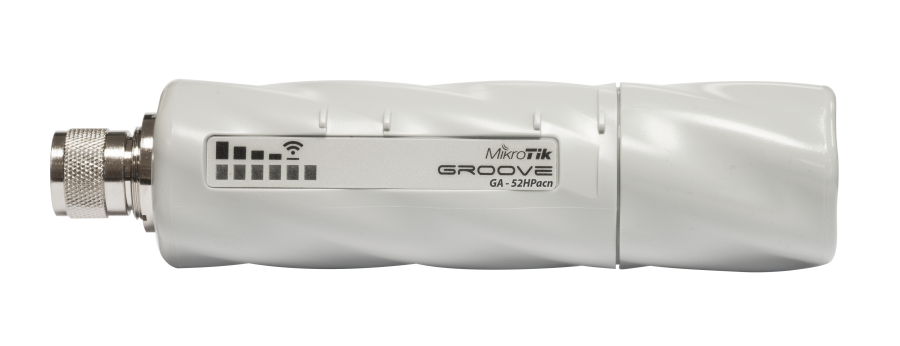

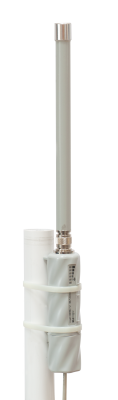

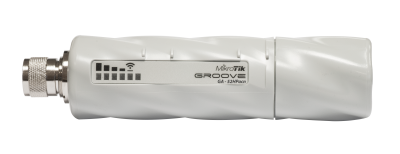

The MikroTik RB Groove GA 52HPacn is one of MikroTik's smallest outdoor devices, a wireless device operating in the 2.4 GHz and 5 GHz frequency bands with 802.11ac support. This device is specifically designed for high-performance point-to-point (P2P) connections, access point (AP), and customer premise equipment (CPE) applications.​

📦 Technical Specifications

• Product Code: RBGrooveGA-52HPacn

• İşlemci: Qualcomm QCA9556, 720 MHz, 1 core

• RAM: 64 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS v7 (License Level 4)

• Boyutlar: 177 x 44 x 44 mm

• Ağırlık: Approximately 0.5 kg

• Operating Temperature: -40°C to +70°C

• MTBF: Approximately 100,000 hours @ 25°C

• IP Certificate: IP55 (Dust and water resistant)

• PoE Support: Passive PoE (10–30 V)

• Power Consumption: Maximum 5 W

• Anten: Internal 6 dBi for 2.4 GHz and 8 dBi for 5 GHz omnidirectional antenna

• Ethernet Port: 1 piece 10/100/1000 Mbps Gigabit Ethernet port​

📡 Wireless Features

• Frequency Bands:

  • 2.4 GHz: 2412–2484 MHz

  • 5 GHz: 5150–5875 MHz

• Wireless Standards:

  • 2.4 GHz: 802.11b/g/n

  • 5 GHz: 802.11a/n/ac

• Maximum Data Rate: 433 Mbps (5 GHz)

• Kanallar: 20/40/80 MHz (for 5 GHz)

• Antenna Connection: N-female (external thread)

• Operating Modes: AP, CPE, PTP

• Antenna Gain:

  • 2.4 GHz: 6 dBi

  • 5 GHz: 8 dBi​

🔧 Included

• PoE Injector: 24 V, 0.38 A

• Power Adapter: 24 V, 0.38 A

• Assembly Fixtures: Mounting rings

• Anten: Internal 2.4/5 GHz omnidirectional antenna​

📌 Application Areas

• Point-to-Point (P2P) Connections: It is ideal for long-distance high-speed connections.

• Use as an Access Point (AP): It is suitable for wireless network distribution in small areas.

• Customer Premises Equipment (CPE): It can be used to provide bridge connections or internet access.

• Outdoor Installations: It is resistant to harsh weather conditions thanks to its IP55 certification.​
