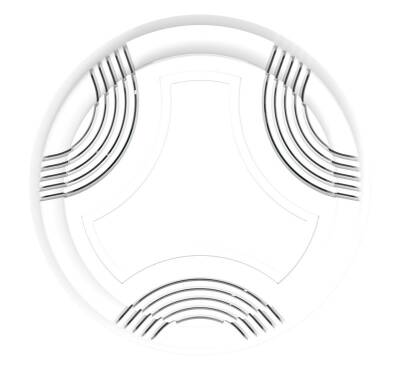

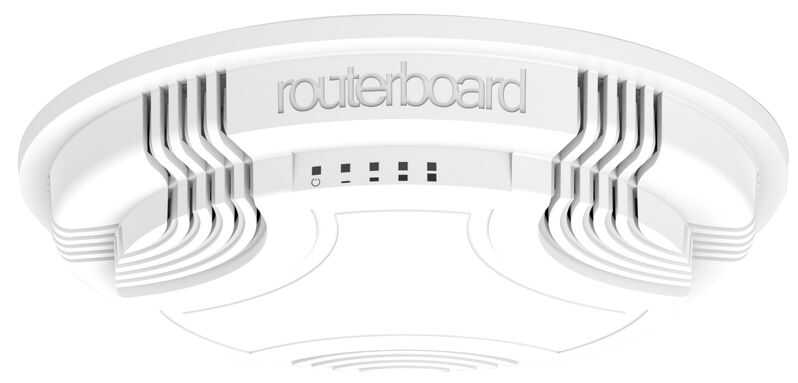

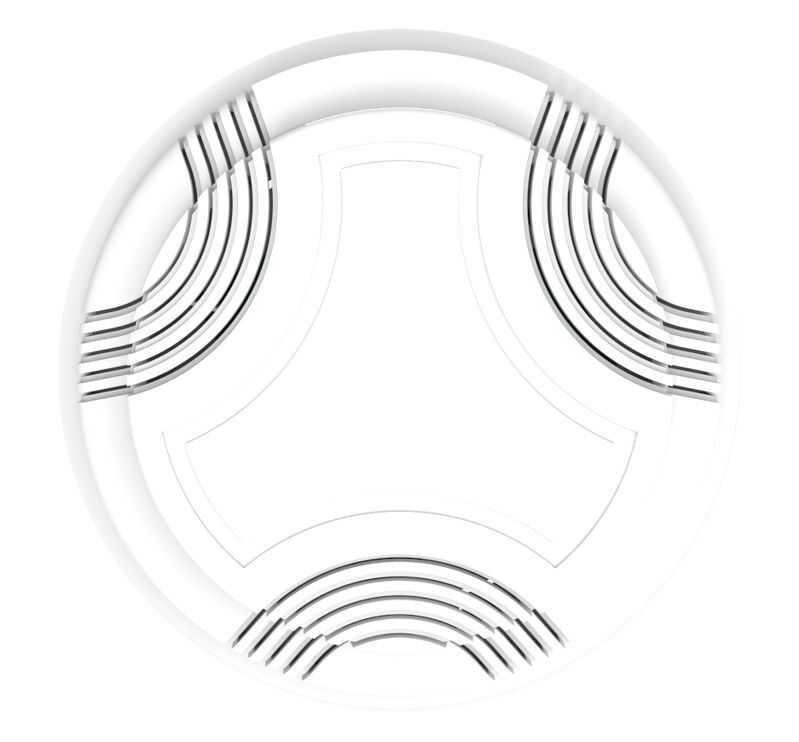

RBcAP2nD

The MikroTik RBcAP2nD is a ceiling-mountable, 2.4 GHz dual-chain wireless access point. It is especially ideal for central wireless network solutions in large areas such as hotels, dormitories, restaurants, shopping malls, and offices.

📡 Basic Technical Specifications

• Wireless Standards: 802.11b/g/n (Wi-Fi 4)

• Frequency Band: 2.4 GHz

• Maximum Wireless Speed: 300 Mbps

• Anten: 2 x 2 dBi internal antenna

• Wireless Chip: QCA9533

• Chain Count: 2 (Dual-Chain)

⚙️ Hardware Specifications

• İşlemci: QCA9533, 650 MHz

• RAM: 64 MB

• Depolama: 16 MB Flash

• Ethernet Port: 1 x 10/100 Mbps (PoE supported)

• Power Consumption: Maximum 4W

• Power Input: 11–57V PoE (802.3af/at compliant)

• Soğutma: Pasif

• Operating Temperature: -40°C to +70°C

• Boyutlar: 185 mm diameter, 31 mm height

🧰 Software and Management

• Operating System: MikroTik RouterOS (License Level 4)

• Yönetim: Central AP management with CAPsMAN support.

• Default IP: 192.168.88.1 (Username: admin, password: none)

📦 Box Contents

• RBcAP2nD device

• PoE injector

• 24V 0.2A power adapter

• Ceiling mounting kit and screw set
