RB952Ui-5ac2nD-TC

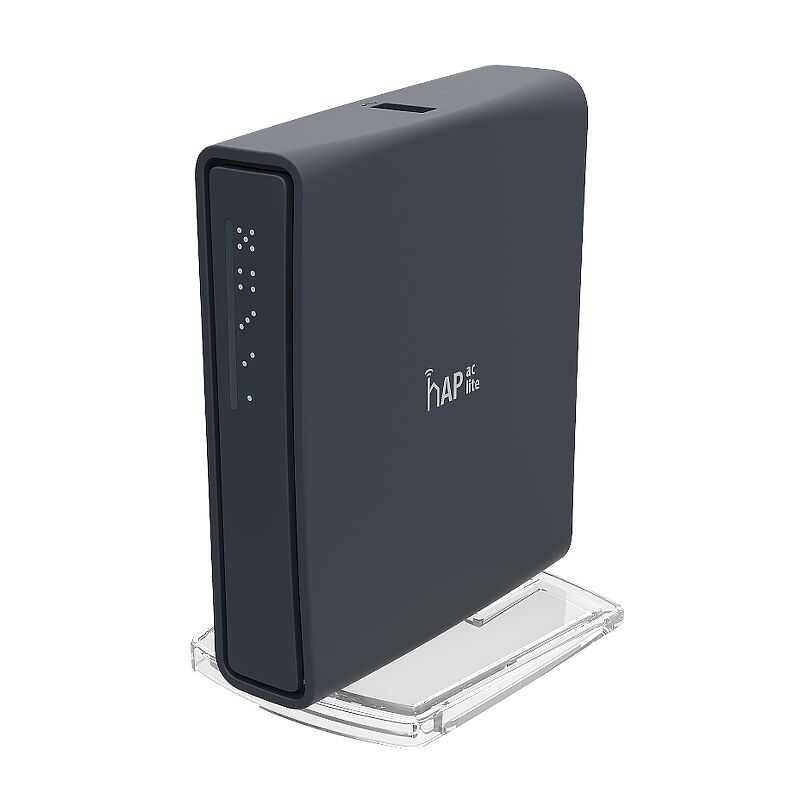

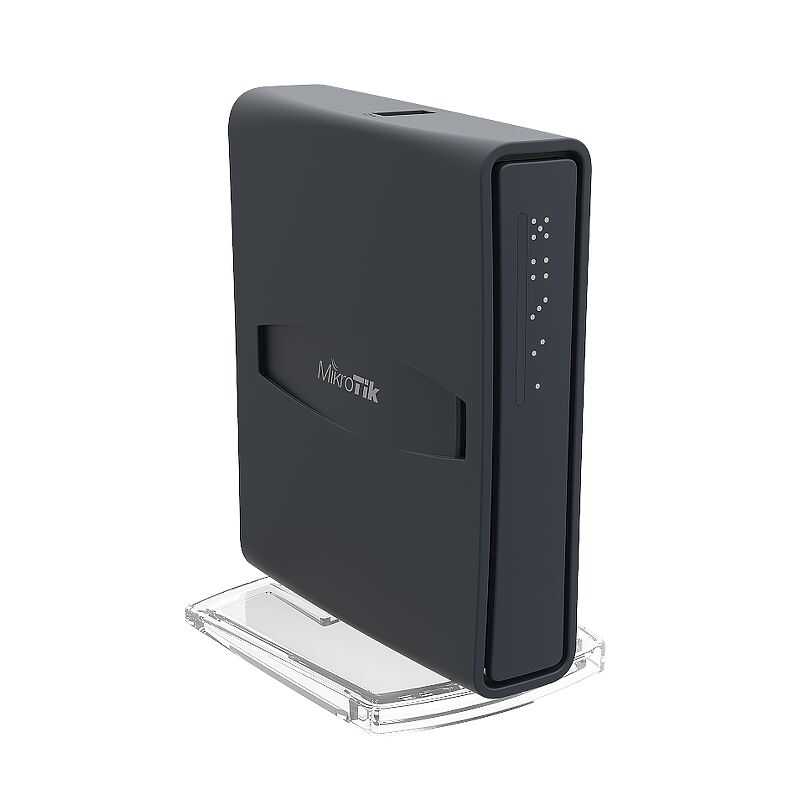

MikroTik RB952Ui-5ac2nD-TC, Also known as "hAP ac lite TC," it is a dual-band wireless access point designed by MikroTik for home and small office use. This device, notable for its compact design and affordable price, offers advanced network management features thanks to the RouterOS operating system.

⚙️ Technical Specifications

• Product Code: RB952Ui-5ac2nD-TC

• İşlemci: Qualcomm QCA9531, single-core, 650 MHz

• RAM: 64 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS (License Level 4)

• Boyutlar: 34 x 119 x 98 mm

• Operating Temperature: Between -30°C and +70°C

• MTBF: Approximately 100,000 hours @25°C

📡 Wireless Features

• Frequency Bands: 2.4 GHz and 5 GHz (dual band)

• 2.4 GHz Wireless:

  • Standartlar: 802.11b/g/n

  • MIMO: 2x2

  • Antenna Gain: 1.5 dBi

• 5 GHz Wireless:

  • Standartlar: 802.11a/n/ac

  • MIMO: 1x1

  • Antenna Gain: 2 dBi

🔌 Connection and Power

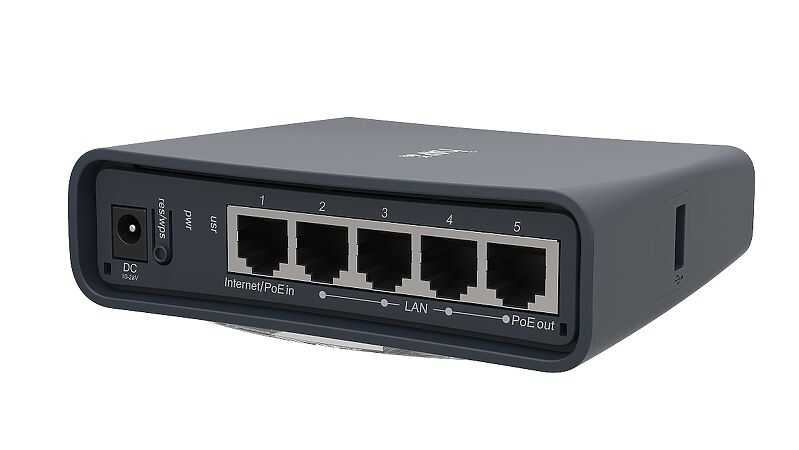

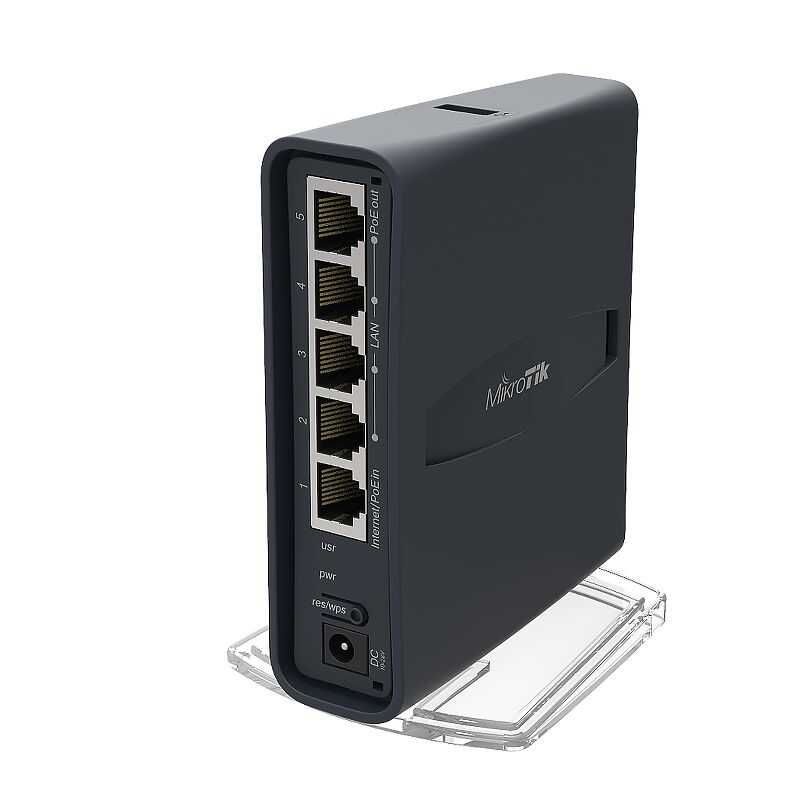

• Ethernet Ports: 5 x 10/100 Mbps Fast Ethernet

• PoE Support:

  • Giriş: Yes (8–30 V)

  • Çıkış: Yes, via Port 5 (max. 500 mA)

• USB Port: 1 x USB 2.0 (for 3G/4G modem or storage devices)

• Maximum Power Consumption:7 W

• Soğutma: Pasif

🧰 Other Features

• Case Type: Vertical tower design (can be mounted on desktop or wall)

• WPS Button: Current (for connection without entering password)

• CAPsMAN Support: Exists (for central administration)

• Firewall, QoS, Hotspot, Bandwidth Shaping: Desteklenir
