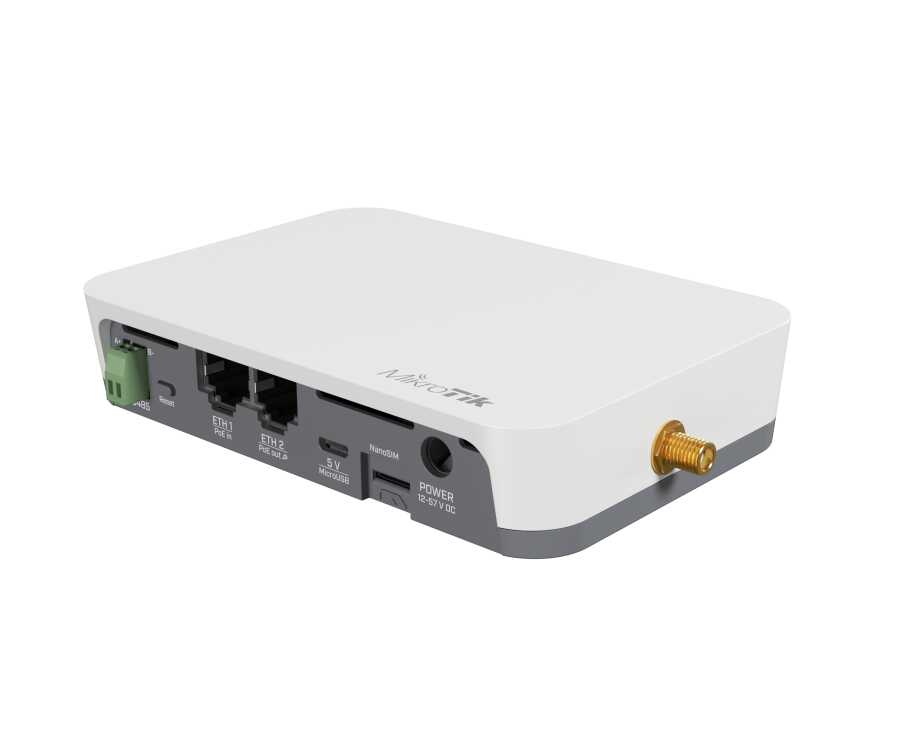

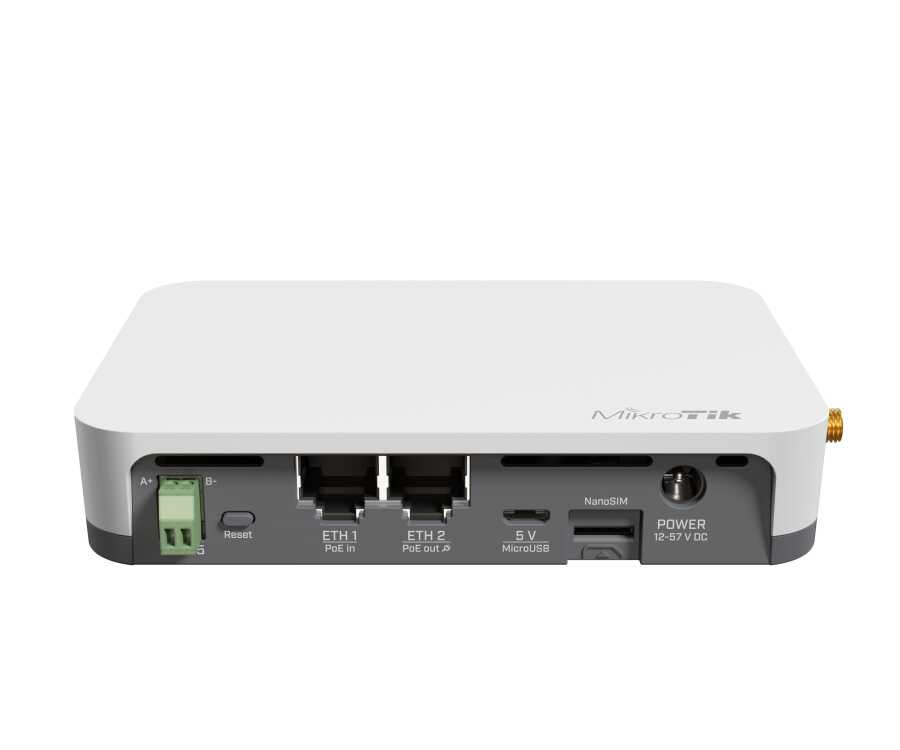

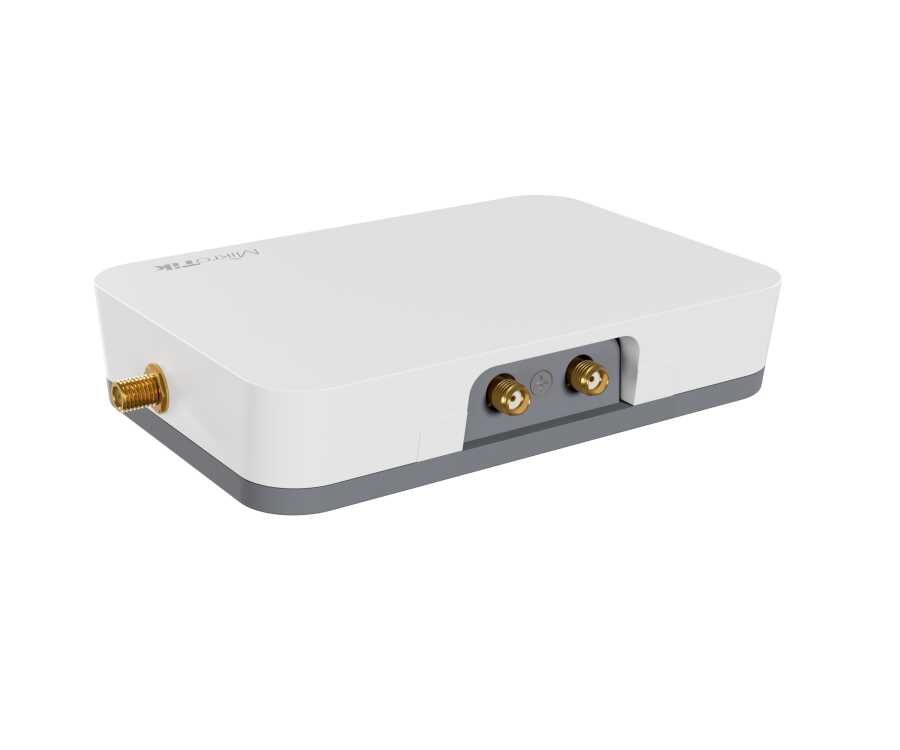

MikroTik RB924iR-2nD-BT5&BG77&R11e-LR8(KNOT LR8 Kit) is a gateway designed for LoRa®-based IoT applications, offering multiple connectivity options and extensive protocol support. This device is particularly suitable for use in areas such as industrial automation, agriculture, cold chain monitoring, and asset tracking.
İşlemci: Qualcomm QCA9531, 650 MHz
RAM: 64 MB
Depolama: 128 MB NAND Flash
Yazılım: RouterOS v7, Level 4 license
Boyutlar: 122 x 87 x 26 mm
Operating Temperature: -40°C to +70°C
MTBF: Approximately 200,000 hours (at 25°C)
Ethernet Ports: 2 x 10/100 Mbps RJ45 (PoE-IN Port1, PoE-OUT Port2)
USB Port: 1 x microUSB Type AB (max. 1A)
SIM Card Slot: 1 x Nano SIM (for modem)
MiniPCI-e Slot:1 x
Serial Console Port: RS485
Power Input: DC Jack (12–57 V), PoE-IN (802.3af/at, 18–57 V), microUSB (5 V)
Maximum Power Consumption:20 W
LoRa® Support: 863–870 MHz (EU) or 902–928 MHz (US), 8-channel LoRaWAN® gateway
Bluetooth: Bluetooth 5.2 with iBeacon and Eddystone support for asset tracking and sensor data collection
Wi-Fi: 2.4 GHz, 802.11b/g/n, 2x2 MIMO, 300 Mbps data rate, QCA9531 chip
Antenna Gain: 1.5 dBi for Wi-Fi, 2 dBi for Bluetooth
Antenna Connection: u.FL
LoRaWAN® Gateway: Forwarding data from LoRa® devices to servers over TCP/IP
Bluetooth Based Applications: Detecting iBeacon or Eddystone tags and transmitting via MQTT/HTTPS
Modbus Converter: Converting Modbus data received via RS485 to TCP/IP
IoT Network Port: Creating a centralized IoT infrastructure by combining different protocols.
Assembly Options: Integration with industrial panels via DIN rail mounting support.
IP Certificate: IP20
Areas of Use: Gateway, sensor bridge, data collector, MQTT/HTTPS proxy
