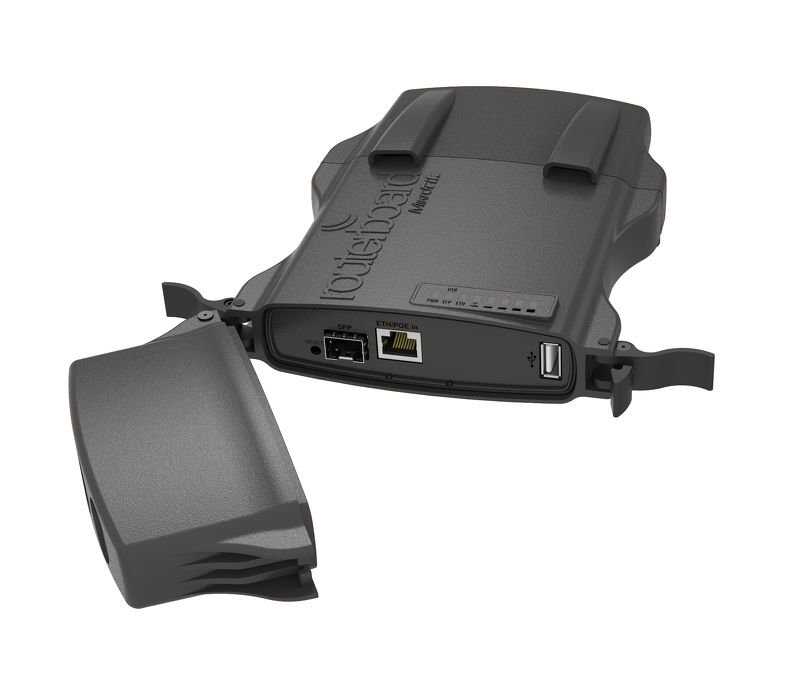

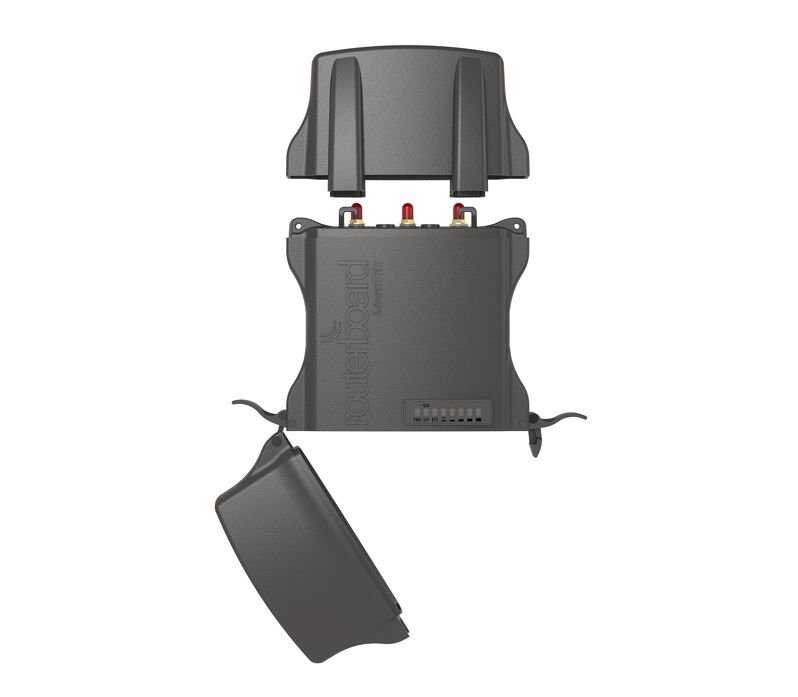

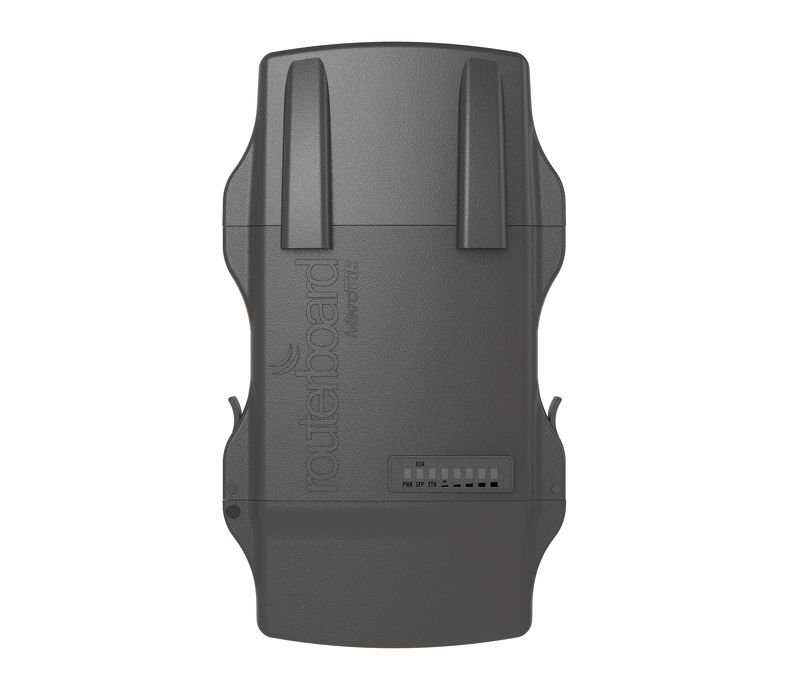

The MikroTik NetMetal ac² (RB921UAGS-5SHPacD-NM) is a high-power, robust 802.11ac wireless access point designed for challenging outdoor conditions. With its powerful quad-core processor, Gigabit Ethernet port, SFP cage, and 802.11ac support, it is ideal for high-speed point-to-point (PtP) or point-to-multipoint (PtMP) connections, serving as a wireless base station or CPE (Customer Premises Equipment). Its sturdy metal casing provides excellent heat dissipation and durability.
🔧 Technical Specifications
Product Code: RB921UAGS-5SHPacD-NM
İşlemci:4-core IPQ-4019, 716 MHz
RAM:256 MB DDR3L
Depolama:16 MB FLASH
Operating System:RouterOS (License level 4)
Boyutlar:143 x 247 x 48 mm
Operating Temperature:-40°C to +70°C
Protection Class:IP54 (Resistant to water splashes and dust)
📶 Network Interfaces
Kablosuz:Internal 5 GHz 802.11a/n/ac, Dual Chain MIMO 2x2
Ethernet Port:1 piece 10/100/1000 Gigabit Ethernet port (PoE-in supported)
SFP Port:1 piece 1.25G SFP cage
Antenna Connections:2 pieces of RP-SMA Female connectors (for external antennas)
Other Ports:1 x USB type A, 1 x SIM Slot (Micro SIM - LTE modem can be installed, modem not included)
⚡ Power and Cooling
PoE Input:802.3af/at and Passive PoE (18-57V)
DC Jack Input: 12-57V
Maximum Power Consumption:21 W (approximately 11 W without accessories)
Soğutma:Passive cooling (metal case acts as a heat dissipator)
🧠 Software and Features
Wireless Modes:Access Point (AP), Station, PtP Bridge, PtMP Bridge
Network Protocols:All features coming with RouterOS L4 (Routing, Firewall, MPLS, VPN, QoS, Hotspot, etc.)
Management Interface:WinBox, WebFig (Web interface), CLI (SSH, Telnet), The Dude
Özellikler:Robust aluminum die-cast casing, high output power, external antenna support, SIM slot for LTE modem, SFP port flexibility.
📦 Box Contents
NetMetal ac² (RB921UAGS-5SHPacD-NM) unit
24V 1.2A power adapter
Gigabit PoE injector
Metal ring clamp (For pole mounting)
DIN rail mounting adapter
