RB911G-5HPnD-QRT

MikroTik RB912UAG-2HPnD-OUT, also known asBaseBox 2, it is a high-power 2.4 GHz wireless access point designed for outdoor use. Based on the RouterBOARD 912UAG model, this device offers a flexible and powerful network solution with an integrated 802.11b/g/n wireless card, a miniPCIe slot, and a Gigabit Ethernet port.

🔧 Technical Specifications

• Model Code: RB912UAG-2HPnD-OUT

• İşlemci: Atheros AR9342, 600 MHz, 1 core

• RAM: 64 MB

• Depolama: 64 MB NAND Flash

• Operating System: RouterOS (License Level 4)

• Boyutlar: 246 x 135 x 50 mm

• Ağırlık: Approximately 265 g

• MTBF: Approximately 100,000 hours @ 25°C

• Operating Temperature: Between -40°C and +70°C

• IP Protection Class: IP54 (protected against dust and water splashes)

📡 Wireless Features

• Frequency Band: 2.4 GHz (2400–2500 MHz)

• Wireless Standards: 802.11b/g/n (Wi-Fi 4), 2x2 MIMO

• Maximum Data Rate: 300 Mbps

• Maximum Output Power: 30 dBm

• Antenna Connection Points: 2 x RP-SMA female (for external antennas)

• Purchase Sensitivity:

  • 1 Mbps: -100 dBm

  • 11 Mbps: -94 dBm

  • 6 Mbps: -96 dBm

  • 54 Mbps: -78 dBm

  • MCS0: -96 dBm

  • MCS7: -73 dBm

🔌 Connection and Power

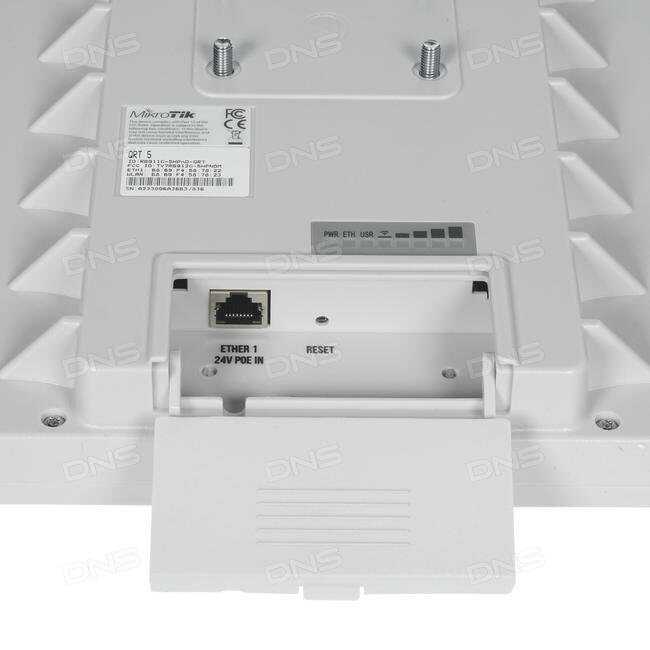

• Ethernet: 1 x 10/100/1000 Mbps Gigabit Ethernet port

• USB: 1 x USB Type-A (with Power Reset support)

• miniPCIe Slot: 1 unit (for additional wireless card or 3G/4G modem)

• SIM Slot: 1 x Mini SIM (for 3G/4G modem)

• Power Input: 8–30 V Passive PoE

• Maximum Power Consumption:10 W

• Soğutma: Pasif

🛠️ Other Features

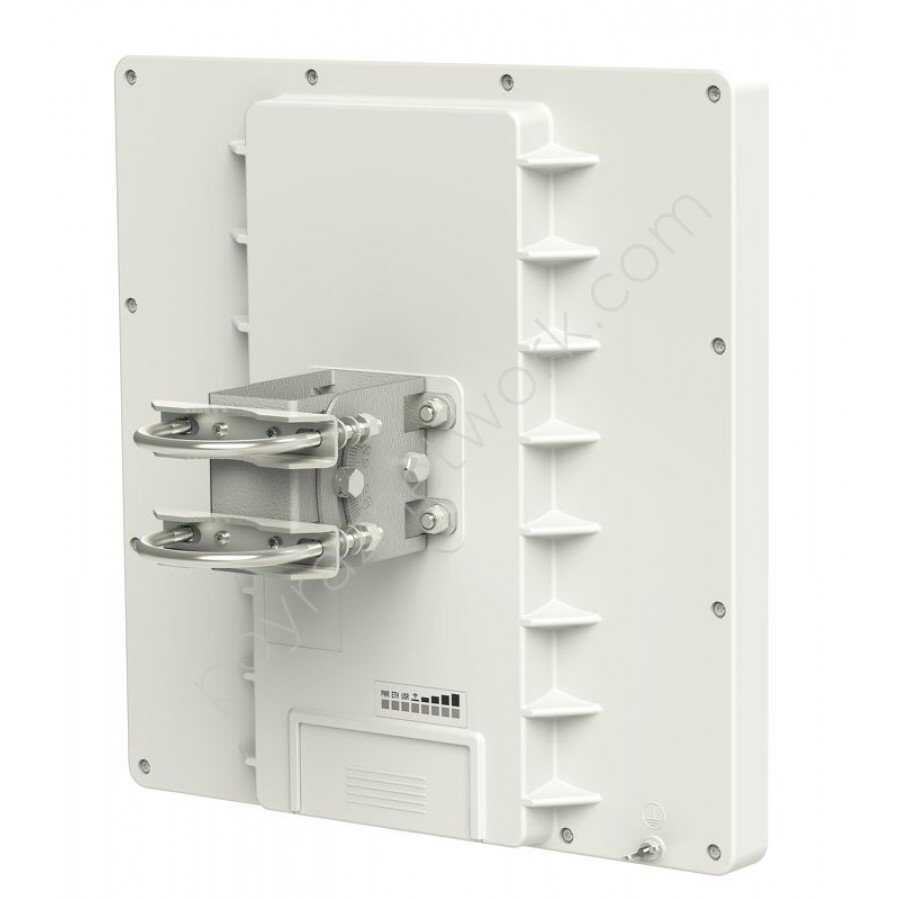

• Montaj: Integrated mounting ring and DIN rail mounting apparatus for pole or tower installation.

• Case Features: One-hand openable, moisture-protected cable cap

• Ekstralar: PCB temperature monitor, voltage monitor, beeper

• Package Contents:

  • 24V 0.8A power adapter

  • Gigabit PoE injector

  • DIN mounting fixture (K-27)

  • Metal ring

  • Mounting set for 1/2 Mini PCI express card (K-25)
