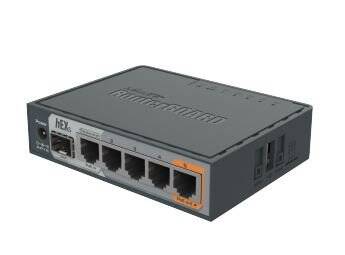

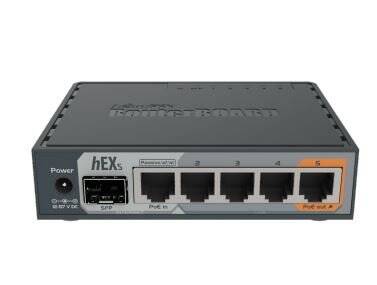

RB760iGS hEX S

MikroTik RB760iGS, also known ashEX S, is a compact and high-performance Gigabit Ethernet router designed for environments where wireless connectivity is not required. It is a cost-effective and powerful solution especially for small offices, home networks, and service providers.

🔧 Technical Specifications

• İşlemci: MediaTek MT7621A, dual-core, 880 MHz

• RAM: 256 MB DDR3

• Depolama: 16 MB FLASH

• Ethernet Ports: 5 x 10/100/1000 Mbps (RJ45)

• SFP Port: 1 x 1.25 Gbps SFP slot

• USB: 1 x USB 2.0 Type-A

• microSD SlotThere is

• PoE Input: Passive PoE (12–57 V) via Ether1

• PoE Output: Passive PoE via Ether5 (max. 500 mA)

• Maximum Power Consumption11 W

• Operating System: RouterOS Level 4 licensed

• Boyutlar: 113 x 89 x 28 mm

• Operating Temperature: -40°C to +70°C

⚙️ Featured Features

• Hardware-Based IPsec Encryption: It provides approximately 470 Mbps performance in IPsec traffic.

• The Dude Server Support: It comes with a built-in The Dude server for network monitoring and management.

• PoE Passthrough Feature: The PoE power received through Ether1 can be transferred to another device via the Ether5 port.

• Advanced Configuration Support: It supports all the advanced routing, security, and traffic management features offered by RouterOS.

📦 Box Contents

• RB760iGS (hEX S) device

• Power adapter

• Quick installation guide
