RB5009UPr+S+OUT

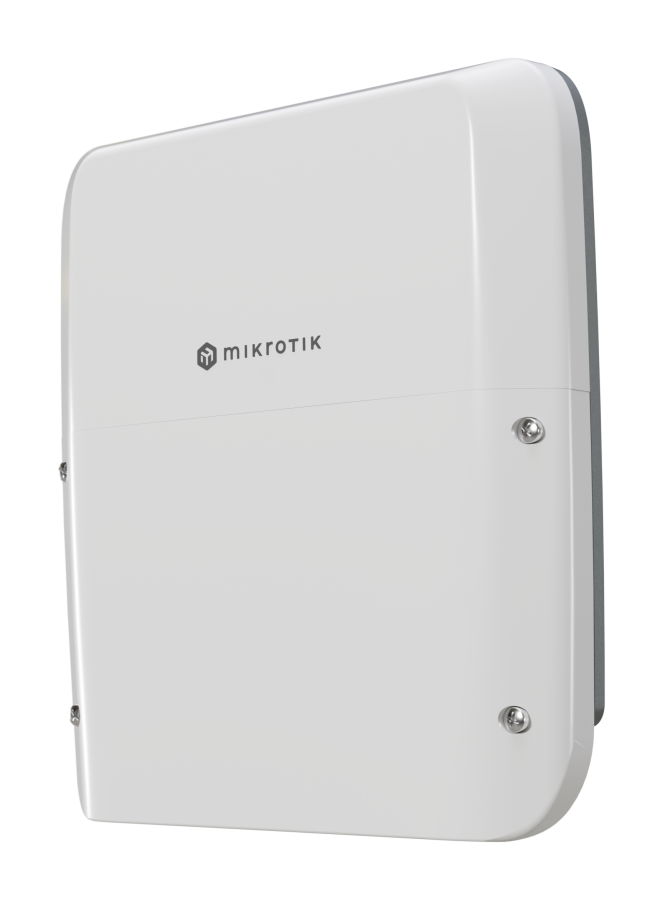

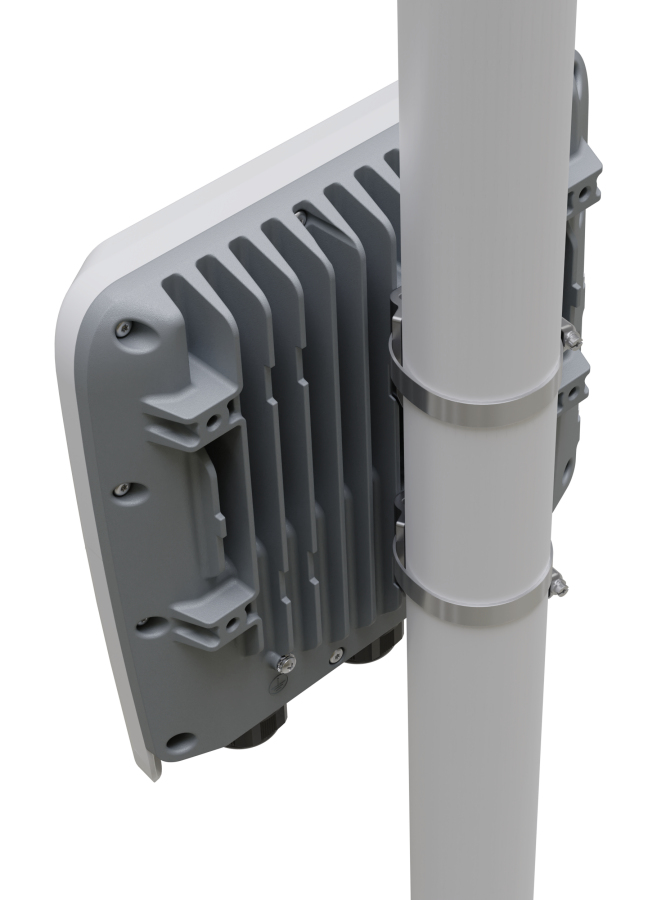

MikroTik RB5009UPr+S+OUT, is a high-performance and versatile PoE router suitable for challenging outdoor conditions. With its IP66-rated water and dust resistant casing, it is especially ideal for tower installations, ISP infrastructures, and remote field applications.

🔧 Technical Specifications

• İşlemci: Marvell Armada 88F7040, 4 cores, 1.4 GHz

• RAM1 GB

• Depolama: 1 GB NAND Flash

• Operating System: RouterOS v7 (L5 license)

• MTBF (Mean Time Between Failures): 200,000 hours

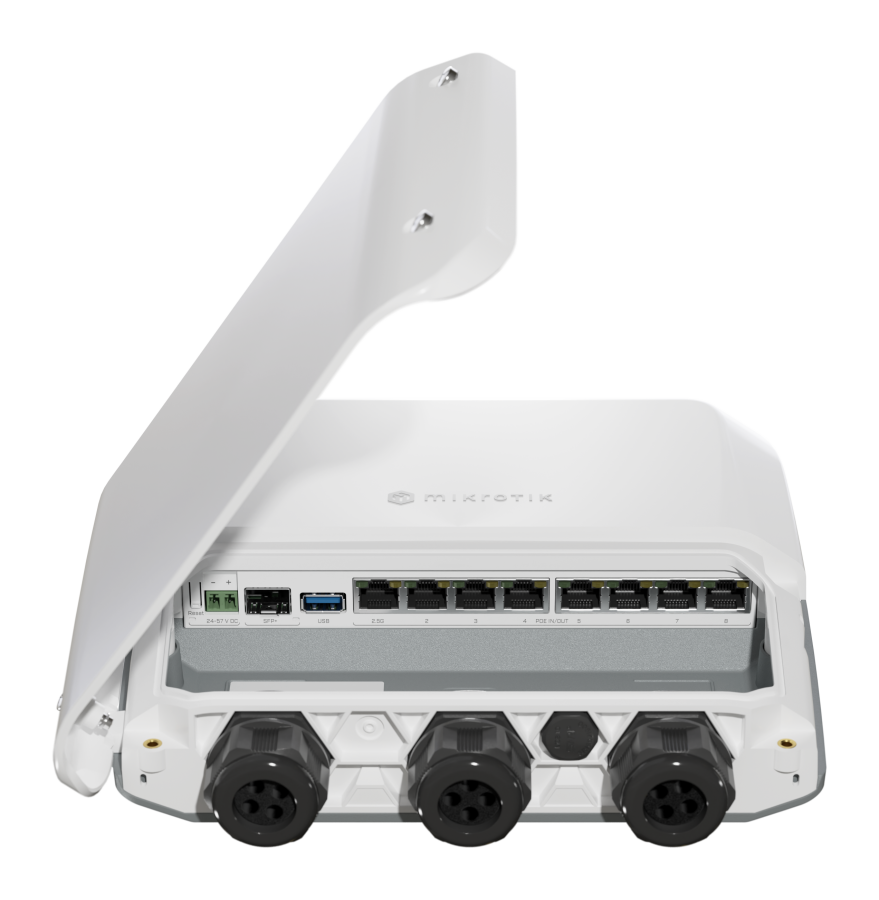

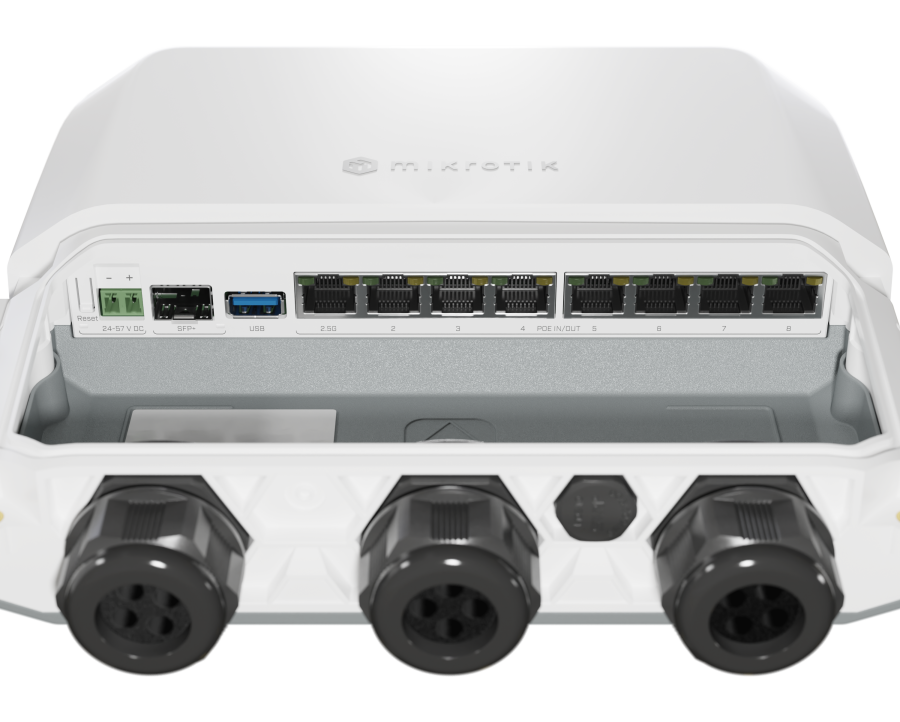

🌐 Ports

• Ethernet:

  • 7 × Gigabit Ethernet (RJ-45)

  • 1 × 2.5G Ethernet (RJ-45)

• Fiber:

  • 1 × 10G SFP+ slot

• USB:

  • 1 × USB 3.2 Gen 1 (Type-A)

⚡ Power and PoE Features

• Power Input:

  • PoE-in (802.3af/at) on all Ethernet ports

  • 2-pin DC power connector (24–57 V DC)

• PoE-out:

  • PoE-out support on all 8 Ethernet ports

  • Maximum 25 W per port, up to 130 W total output.

• Power Consumption:

  • Maximum 150 W

🛡️ Physical and Environmental Features

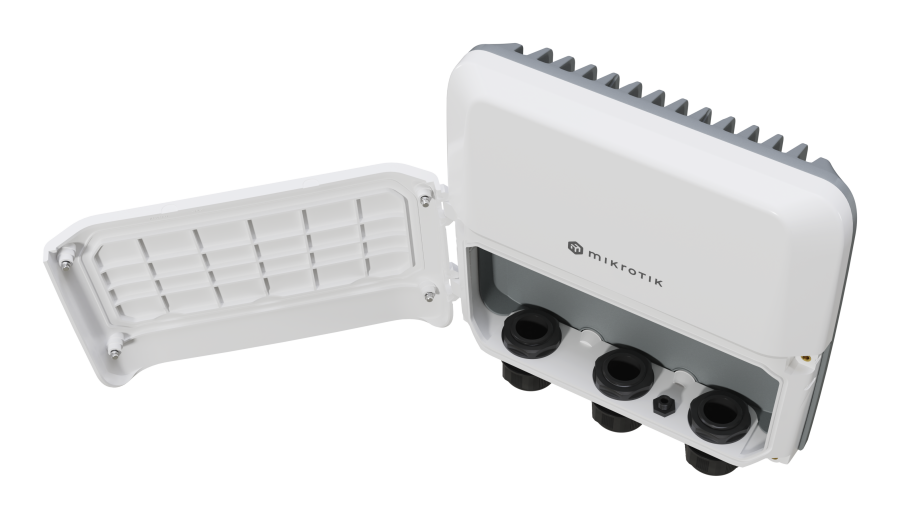

• Kasa: IP66 rated, water and dust resistant outdoor enclosure

• Boyutlar: 222 × 239 × 57 mm

• Operating Temperature: Between -40°C and +70°C

🔌 Reinforcement and Redundancy

The RB5009UPr+S+OUT offers 9 different power supply options. This allows the device to be powered from multiple sources simultaneously and automatically selects the highest voltage source to ensure uninterrupted operation.

📦 Box Contents

• RB5009UPr+S+OUT device

• Assembly accessories

• User manual

This device is an excellent solution for users seeking high performance and reliability in outdoor network installations. It is specifically designed for ISPs, tower installations, and remote field applications.
