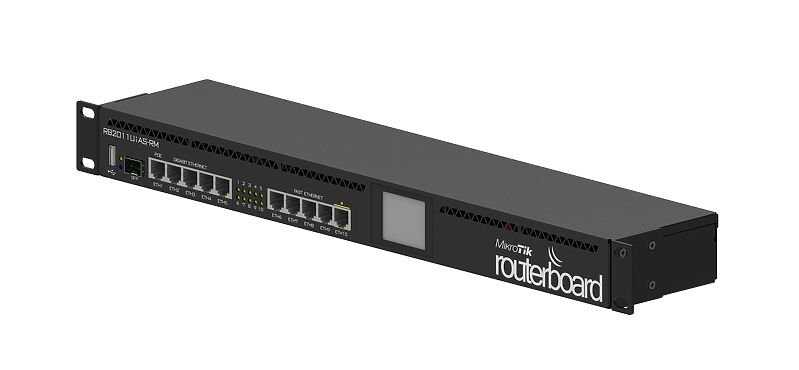

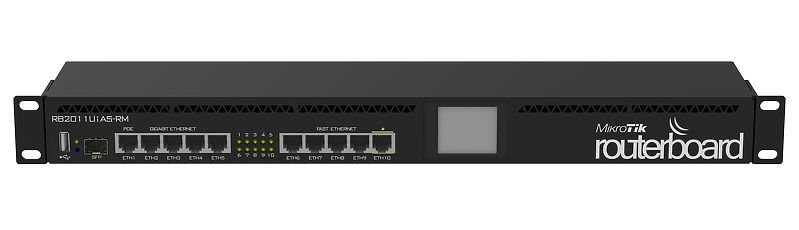

RB2011UiAS-RM

MikroTik RB2011UiAS-RM, The RouterBOARD series is a versatile and affordable router in the 1U rackmount form factor. This device, ideal for small and medium-scale networks, is equipped with a RouterOS L5 license and extensive connectivity options.

🔧 Technical Specifications

• İşlemci: Atheros AR9344, 600 MHz, single-core

• RAM: 128 MB DDR3

• Depolama: 128 MB NAND flash

• Ethernet Ports:

  • 5 x 10/100 Mbps Fast Ethernet

  • 5 x 10/100/1000 Mbps Gigabit Ethernet

• SFP Port: 1 x SFP (SFP module not included)

• USB Port: 1 x USB 2.0

• Serial Port: 1 x RJ45 serial port

• LCD Screen: Touch LCD screen

• PoE Output: PoE output up to 500 mA via Port 10

• Power Input: 8–30 V DC (PoE or DC jack)

• Power Consumption: Maximum 6 W

• Boyutlar: 214 mm x 86 mm (PCB)

• Operating Temperature: -40°C to +60°C

• Montaj: 1U rackmount, mounting kits included

⚙️ Features and Usage Areas

• RouterOS L5 License: It supports dynamic routing, VPN, hotspot, firewall, QoS, MPLS, and more.

• SFP Support: Expandable with SFP modules for fiber connections.

• PoE Output: Port 10 output over PoE can be used to power PoE-supported devices.

• USB Port: The USB 2.0 port can be used for external storage or 3G/4G modems.

• Serial Port: The device has an RJ45 serial port for configuration and maintenance.

📦 Box Contents

• RB2011UiAS-RM device

• 1U rackmount mounting kits

• 24V 0.8A power adapter

• User manual

🛠️ Compatible SFP Modules

RB2011UiAS-RM is compatible with the following MikroTik SFP modules (modules not included):

• S-85DLC05D– 1.25 Gbps, 850 nm, 550 m distance

• S-31DLC20D- 1.25 Gbps, 1310 nm, 20 km distance

• S-35/53LC20D- 1.25 Gbps, 1310 nm, 20 km distance
