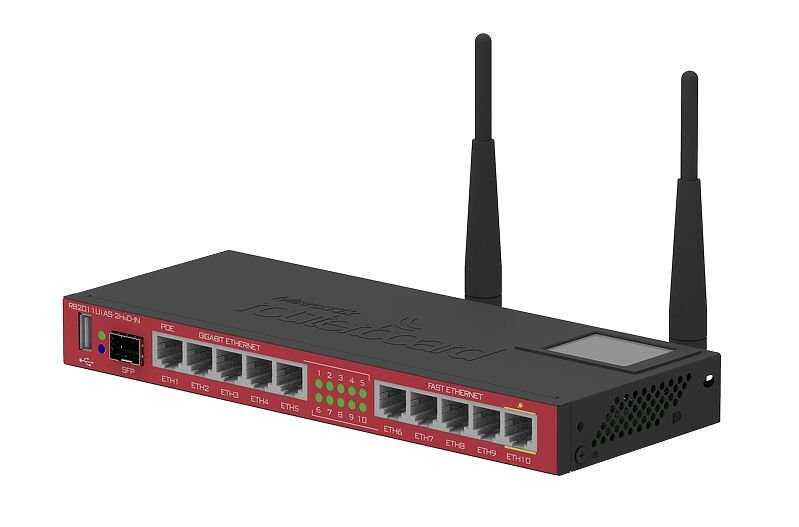

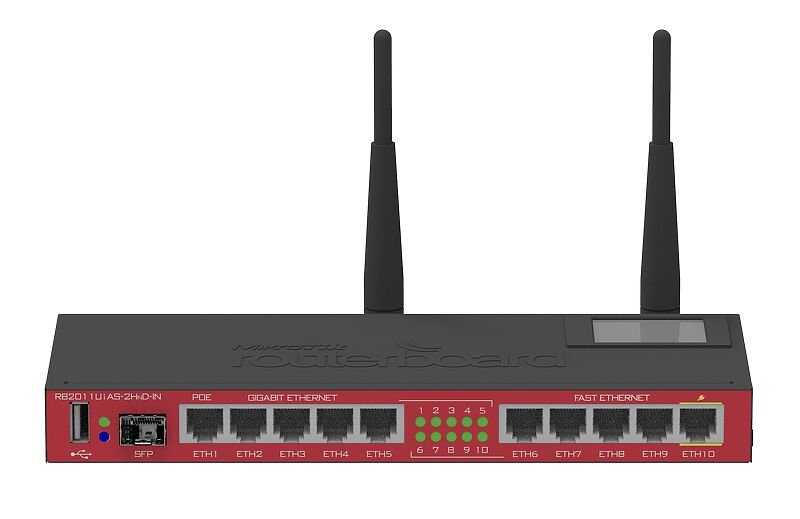

RB2011UiAS-2HnD-IN

MikroTik RB2011UiAS-2HnD-IN, The RouterBOARD series is a versatile and affordable model. This device, ideal for small and medium-scale networks, is equipped with a RouterOS L5 license and extensive connectivity options.

🔧 Technical Specifications

• İşlemci: Atheros AR9344, 600 MHz, 74K MIPS

• RAM: 128 MB DDR2 SDRAM

• Depolama: 128 MB NAND flash

• Ethernet Ports:

  • 5 x 10/100 Mbps Fast Ethernet

  • 5 x 10/100/1000 Mbps Gigabit Ethernet

• SFP Port: 1 x SFP (SFP module not included)

• USB Port: 1 x USB 2.0 (USB Type A)

• Serial Port: 1 x RJ45 serial port

• LCD Screen: Touch LCD screen

• PoE Output: PoE output up to 510 mA via Port 10

• Power Input: 8–30 V DC (PoE or DC jack)

• Power Consumption: Maximum 6 W

• Boyutlar: 230 x 90 x 25 mm

• Operating Temperature: -40°C to +60°C

• Assembly Options: Desktop or wall mount

📶 Wireless Features

• Frequency Band: 2.4 GHz (2312–2732 MHz, depending on country regulations)

• Standartlar: 802.11b/g/n

• Antenna Structure: 2 x 4 dBi omnidirectional antenna

• Maximum Data Rate: 300 Mbps

• Operating Mode: Access Point (AP)

⚙️ Features and Usage Areas

• RouterOS L5 License: It supports dynamic routing, VPN, hotspot, firewall, QoS, MPLS, and more.

• SFP Support: Expandable with SFP modules for fiber connections.

• PoE Output: Port 10 output over PoE can be used to power PoE-supported devices.

• USB Port: The USB 2.0 port can be used for external storage or 3G/4G modems.

• Serial Port: The device has an RJ45 serial port for configuration and maintenance.

📦 Box Contents

• RB2011UiAS-2HnD-IN device

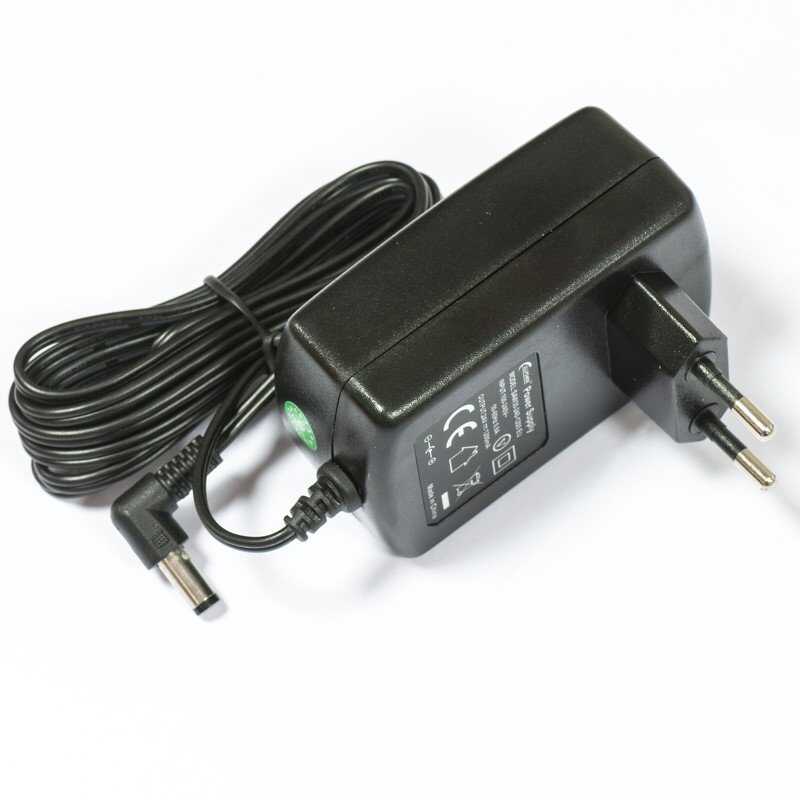

• Power adapter (24V 0.8A)

• 2 x 4 dBi omnidirectional antenna

• LCD screen

• User manual

🛠️ Compatible SFP Modules

RB2011UiAS-2HnD-IN is compatible with the following MikroTik SFP modules (modules not included):

• S-85DLC05D– 1.25 Gbps, 850 nm, 550 m distance

• S-31DLC20D- 1.25 Gbps, 1310 nm, 20 km distance

• S-35/53LC20D- 1.25 Gbps, 1310 nm, 20 km distance
