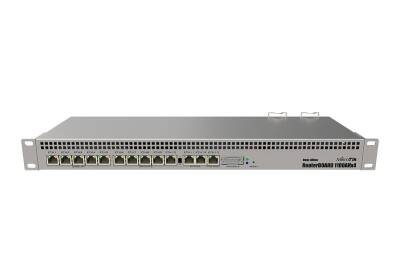

RB1100AHx4 DUDE

MikroTik RB1100AHx4 Dude Edition, the RouterBOARD series is a powerful and scalable 1U rackmount router. This model, specifically optimized for network management and monitoring, features integratedThe DudeIt comes with network management software support.

🔧 Technical Specifications

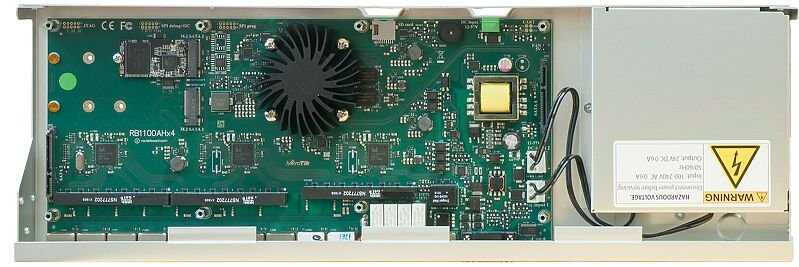

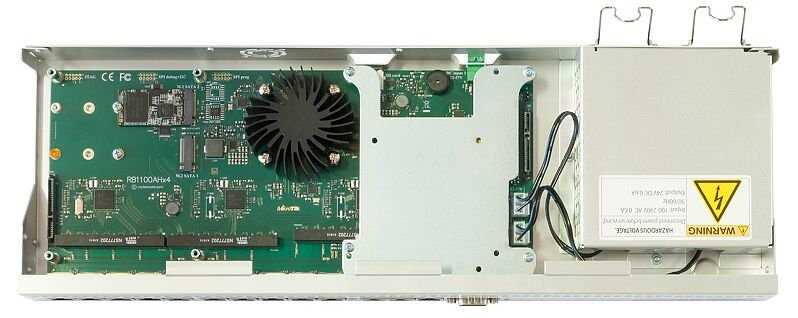

• İşlemci: Annapurna Labs Alpine AL21400, 4-core ARM Cortex-A15, 1.4 GHz

• RAM: 1 GB DDR3

• Depolama: 128 MB NAND flash + 60 GB M.2 SSD (for The Dude database)

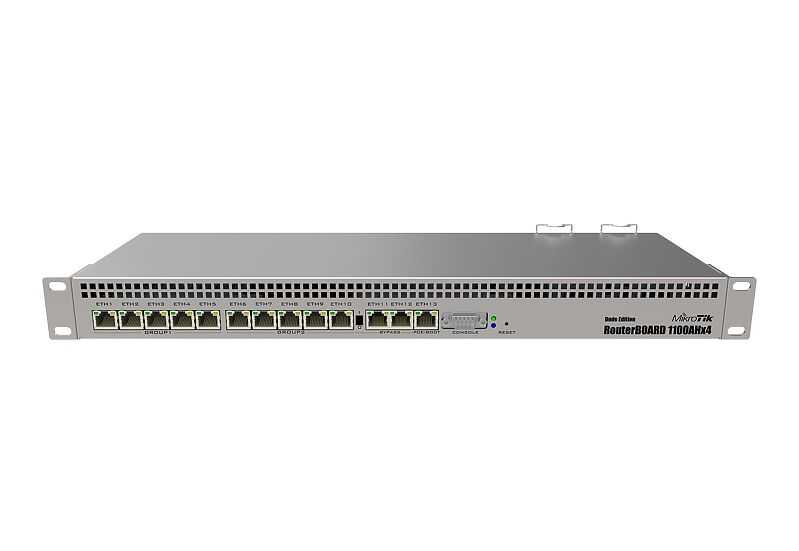

• Ethernet Ports: 13 x 10/100/1000 Mbps Gigabit Ethernet

• Network Switch Chip: Realtek RTL8367

• Serial Port: RS232

• Boyutlar: 443 x 148 x 44 mm

• Ağırlık: Approximately 1.2 kg

• Operating Temperature: Between -40°C and +70°C

• MTBF (Mean Time Between Failures): Approximately 200,000 hours

🔌 Power and Connection Features

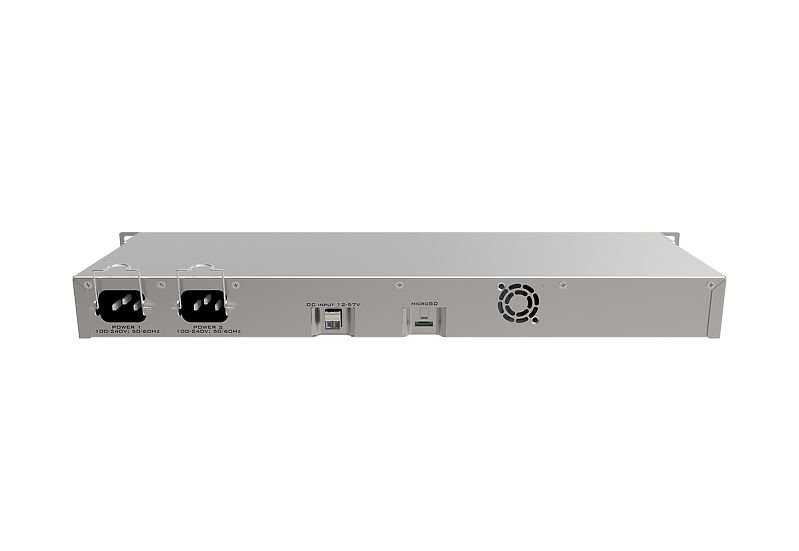

• Power Input:

  • 2 x IEC AC input (100–240 V)

  • 2 x 2-pin DC terminal (12–57 V, -48 V supported)

  • 802.3af/at PoE input support (20–57 V)

• Power Consumption: Maximum 33 W

• Redundant Power Supply: Evet

• Serial Port: RS232

📦 Box Contents

• 1 x MikroTik RB1100AHx4 Dude Edition device

• 1 x 1U rackmount mounting kit

• 2 x Power cable (IEC)

• 1 x Serial console cable

• 1 x User manual

💡 Notes

• The device offers redundant power sources for high reliability and expandable storage options.

• VPN performance has been improved with IPsec hardware acceleration support.

• The Dude software provides comprehensive tools for network monitoring and management.
