RB1100AHx4

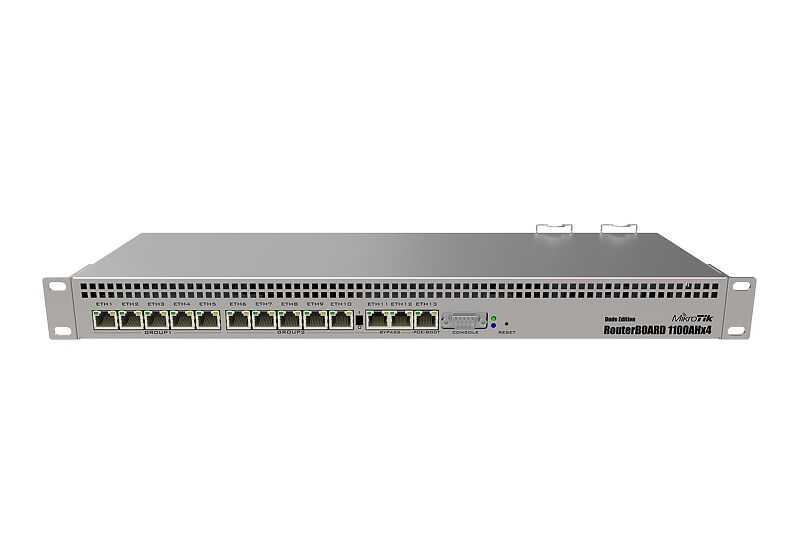

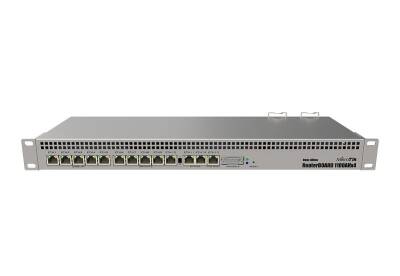

MikroTik RB1100AHx4, is a powerful 1U rackmount router, specifically designed for network infrastructures that require high performance and reliability. It features 13 Gigabit Ethernet ports, powerful hardware, and redundant power options.

🔧 Technical Specifications

• İşlemci: Annapurna Labs Alpine AL21400, 4-core ARM Cortex-A15, 1.4 GHz

• RAM: 1 GB DDR3

• Depolama: 128 MB NAND flash + 60 GB M.2 SSD (in Dude Edition model)

• Network Ports: 13 x 10/100/1000 Mbps Gigabit Ethernet

• Yazılım: RouterOS, License Level 6

• IPsec Hardware Acceleration: Up to 2.2 Gbps with AES128

• Boyutlar: 443 x 148 x 44 mm

• Ağırlık: Approximately 1.2 kg

• Operating Temperature: Between -40°C and +70°C

• MTBF (Mean Time Between Failures): Approximately 200,000 hours

🔌 Power and Connection Features

• Power Input:

  • 2 x IEC AC input (100–240 V)

  • 2 x 2-pin DC terminal (12–57 V, -48 V supported)

  • 802.3af/at PoE input support (20–57 V)

• Power Consumption: Maximum 20 W

• Redundant Power Supply: Evet

• Serial Port: RS232

🛠️ Storage and Scalability

• Storage Connections:

  • 2 x SATA

  • 2 x M.2 SATA 3.0

• Storage Area:

  • 128 MB NAND flash

  • 60 GB M.2 SSD (in Dude Edition model)

• Areas of Use:

  • The Dude network management software database

  • Proxy cache

  • Other storage intensive applications

📦 Box Contents

• 1 x MikroTik RB1100AHx4 device

• 1 x 1U rackmount mounting kit

• 2 x Power cable (IEC)

• 1 x Serial console cable

• 1 x User manual

💡 Notes

• The Dude Edition comes pre-installed with a 60 GB M.2 SSD.

• The device offers redundant power sources for high reliability and expandable storage options.

• VPN performance has been improved with IPsec hardware acceleration support.
