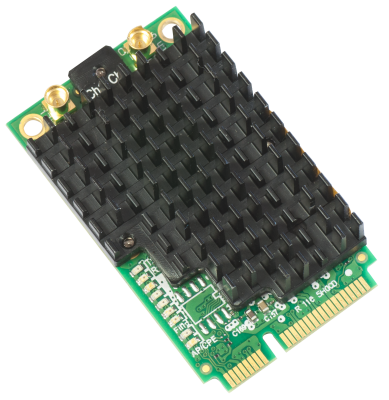

MikroTik R11e-5HacDis a high-power 5 GHz wireless adapter card designed in the miniPCI-e form factor. This card, which supports the 802.11ac standard, has been specifically developed to be compatible with RouterBOARD devices (RB953, RB912, RB922, RB800) and x86 systems running RouterOS. It is suitable for both indoor and outdoor applications.
| Product Code | R11e-5HacD |
| Wireless Standards | 802.11a/n/ac (Wi-Fi 5) |
| Maximum Data Rate | 867 Mbps (AC900) |
| Frequency Range | 4920–6100 MHz (may vary depending on country regulations) |
| Channel Widths | 20 / 40 / 80 MHz |
| Anteni | 2x MMCX connector (2x2 MIMO) |
| Çipset | Qualcomm Atheros QCA9882 |
| Output Power | 27 dBm (500 mW) |
| Receiver Sensitivity | -96 dBm (MCS0), -77 dBm (MCS7), -72 dBm (MCS9) |
| Power Consumption | Maximum 4.5 W |
| Depolama | 4 KB Flash |
| Boyutlar | 50 x 30 x 13 mm |
| Operating Temperature | Between -40°C and +70°C |
| Sertifikalar | FCC, IC |
| LED Indicators | Wireless mode, connection status, TX/RX activity, signal strength |
Integration with RouterBOARD devices:It works compatibly with devices such as RB953, RB912, RB922, RB800.
Usage on x86 systems:On x86 systems with RouterOS installed, it can be used via the miniPCI-e slot.
Indoor and outdoor applications:Thanks to its IP55 protection class, it can be safely used in various environmental conditions.
Applications requiring high bandwidth:It is effective in applications such as video streaming, VoIP, and high-speed data transfer with data speeds of up to 867 Mbps.
LED Indicators:With the LEDs on the card, you can easily monitor information such as wireless mode, connection status, data transfer, and signal strength.
ESD Protection:It increases the device's safety by providing protection against electrostatic discharges.
Uyumluluk:It offers wide compatibility with devices that have a miniPCI-e slot.
The MikroTik R11e-5HacD is an ideal option for users seeking a high-performance and reliable wireless connection solution. You can create a flexible and powerful wireless network infrastructure, especially thanks to its integration with RouterBOARD devices and systems with RouterOS installed.
