MikroTik PL7510Gi PWR-LINE PROIt is a high-speed Powerline adapter designed to extend network connectivity using your existing electrical wiring. This device is ideal for providing a stable and fast connection, especially in areas where cable installation is difficult or Wi-Fi signals are weak.
Product Code: PL7510Gi
PLC Chipset: QCA7550
RAM: 16 MB
Depolama: 4 MB Flash
Ethernet Port: 1 x 10/100/1000 Mbps RJ45
PoE Output: 24 V Passive PoE (max. 350 mA)
Maximum Power Consumption: 14 W (when PoE is active), 5 W (when PoE is off)
Boyutlar: 94 x 105 x 32 mm
Operating Temperature: -40°C to +60°C
Supported Standard: HomePlug AV2
Power Input: 100–240 V AC, 50/60 Hz
High-Speed Data Transfer: It provides data transmission speeds of up to 600 Mbps over the powerline.
Easy Installation: It offers quick installation with plug-and-play functionality without requiring any software or configuration.
PoE Support: You can power another MikroTik device via the Ethernet port with 24V Passive PoE.
Genişletilebilirlik: You can expand your network with up to 8 PWR-LINE devices on the same electrical phase.
Uyumluluk: It delivers the best performance with the PL75xx series products; it is also backward compatible with the PL64xx and PL74xx series.
Grounding Requirement: It is recommended to use a grounded outlet for maximum performance.
Kurulum: Plug the device into an outlet and connect the Ethernet port to the LAN port of your MikroTik router. You can extend the connection by plugging a second PWR-LINE PRO device into another outlet on the same phase.
Eşleştirme: You can perform the pairing process using the "SYNC" button on the devices.

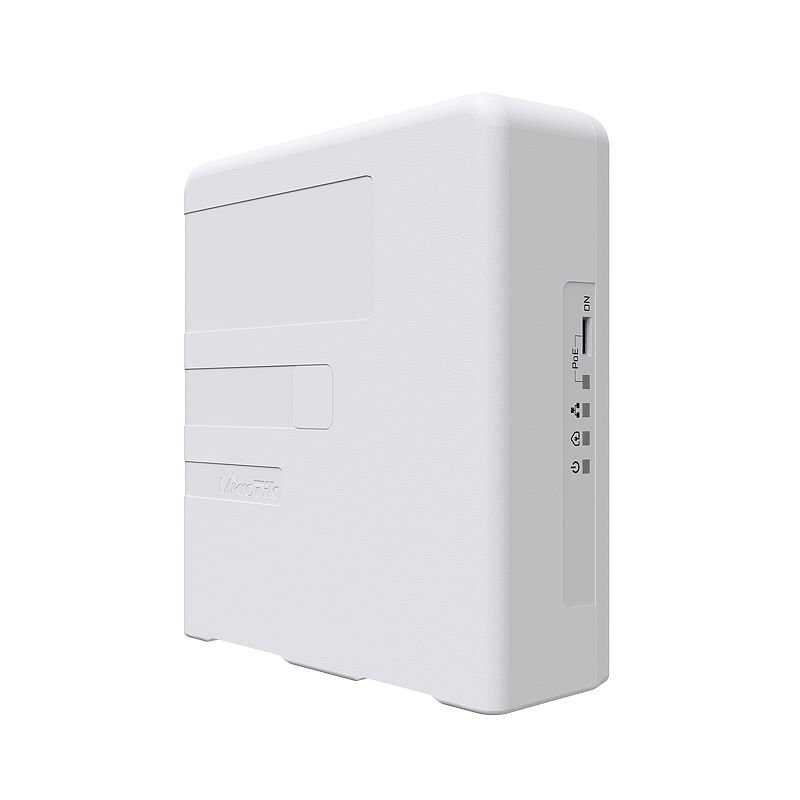

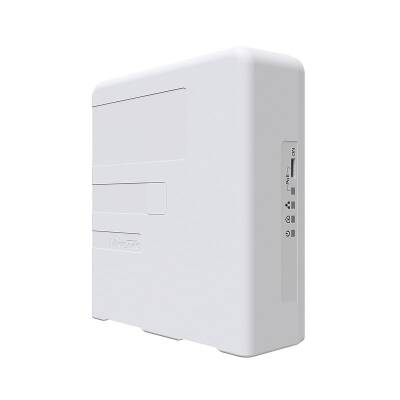

LED Indicators:
Blue LED: It indicates that the device is operating.
Yellow LED: It indicates the pairing status; if it is blinking, it is in pairing mode.
Green LED: It indicates the Ethernet connection.
Red LED: Indicates that the PoE output is active.
