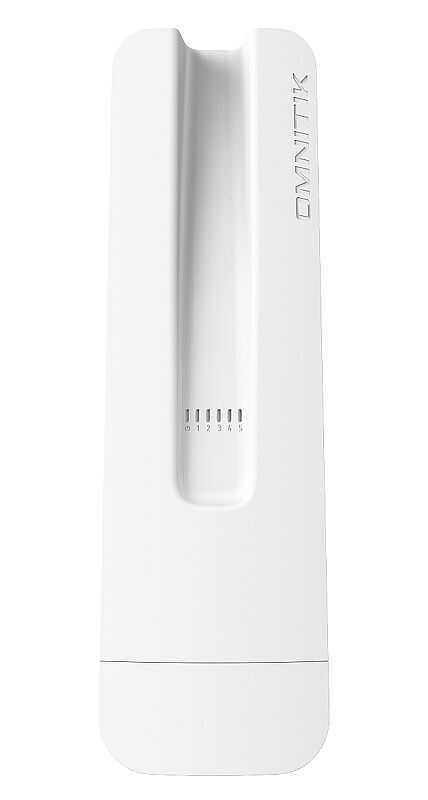

MikroTik OmniTIK 5 ac(model code:RBOmniTikG-5HacD), it is an outdoor wireless access point operating in the 5 GHz band, equipped with integrated 7.5 dBi dual-polarized omni antennas. It offers high-speed wireless connections thanks to 802.11ac support and is ideal for providing wireless network coverage, especially in large areas.
İşlemci: QCA9557, 720 MHz, 1 core
RAM: 128 MB
Depolama: 16 MB Flash
Operating System: RouterOS (License Level 4)
Boyutlar: 416 x 129 x 58 mm
Operating Temperature: Between -40°C and +70°C
MTBF: Approximately 200,000 hours @ 25°C
IP Protection Class: IP54
Frequency Band: 5150 MHz – 5875 MHz (may vary depending on country regulations)
Wireless Standards: 802.11a/n/ac (Wi-Fi 5), 2x2 MIMO
Maximum Data Rate: 867 Mbps
Antenna Gain: 7.5 dBi (360° coverage)
Wireless Chipset: QCA9892
| Modülasyon | Output Power (dBm) | Purchase Sensitivity (dBm) |
|---|---|---|
| 6 Mbps | 31 | -96 |
| 54 Mbps | 27 | -81 |
| MCS0 | 30 | -96 |
| MCS7 | 27 | -77 |
| MCS9 | 22 | -72 |

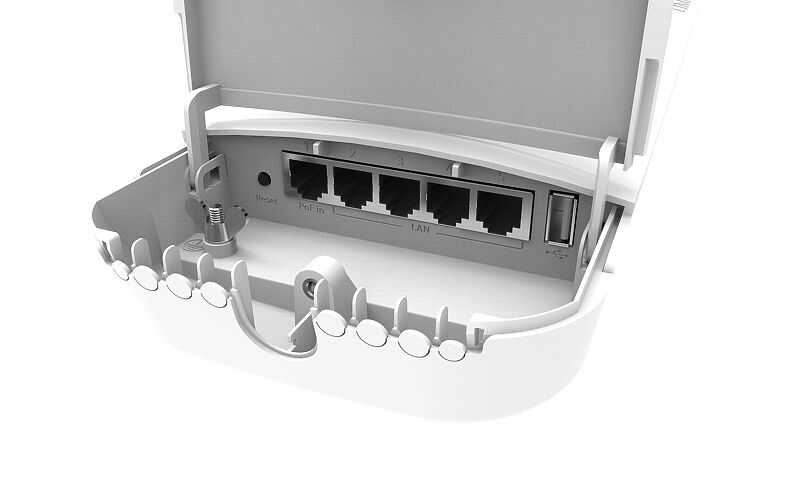

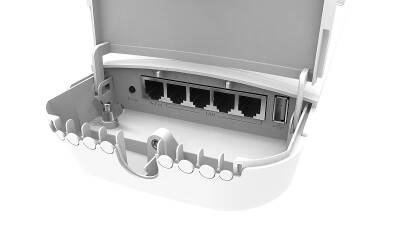

Ethernet Ports: 5 x 10/100/1000 Mbps Gigabit Ethernet
USB Port: 1 x USB 2.0 Type-A (for example, for 3G/4G modem)
Power Input: 12–57 V Passive PoE (via Ether1)
Maximum Power Consumption:14 W
Soğutma: Pasif
LED Indicators: Power, Ethernet, and wireless signal level LEDs.
Ekstralar: Reset button, beeper, USB power reset

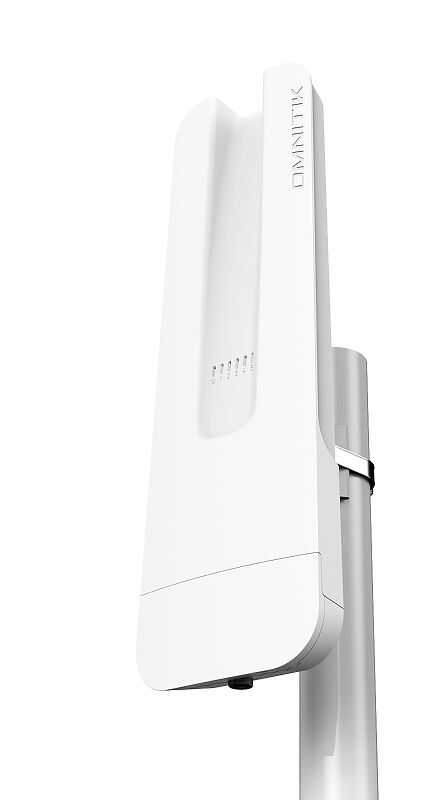

Montaj: Integrated mounting ring and hose clamp for direct installation.
Package Contents:
OmniTIK 5 ac device
24V 0.8A power adapter
Gigabit PoE injector
Assembly apparatus
