L23UGSR-5HaxD2HaxD-NM

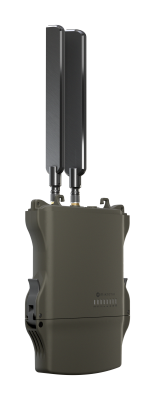

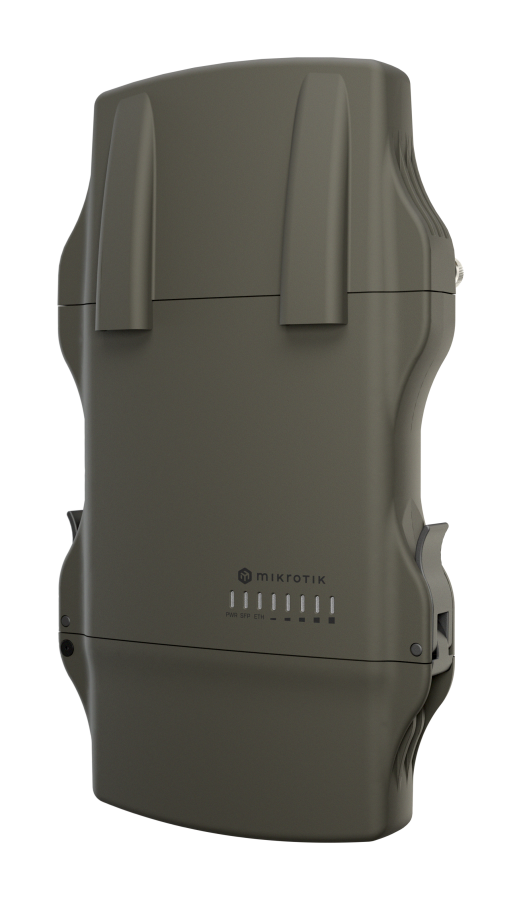

MikroTik L23UGSR-5HaxD2HaxD-NM (NetMetal ax) is a high-performance, modular access point designed for outdoor use, supporting Wi-Fi 6. It offers reliable performance in harsh environmental conditions thanks to its robust IP66 certified housing.

⚙️ Technical Specifications

• Product Code: L23UGSR-5HaxD2HaxD-NM

• İşlemci: Qualcomm IPQ-5010, dual-core, 800 MHz

• Mimari: ARM

• RAM: 256 MB DDR3L

• Depolama: 128 MB NAND Flash

• Operating System: RouterOS v7 (License Level 4)

• MTBF: Approximately 200,000 hours @25°C

• Operating Temperature: Between -40°C and +70°C

• IP Protection Class: IP66

• Sertifikalar: CE, FCC, IC, EAC, ROHS

🔌 Power and Connection

• DC Input Voltage: 12–28 V

• PoE Input Voltage: 18–28 V (Passive PoE)

• Maximum Power Consumption:25 W

• Soğutma: Pasif

📡 Wireless Features

• 2.4 GHz Band:

  • Standartlar: 802.11b/g/n/ax

  • Maximum Data Rate: 574 Mbps

  • Chain Count: 2

  • Chipset: IPQ-5010

• 5 GHz Band:

  • Standartlar: 802.11a/n/ac/ax

  • Maximum Data Rate: 2400 Mbps

  • Chain Count: 2

  • Chipset: QCN-6102

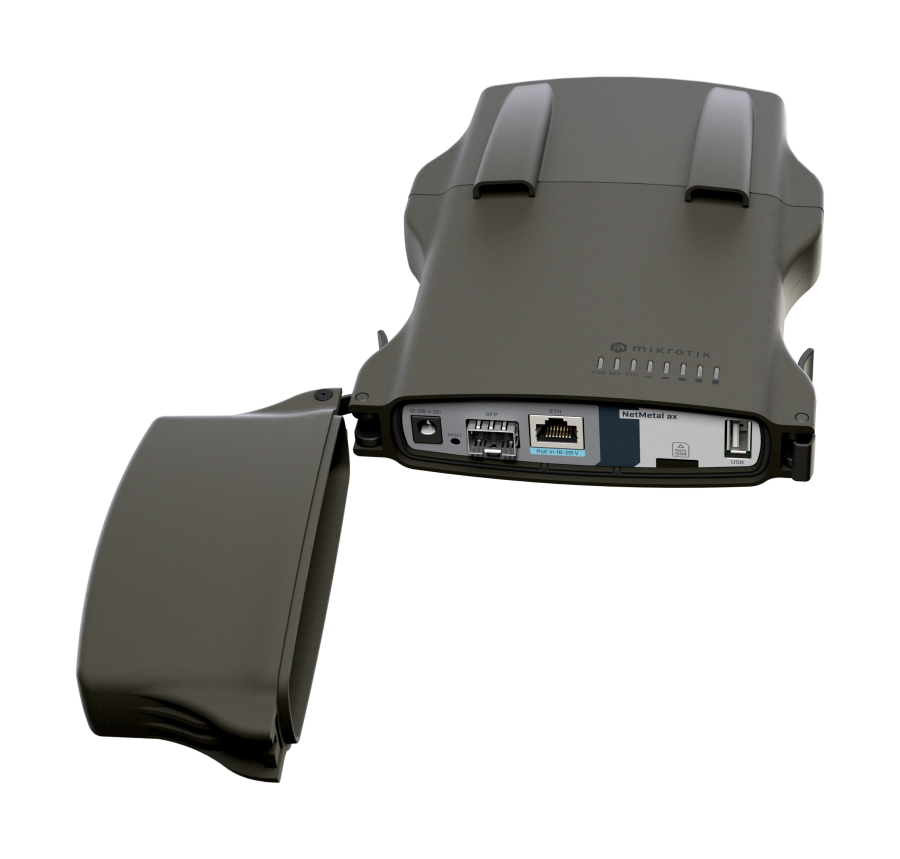

🔗 Ports and Expansion

• Ethernet: 1 x 10/100/1000 Mbps (Gigabit Ethernet)

• SFP: 1 x 2.5 Gbps supported SFP port

• USB: 1 x USB Type-A (1.5A supported)

• MiniPCIe: 1 x MiniPCIe slot (for LTE or LoRa cards)

• SIM Slot: 1 x NanoSIM (for LTE modems)

🧭 Additional Features

• PCB Temperature Monitor: Var

• Voltage Monitor: Var

• Buzzer: Var

📦 Box Contents

• 1 x L23UGSR-5HaxD2HaxD-NM device

• 1 x Mounting apparatus

• 1 x Power adapter

• 1 x PoE injector

• 1 x Antenna connection cable
