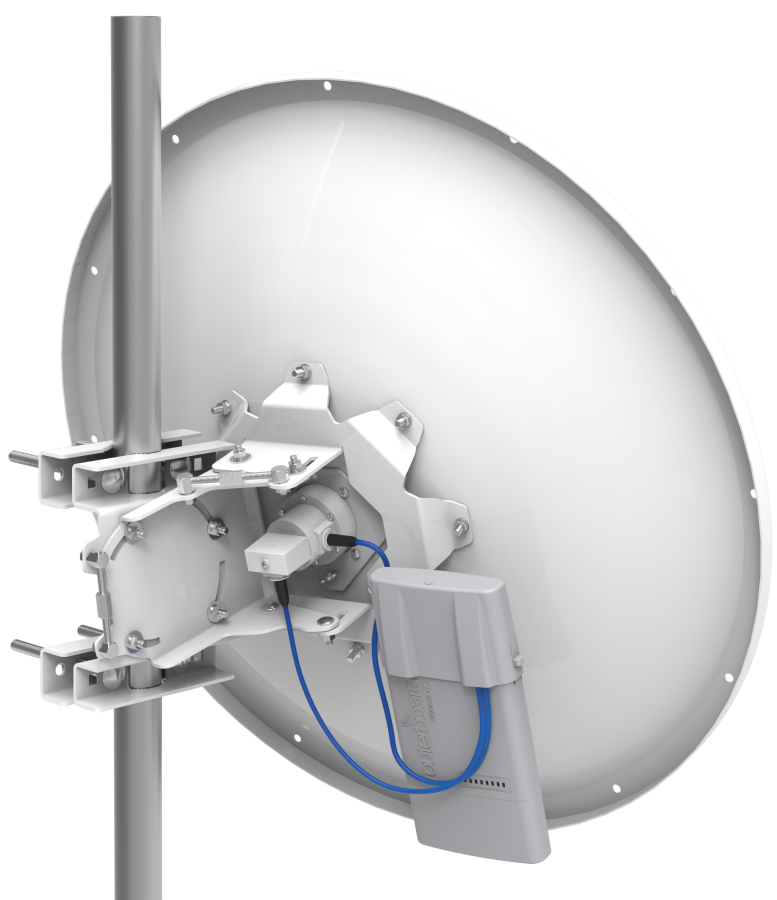

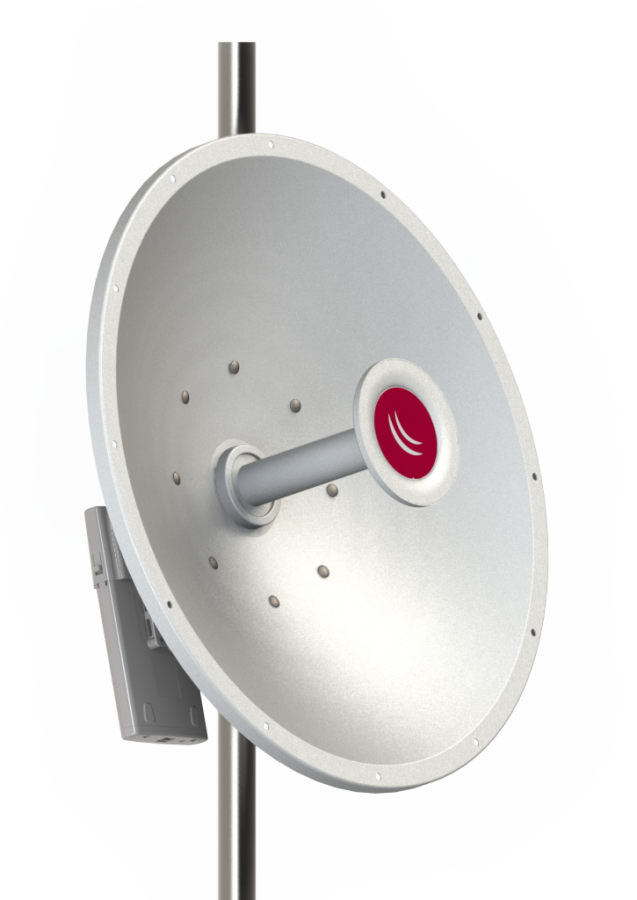

MikroTik MTAD-5G-30D3-PA is a professional-grade parabolic dish antenna offering 30 dBi gain in the 5 GHz band. This antenna is specifically designed for high-performance point-to-point (P2P) connections and comes with a precision alignment mount.
Frequency Range: 4.7 – 5.875 GHz
Kazanç: 30 dBi (typical)
Polarizasyon: Dual (Vertical and Horizontal)
3 dB Beamwidth: ±2.5°
Front-Back Ratio:30 dB
Cross Polarization Isolation:40 dB
VSWR: ≤1.4 (typical), ≤1.8 (maximum)
Empedans: 50 ohm
Connection Type: 2x RP-SMA female (external thread)
Loading Angle Adjustment±15°
Dimensions (Diameter x Depth): 70 x 45 cm
Ağırlık: 8.4 kg
Operating Temperature: -50°C to +80°C
Outdoor Certificate: ETSI EN 300 019-2-4
Package Size: 73 x 73 x 20 cm
Package Weight: 8.4 kg
Mounting Type: Precision alignment mount
FlexGuide RF Cables: 2 pieces of RP-SMA male to RP-SMA male cable
BaseBox Assembly Fixture: Bracket for direct mounting of BaseBox series devices
Self-Adhesive Tapes: To insulate the RF cables, 2 pieces
Precision Alignment Mechanism: In the PA version, additional features for precise alignment.
High Performance P2P Connections: It is ideal for long-distance, high-speed connections.
Bridge Connections: It offers high gain and narrow beam width for bridge connections.
Fixed Links: Suitable for stable and reliable connections.
