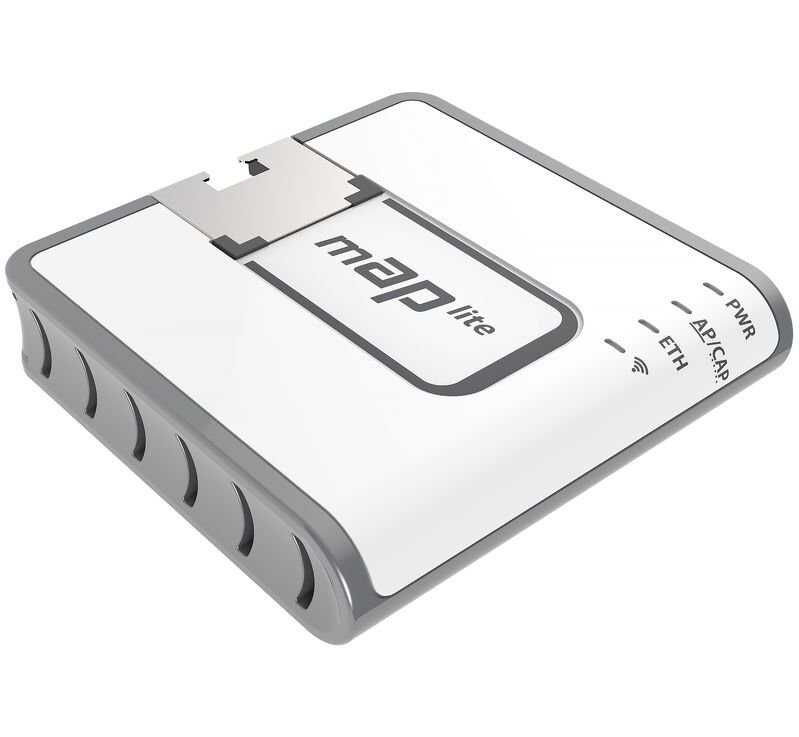

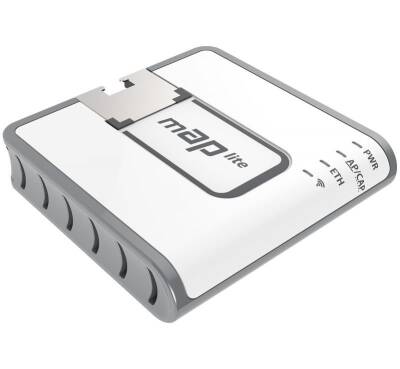

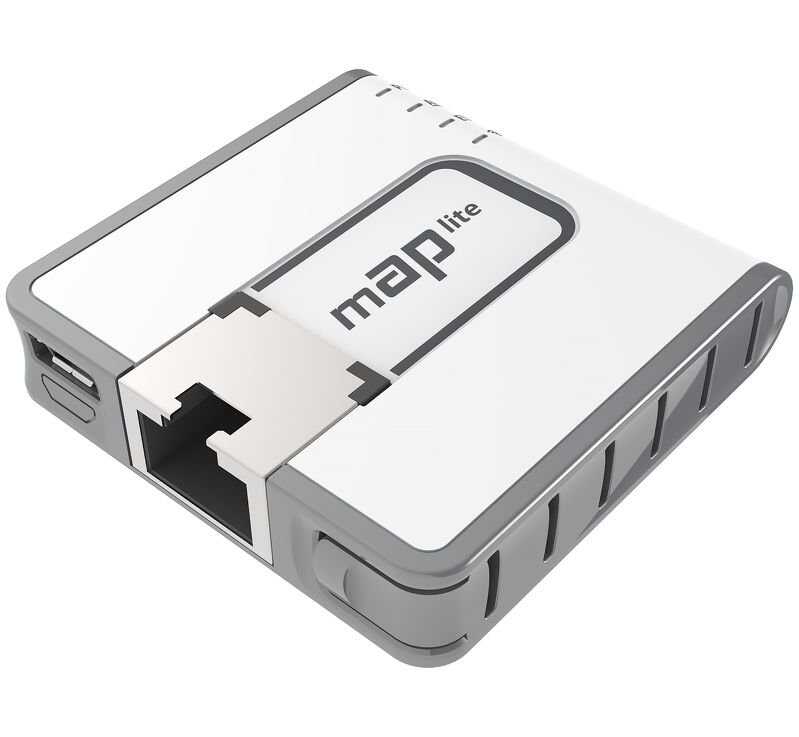

mAP L-2nD (AB) mAP lite

MikroTik mAP lite(model code: RBmAPL-2nD), is MikroTik's smallest wireless access point. This device, which is slightly larger than a matchbox, is ideal for portability and compact network solutions during travels.

📡 Wireless Features

• Frequency Band: 2.4 GHz

• Wireless Standards: 802.11b/g/n (Wi-Fi 4)

• Maximum Data Rate: 300 Mbps

• MIMO: 2x2 (double stranded)

• Antenna Gain: 1.5 dBi (integrated antenna)

• Wireless Chipset: Qualcomm Atheros QCA9533

• Transmitter Power / Receiver Sensitivity:

  • 1 Mbit/s: 22 dBm / -96 dBm

  • 11 Mbit/s: 22 dBm / -89 dBm

  • 6 Mbit/s: 20 dBm / -93 dBm

  • 54 Mbit/s: 18 dBm / -74 dBm

  • MCS0: 20 dBm / -93 dBm

  • MCS7: 16 dBm / -71 dBm

⚙️ Hardware Specifications

• İşlemci: Qualcomm Atheros QCA9533, 650 MHz, single-core

• RAM: 64 MB

• Depolama: 16 MB Flash

• Ethernet Ports: 1 x 10/100 Mbps Fast Ethernet

• Boyutlar: 48 x 49 x 11 mm

• Soğutma: Pasif

• Operating Temperature: -30°C to +70°C

• MTBF: Approximately 100,000 hours @25°C

🔌 Power and Connection

• Power Input:

  • MicroUSB (5V)

  • PoE (802.3af/at) 10–60V

• Maximum Power Consumption: 3.5 W

• PoE Support: 802.3af/at standard

🧰 Software and Management

• Operating System: MikroTik RouterOS (License Level 4)

• Management Features: Central AP management with CAPsMAN support, bandwidth control, firewall, user access control, and other RouterOS features

• Default IP: 192.168.88.1 (Username: admin, password: none)

📦 Box Contents

• RBmAPL-2nD device

• 5V 1A power adapter

• K-44 assembly kit

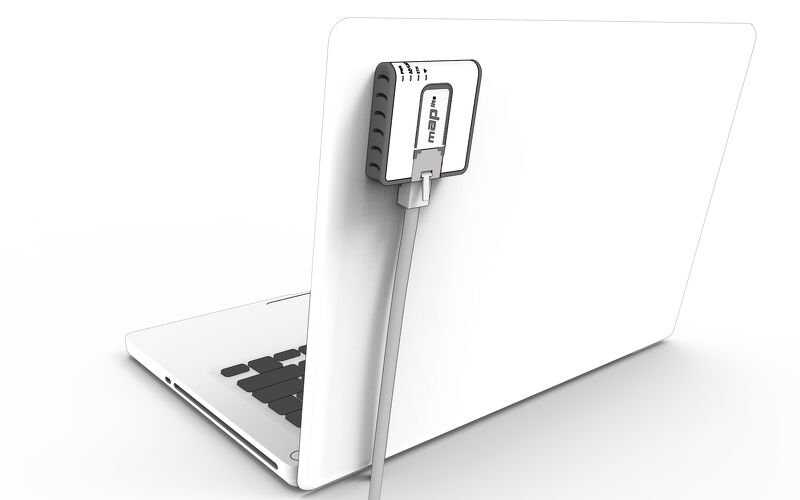

🎯 Areas of Use

mAP lite can be used as a simple configuration tool for spreading hotel internet to all devices during travels, increasing the signal range of a laptop, or for servers when there is no ethernet connection on mobile devices. Its compact size and portability offer flexible usage possibilities in various environments.
