RB911G-2HPnD-12S MANTBOX 2 12S

MikroTik mANTBox 2 12s(model code:RB911G-2HPnD-12S), it is an outdoor wireless access point with an integrated 12 dBi 120° sector antenna, operating in the 2.4 GHz frequency band, and has high output power. This device is specifically designed for wide area coverage needs and comes with the RouterOS operating system.

📡 Technical Specifications

• Model Code: RB911G-2HPnD-12S

• İşlemci: AR9342, 600 MHz

• RAM: 64 MB

• Depolama: 128 MB NAND Flash

• Operating System: RouterOS (License Level 4)

• Boyutlar: 140 x 348 x 82 mm

• Operating Temperature: Between -40°C and +70°C

• MTBF: Approximately 100,000 hours @25°C

• Sertifikalar: CE, FCC, IC, EAC, ROHS

• IP Protection Class: IP54

🌐 Wireless Features

• Frequency Band: 2.4 GHz (2412 - 2484 MHz)

• Wireless Standards: 802.11b/g/n (Wi-Fi 4)

• Maximum Data Rate: 300 Mbps

• MIMO: 2x2 (Dual Chain)

• Antenna Gain: 12 dBi

• Antenna Type: 120° sectoral, dual-polarized (vertical and horizontal)

• Output Power: Maximum 30 dBm

• Purchase Sensitivity:

  • 1 Mbps: -100 dBm

  • 11 Mbps: -94 dBm

  • 6 Mbps: -96 dBm

  • 54 Mbps: -78 dBm

  • MCS0: -96 dBm

  • MCS7: -73 dBm

🔌 Power and Connection

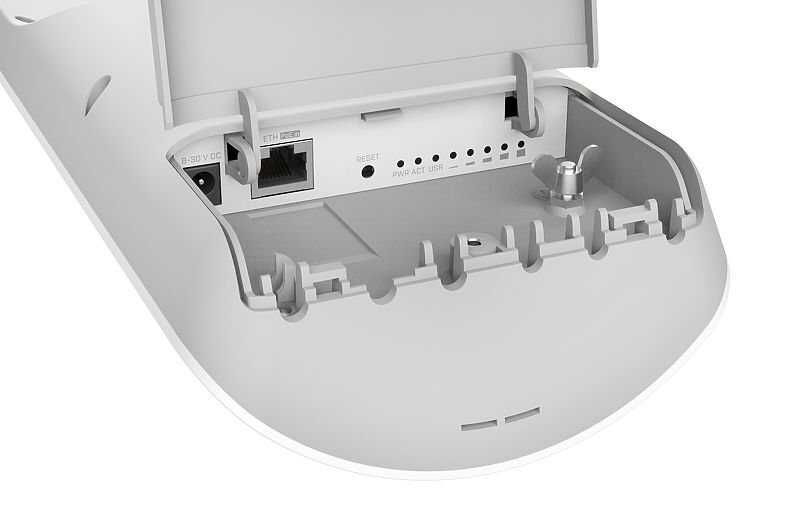

• Ethernet Port: 1 x 10/100/1000 Mbps (Gigabit Ethernet)

• Power Input: 8–30 V DC jack or 10–28 V Passive PoE

• Maximum Power Consumption:11 W

• Soğutma: Pasif

🎯 Usage Scenarios

• Point to Multipoint (PtMP) Connections: It is ideal for serving multiple clients over wide areas.

• Internet Access in Rural Areas: It is an effective solution for providing internet access in rural areas.

• Wireless Internet Service Providers (WISP): It is a suitable base station solution for wireless internet service providers.

📦 Box Contents

• mANTBox 2 12s device

• 24V 0.8A power adapter

• Gigabit PoE injector

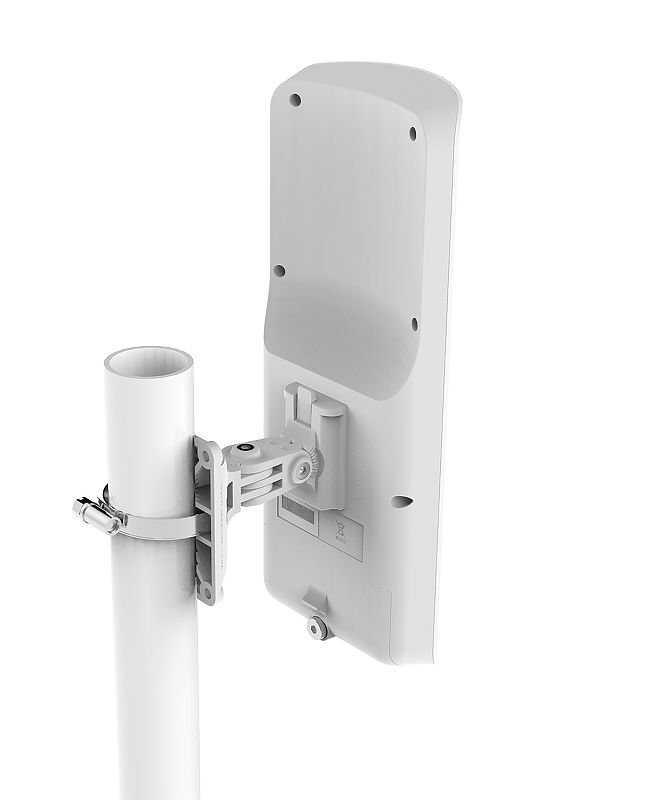

• quickMOUNT PRO mounting device

• Metal ring and K-41 assembly set
