LHGGM&EG18-EA

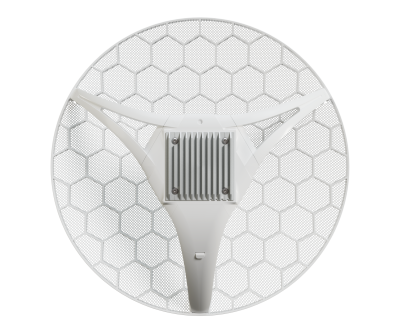

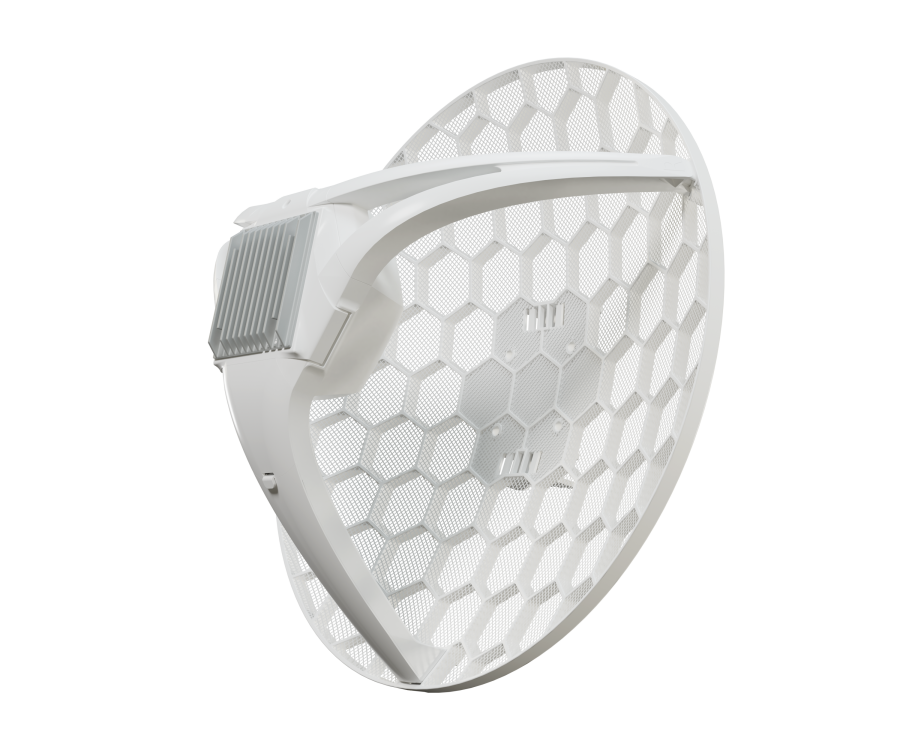

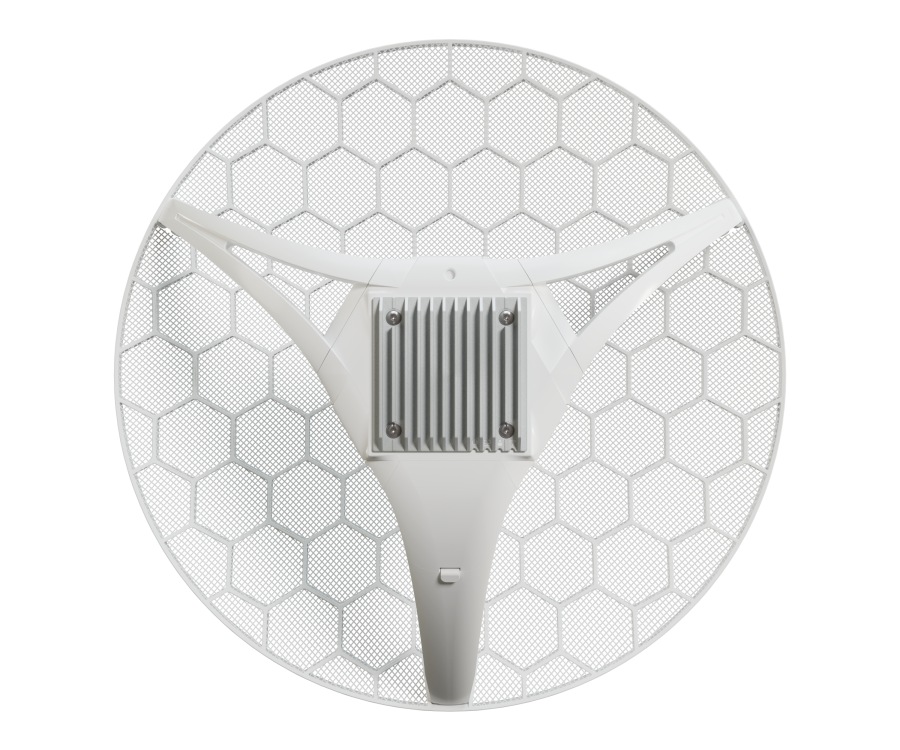

MikroTik LHG LTE18 Kit (model code:LHGGM&EG18-EA), it is an LTE CPE (Customer Premises Equipment) device designed to provide high-speed internet connection over long distances. Especially in rural areas or regions with limited mobile data infrastructure, it provides stable and fast connectivity thanks to the LTE Cat18 modem and 17 dBi high-gain antenna.​

🔧 Technical Specifications

• Product Code: LHGGM&EG18-EA

• İşlemci: Marvell 88F3720, 800 MHz, dual-core ARM 64-bit CPU

• RAM: 256 MB

• Depolama: 16 MB Flash

• Ethernet Port: 1 x 10/100/1000 Mbps Gigabit Ethernet (RJ45)

• LTE Modem: R11mL-EG18-EA (LTE Cat18, 1.2 Gbps download, 150 Mbps upload)

• LTE Band Support:

  • FDD LTE: Bands 1, 3, 5, 7, 8, 20, 28, 38, 40, 41

  • 3G: Bands 1, 3, 5, 8

• SIM Card Slot: 1 x Micro SIM

• Anten: 17 dBi high gain, grid type antenna

• PoE Support: 802.3af/at (12–57 V DC)

• Maximum Power Consumption: 8 W

• Boyutlar: 391 x 391 x 227 mm

• Ağırlık: Approximately 1.6 kg

• Operating Temperature: -40°C to +70°C

• Operating System: RouterOS v7, Level 3 license

• MTBF (Mean Time Between Failures): Approximately 200,000 hours (in a 25°C environment)​

📦 Included in the Package

• LHG LTE18 device

• 24 V, 0.8 A PoE adapter

• PoE injector

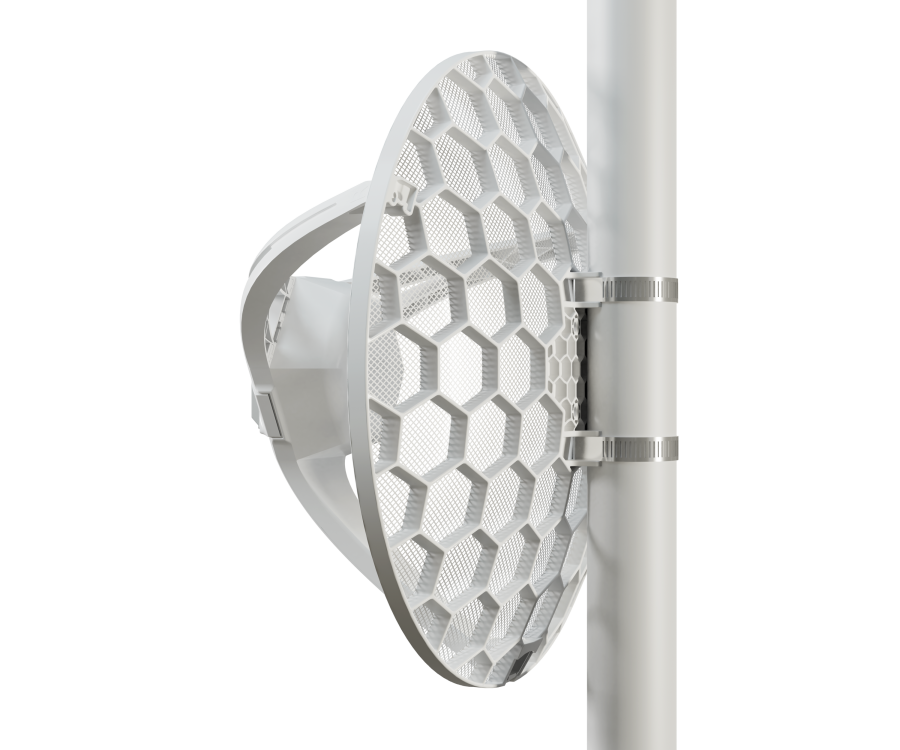

• Assembly kit (2 clamps)

• Grounding cable

• 5° angle adapter​

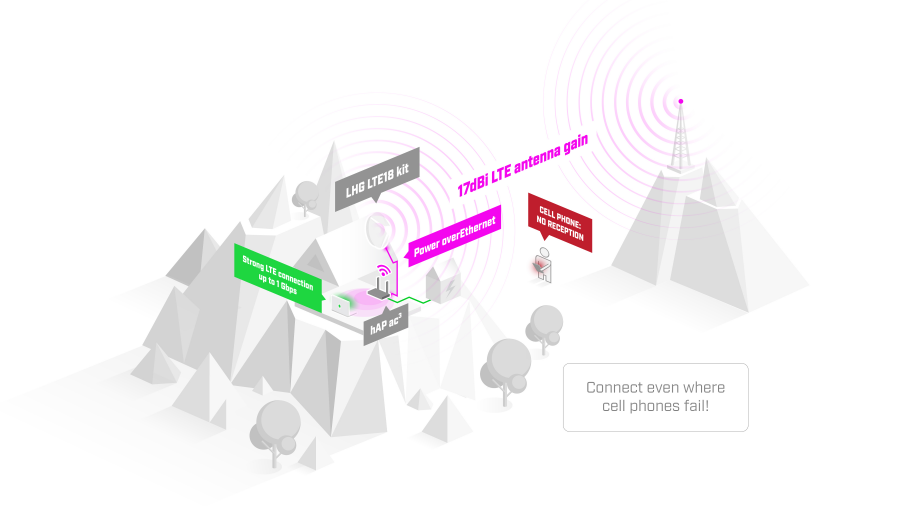

🌐 Areas of Use

• Internet Connection in Rural Areas: It provides high-speed internet access in areas where mobile data infrastructure is limited.

• Home Office and Remote Work: It provides a stable internet connection for professionals working from home.

• Places Requiring Network Connection: It is used as an alternative internet solution in areas where fiber or DSL infrastructure is not available.
