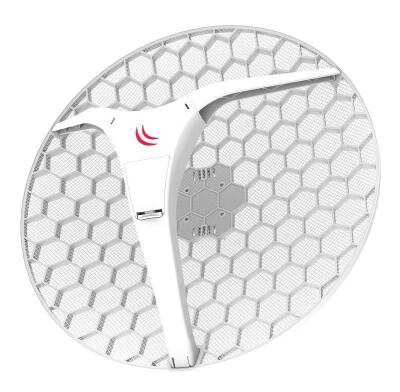

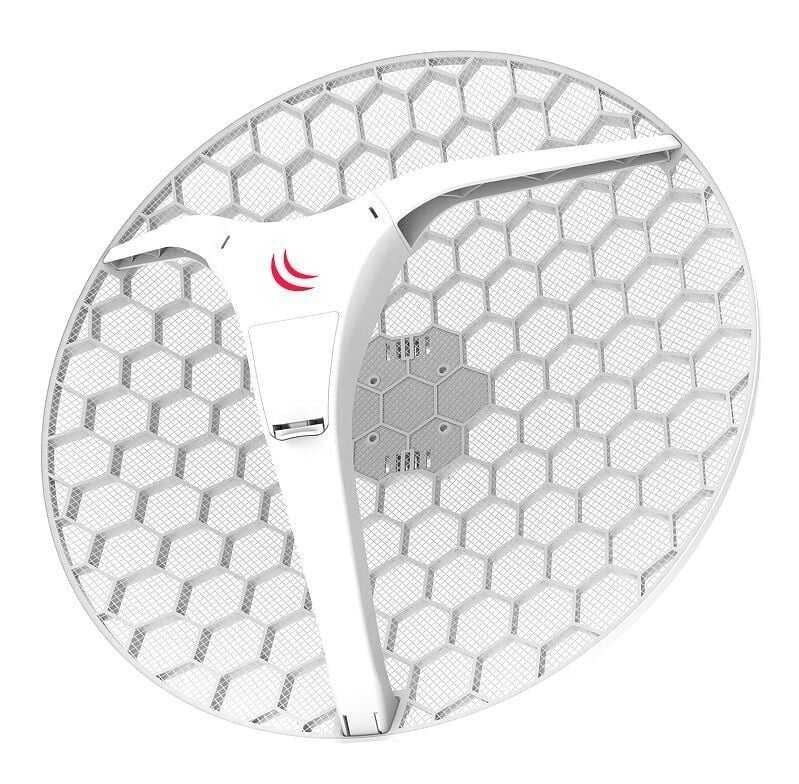

MikroTik RouterBOARD LHG 2nD-XL (EU) (LHG XL 2), the high-gain integrated antenna and2GHz wireless connectionA powerful designed for long-range outdoor solutions with the support ofCPE (Customer Premises Equipment) cihazıdır.
With its wide coverage area and robust design, it can be used in ISP projects as a customer termination device or in point-to-point (PtP) connections. The RouterOS operating system offers advanced features such as firewall, VPN, hotspot, bandwidth management, and routing.
Wireless Standard:IEEE 802.11b/g/n
Frekans:2.4 GHz (2400–2483 MHz – within EU license limits)
Maximum Wireless Speed:300 Mbps (2x2 MIMO support)
Wireless Modes:Access Point / CPE / Bridge / Repeater
Chipset:Qualcomm Atheros AR9344
Antenna Type:Integrated 21 dBi grid antenna
Kazanç: 21 dBi(XL version, more powerful than the standard LHG 2)
Antenna Angle:~9° (ideal for longer distance connections – narrower)
Coverage Distance:Up to 10+ km (if there is a clear line of sight)
İşlemci:AR9344 600 MHz
RAM:64 MB
Depolama:16 MB Flash
Ethernet:1 x 10/100 Mbps Ethernet port
PoE Support:Yes (passive PoE)
Input Voltage:10V – 30V (PoE)
Power Consumption:Maximum 6 W
Adaptör:It usually comes with a 24V passive PoE adapter.
Operating System:MikroTik RouterOS (L3 license)
Supported Features:
Bridge, Station, WDS, Routing
Simple Queue, NAT, Firewall, DHCP, VPN, Wireless Tools
Boyut:⌀ 391 mm (XL diameter)
Montaj:Integrated clamp system for direct mounting
Wind Resistance:241 N @ 205 km/h
Operating Temperature:-40°C to +70°C
Kasa:Outdoor resistant plastic / UV protected
Wireless internet to a remote location (WISP, remote building)
Point to point (PtP) or point to multipoint (PtMP) connection
Use as a wireless ISP client (CPE)
Long-range Wi-Fi in rural or open areas
