LDF G-5acD

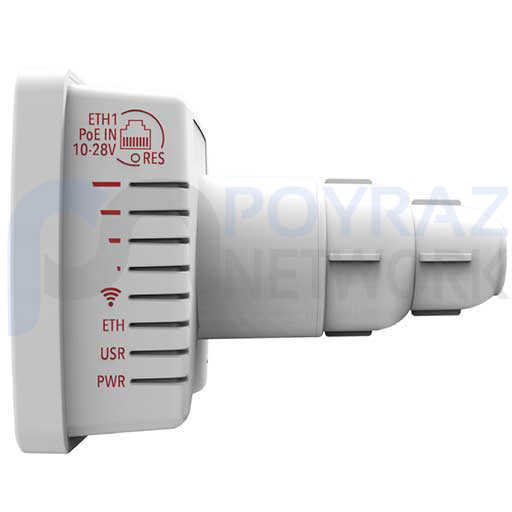

MikroTik LDF 5 ac(model code:RBLDFG-5acD), it is a compact and high-performance outdoor wireless device designed for use with satellite dish antennas. With the "Lite Dish Feed" (LDF) concept, it is easily mounted on standard 40 mm diameter offset satellite dishes and provides long-distance connections by utilizing the dish's reflective properties.

📡 Technical Specifications

• Model Code: RBLDFG-5acD

• Mimari: ARM 32-bit

• İşlemci: Qualcomm IPQ-4018, 4-core, 716 MHz

• RAM: 256 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS (License Level 3)

• Boyutlar: 84 x 84 x 115 mm

• Operating Temperature: Between -40°C and +70°C

• IPsec Hardware Acceleration: Evet

🌐 Wireless Features

• Frequency Band: 5 GHz

• Wireless Standards: 802.11a/n/ac (Wi-Fi 5)

• Maximum Data Rate: 867 Mbps

• Antenna Gain: 9 dBi (internal)

• MIMO: 2x2

• Output Power: Maximum 25 dBm

Note: When used with its specially manufactured dish, the total antenna gain can reach up to 30 dBi.

🔌 Power and Connection

• Ethernet Port: 1 x 10/100/1000 Mbps (Gigabit Ethernet)

• Power Input: 10–28 V Passive PoE

• Maximum Power Consumption:8 W

• Soğutma: Pasif

🎯 Usage Scenarios

• Point to Point (PtP) Connections: When used with a satellite dish, high-speed connections up to 30 km are possible.

• Use as a Client Device (CPE): It is an effective solution on the customer side for wireless internet service providers (WISP).

• Internet Access in Rural Areas: It is an ideal solution for providing internet access in rural areas.

📦 Box Contents

• LDF 5 ac device

• 24V 0.38A power adapter

• PoE injector

• Assembly apparatus
