L23UGSR-5HaxD2HaxD

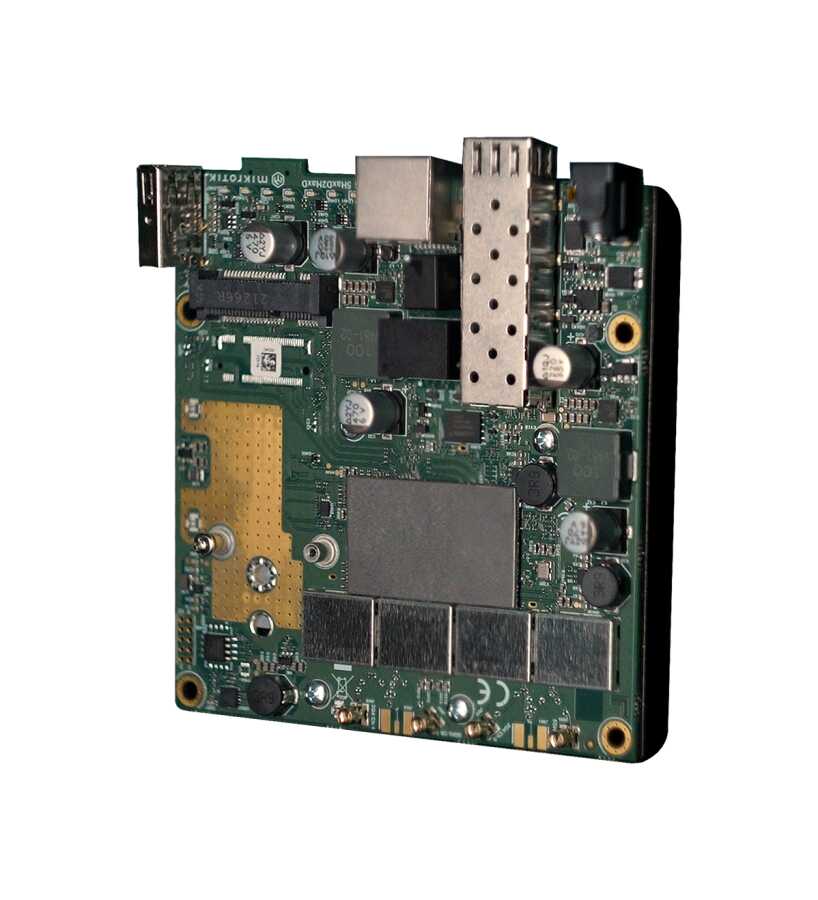

MikroTik L23UGSR-5HaxD2HaxDIt is a modular outdoor access point with Wi-Fi 6 support. This device adapts to various applications thanks to its customizable structure.

🔧 Technical Specifications

• İşlemci: Dual-core ARM IPQ-5010, 800 MHz

• RAM: 256 MB DDR3L

• Depolama: 128 MB NAND Flash

• Operating System: RouterOS v7, License Level 4

• Boyutlar: 122 x 87 x 26 mm

• Operating Temperature: -40°C to +70°C

• MTBF: Approximately 200,000 hours (at 25°C)

📡 Wireless Features

• 2.4 GHz Band:

  • Standards: 802.11b/g/n/ax (Wi-Fi 6)

  • Data Speed: 574 Mbps

  • Antenna Connection: 2 x MMCX

• 5 GHz Band:

  • Standards: 802.11a/n/ac/ax (Wi-Fi 6)

  • Data Speed: 2400 Mbps

  • Antenna Connection: 2 x MMCX

🔌 Connection and Expansion

• Ethernet Port: 1 x 10/100/1000 Mbps RJ45 (PoE-IN supported)

• SFP Port: 1 x 2.5 Gbps

• USB Port: 1 x USB 2.0 Type-A (max. 1.5 A)

• MiniPCIe Slot: 1 x (for LTE or LoRa cards)

• SIM Card Slot: 1 x Nano SIM

• Serial Console Port: RS485

⚡ Power Options

• DC Input: 12–28 V

• PoE-IN: 18–28 V (Passive PoE)

• Maximum Power Consumption:25 W

• Power Adapter: 24 V, 1.2 A

🛠️ Additional Features

• Antenna Connections: Customizable antenna options with 4 x MMCX connectors

• Case Compatibility: RB411, 911, 912, and 922 series can be integrated with aluminum interior casings.

• Sertifikalar: CE, FCC, IC, EAC, ROHS
