L22UGS-5HaxD2HaxD-15S

Product Code : ST01411
7,233.50 TL + VAT
Price Alert
7,233.50 TL + VAT

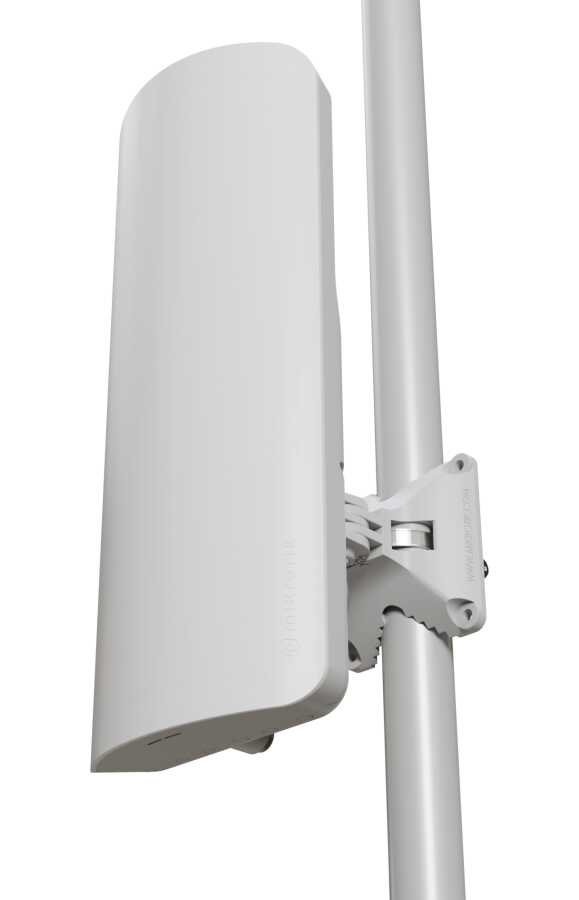

MikroTik L22UGS-5HaxD2HaxD-15S (mANTBox ax 15s), It is a dual-band outdoor access point with Wi-Fi 6 support. It is specifically designed to provide high-speed and stable wireless connectivity in large areas such as campgrounds, stadiums, and parks.


🔧 Technical Specifications

  • Product Code: L22UGS-5HaxD2HaxD-15S

  • İşlemci: Dual-core IPQ-5010, 800 MHz (ARM architecture)

  • RAM: 256 MB

  • Depolama: 128 MB NAND Flash

  • Operating System: RouterOS v7 (License Level 4)

  • Boyutlar: 349 x 140 x 82 mm

  • Operating Temperature: Between -40°C and +70°C

  • MTBF: Approximately 200,000 hours (at 25°C)


📡 Wireless Features

  • Frequency Bands: 2.4 GHz and 5 GHz (dual band)

  • Wireless Standards:

    • 2.4 GHz: 802.11b/g/n/ax (Wi-Fi 6)

    • 5 GHz: 802.11a/n/ac/ax (Wi-Fi 6)

  • Maximum Data Rate:

    • 2.4 GHz: 574 Mbps

    • 5 GHz: 2400 Mbps

  • MIMO Support: 2x2 MIMO

  • Antenna Gain:

    • 2.4 GHz: 12 dBi

    • 5 GHz: 15 dBi

  • Wireless Chipset:

    • 2.4 GHz: IPQ-5010

    • 5 GHz: QCN-6102

  • Maximum Output Power:

    • 2.4 GHz: 29 dBm

    • 5 GHz: 28 dBm

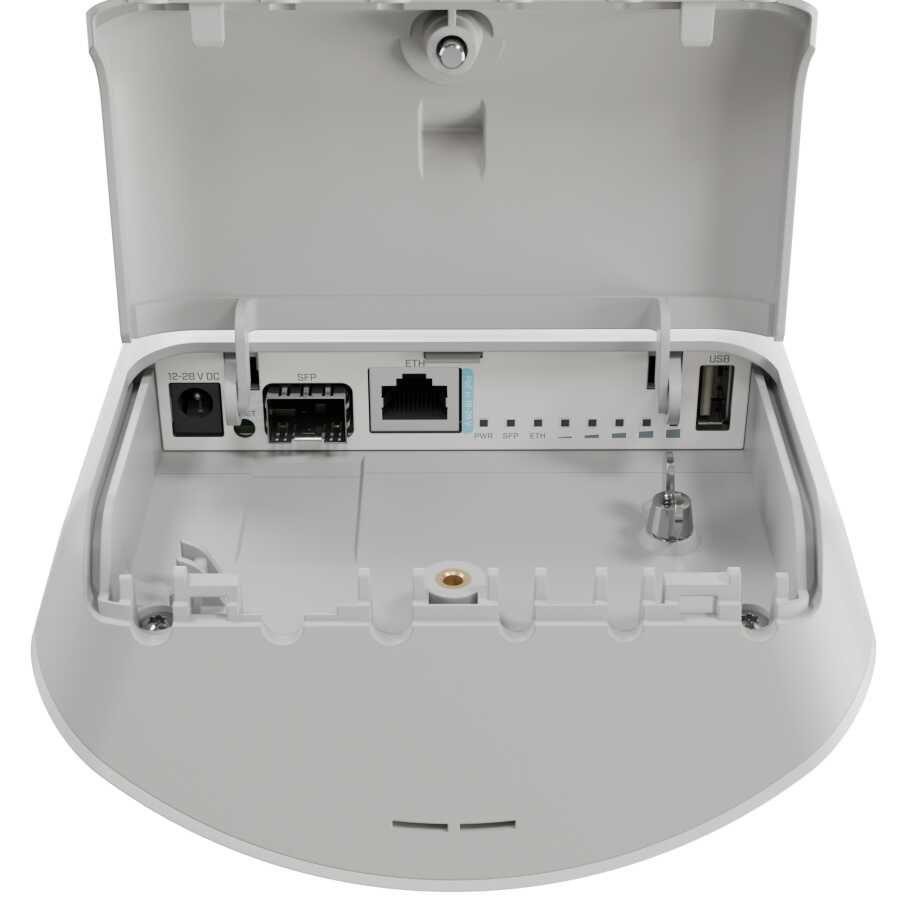

🔌 Connection and Power Options

  • Ethernet Port: 1 x 10/100/1000 Mbps RJ45 (Gigabit Ethernet)

  • SFP Port: 1 x SFP (2.5G supported)

  • USB Port: 1 x USB 2.0 Type A (maximum 1.5 A current support)

  • Power Input Options:

    • DC Jack: 12–28 V

    • PoE-In: 18–28 V (Passive PoE)

  • Maximum Power Consumption:

    • Without additional devices: 11 W

    • At full load: 21 W

  • Soğutma: Pasif


🛠️ Other Features

  • IP Protection Class: IP54 (protected against dust and water splashes)

  • Sertifikalar: CE, FCC, IC, EAC, ROHS

  • Hardware Monitoring: PCB temperature and voltage monitor

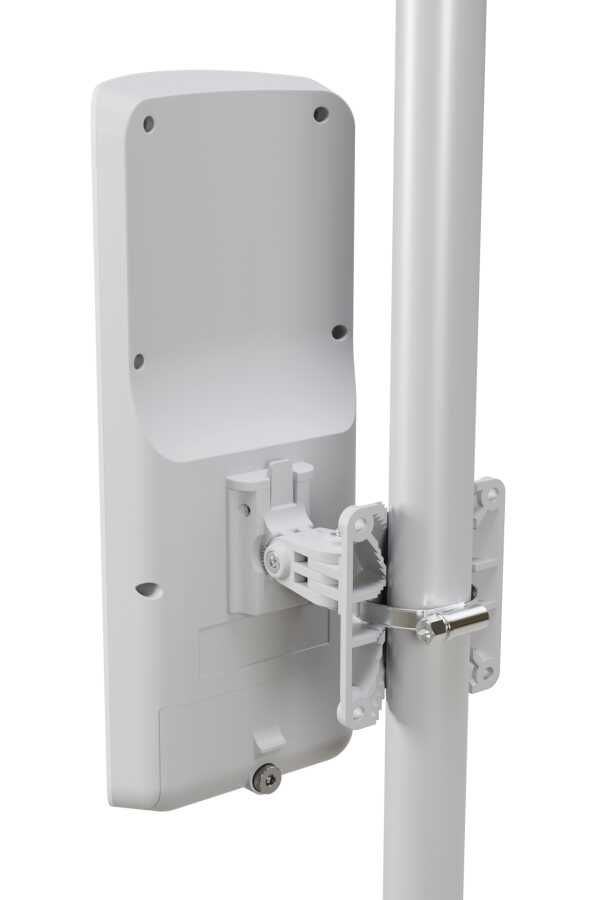

  • Assembly Options: Wall or pole mounting with QuickMOUNT pro (140° horizontal and vertical adjustment capability)


📦 Box Contents

  • mANTBox ax 15s device

  • 24V 1.2A power adapter

  • PoE injector

  • QuickMOUNT pro mounting device

  • Assembly kit and screws
