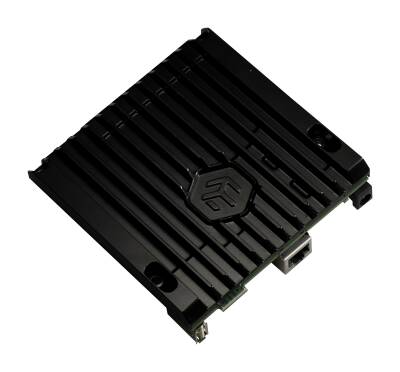

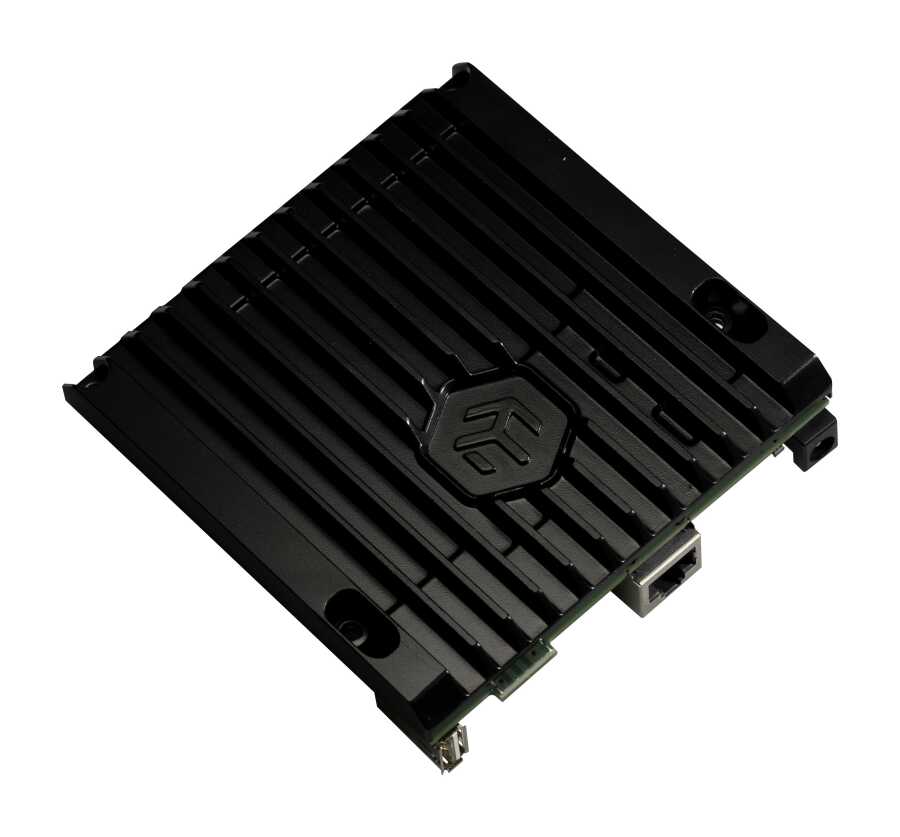

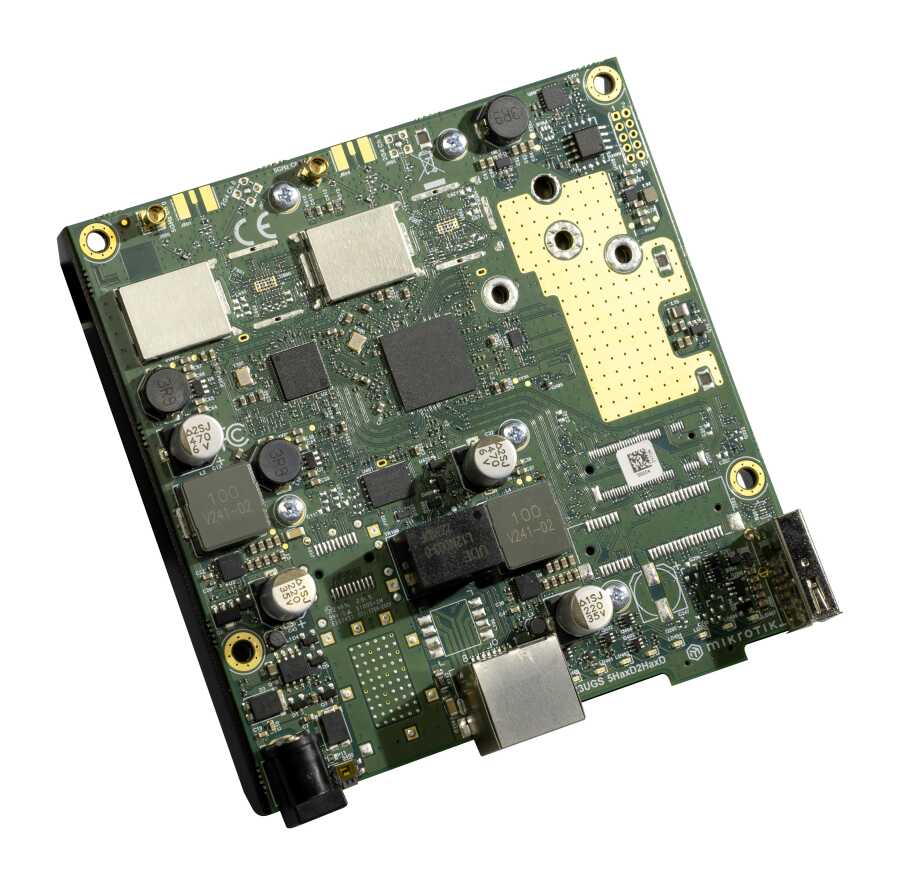

MikroTik L11UG-5HaxDIt is a compact and cost-effective RouterBOARD device that supports Wi-Fi 6 (802.11ax) and operates in the 5 GHz band. It is specifically designed for outdoor CPE (Customer Premises Equipment) or access point (AP) solutions. With its flexible antenna connection and robust hardware, it is ideal for both short-range and long-range connections.
Product Code: L11UG-5HaxD
İşlemci: Qualcomm IPQ-5010, dual-core, 800 MHz
Mimari: ARM
RAM: 256 MB
Depolama: 128 MB NAND Flash
Operating System: RouterOS v7 (License Level 4)
Boyutlar: 107 x 114 x 27 mm
MTBF: Approximately 100,000 hours (at 25°C)
Operating Temperature: Between -40°C and +70°C
Frequency Band: 5 GHz
Wireless Standards: 802.11a/n/ac/ax (Wi-Fi 6), dual-chain (2x2 MIMO)
Wireless Interface Model: QCN-6102
Maximum Connection Speed: Up to 2400 Mbps
Antenna Connections: 2 x MMCX connectors (requires external antenna)
Simultaneous Client Count: Up to 128
Ethernet Port: 1 x 10/100/1000 Mbps RJ45 (Gigabit Ethernet)
USB Port: 1 x USB 2.0 Type A (for external storage or other needs)
Power Input:
DC Jack: 12–28 V
PoE-In: 18–28 V (Passive PoE)
Maximum Power Consumption:
Without additional devices: 6 W
At full load: 12 W
Maximum USB Current: 1.5 A
Outdoor CPE: It can be used with high-gain antennas such as the mANT30 PA for long-range connections.
Access Point (AP): It can be used as an access point indoors or outdoors with omnidirectional antennas such as HGO-antenna-OUT.
Industrial Applications: Automats, ATMs, ticket machines can be integrated into various systems.
Customizable Hardware: RB411, 911, 912, and 922 models are compatible with aluminum cases.
L11UG-5HaxD device
24V 1.2A power adapter
Gigabit PoE injector
Assembly kit (optional)
