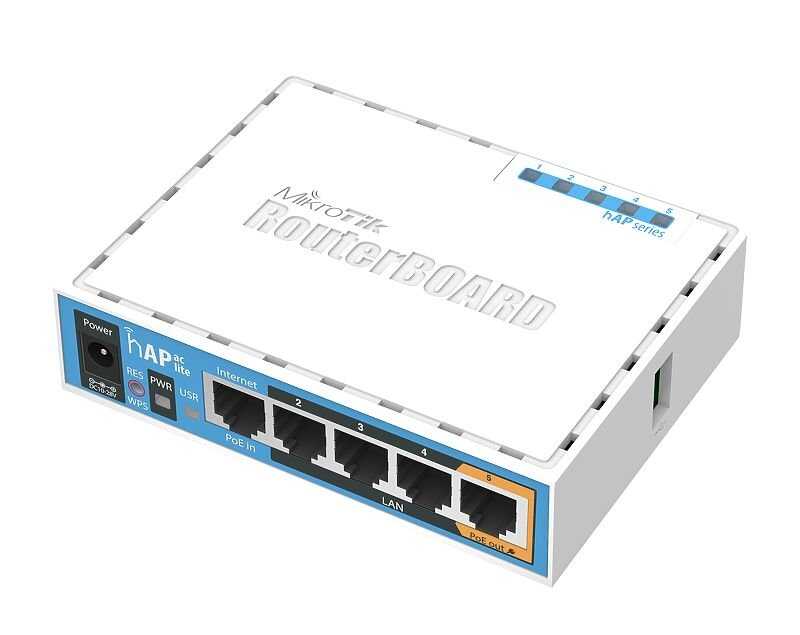

RB952Ui-5ac2nD hAP ac lite

MikroTik hAP ac lite (RB952Ui-5ac2nD), It is a dual-band wireless access point and router designed for home and small offices. It provides Wi-Fi support on both 2.4 GHz and 5 GHz frequencies simultaneously, thus offering wider coverage and higher speeds.

📡 Wireless Features

• Frequency Bands: 2.4 GHz and 5 GHz (simultaneous operation)

• Wireless Standards:

  • 2.4 GHz: 802.11b/g/n (Wi-Fi 4)

  • 5 GHz: 802.11a/n/ac (Wi-Fi 5)

• Maximum Data Rates:

  • 2.4 GHz: 300 Mbps

  • 5 GHz: 433 Mbps

• MIMO:

  • 2.4 GHz: 2x2

  • 5 GHz: 1x1

• Antenna Gains:

  • 2.4 GHz: 2 dBi

  • 5 GHz: 2 dBi

⚙️ Hardware Specifications

• İşlemci: Qualcomm Atheros QCA9531, 650 MHz, single-core

• RAM: 64 MB

• Depolama: 16 MB Flash

• Ethernet Ports: 5 x 10/100 Mbps Fast Ethernet

  • Port 5: Passive PoE output (max. 500 mA)

• USB Port: 1 x USB 2.0 (3G/4G modem support)

• Boyutlar: 113 x 89 x 28 mm

• Soğutma: Pasif

• Operating Temperature: -30°C to +70°C

🔌 Power and Connection

• Power Input:

  • DC jack: 10–30 V

  • Passive PoE: 10–30 V

• Maximum Power Consumption: 8 W

• PoE Output: Passive PoE via Port 5 (max. 500 mA)

🧰 Software and Management

• Operating System: MikroTik RouterOS (License Level 4)

• Management Features: Central AP management with CAPsMAN support, bandwidth control, firewall, user access control, and other RouterOS features

• Default IP: 192.168.88.1 (Username: admin, password: none)

📦 Box Contents

• RB952Ui-5ac2nD device

• 24V 1.2A power adapter

• Wall mounting kit

🎯 Areas of Use

hAP ac lite is ideal for providing Wi-Fi access in home and small office environments. By being able to operate on both 2.4 GHz and 5 GHz frequencies simultaneously, it allows for more devices to connect and provides a more stable connection. Additionally, it can also power other devices through the PoE output.
