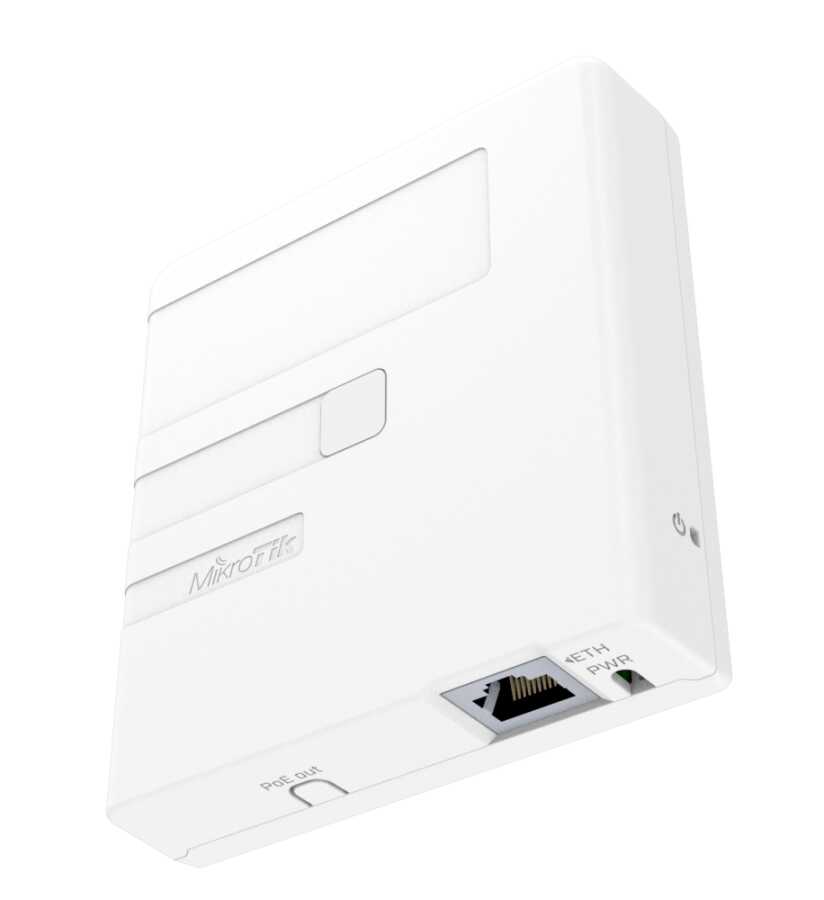

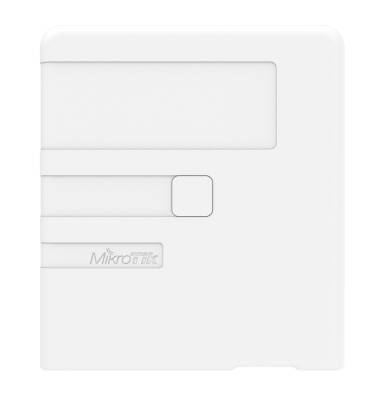

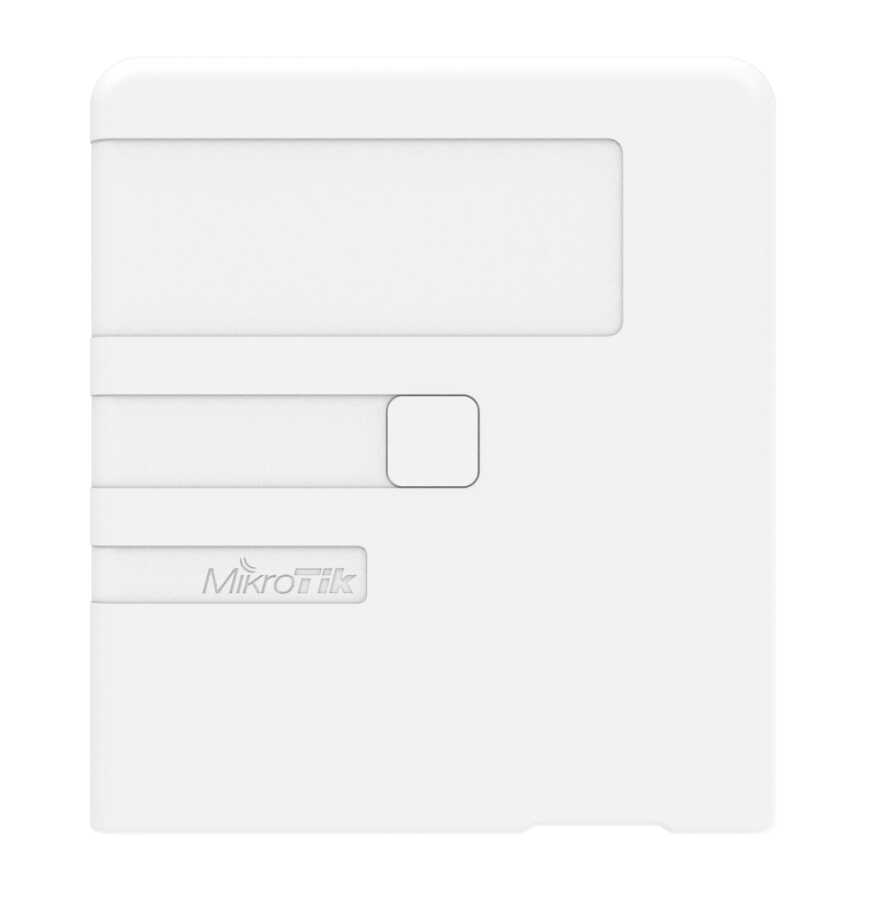

MikroTik GPEN11 PoE InjectorIt is a wall-mountable passive PoE injector developed by MikroTik under its GPEN (Gigabit Passive Ethernet Network) concept. This device aims to provide an economical and easy-to-install Ethernet alternative to GPON (Gigabit Passive Optical Network) infrastructures.
Product Code: GPEN11
Ethernet Ports: 2 units of 10/100/1000 Mbps RJ45 ports
PoE Output: Passive PoE (via Ether2 port)
Input Voltage: 12–57 V DC (via DC jack)
Maximum Output Current: 2 A (at 18–30 V input voltage)
Soğutma: Pasif
Operating Temperature: Between -40°C and +70°C
Boyutlar: 92 x 104 x 24 mm
Montaj: It can be mounted on the wall or communication cabinet.
Label Field: A 66 x 25 mm area is reserved for the ISP label on the front panel.
Sertifikalar: CE, EAC, RoHS
GPEN11 device
Assembly screws
Not: The power adapter is not included in the box; it must be obtained separately.
GPEN11 is an ideal solution for the following situations:
At customer premises, positioned next to the Wi-Fi router serving the user to provide power to the ISP router (e.g., an outdoor wireless unit mounted on the roof) or to the network switch inside the building.
It offers flexible installation options by routing the Ethernet cable through the cable opening at the bottom of the device or inside the wall.
