MikroTik D53G-5HacD2HnD-TC&FG621-EA, also known asChateau LTE6, is a compact router designed for homes and small offices, offering high-speed LTE connectivity and dual-band Wi-Fi support. Thanks to the advanced RouterOS operating system, it is suitable for both simple and complex network configurations.
Model Code: D53G-5HacD2HnD-TC&FG621-EA
İşlemci: Qualcomm IPQ-4019, 4 cores, 448–896 MHz
Mimari: ARM 32-bit
RAM: 256 MB DDR3L
Depolama: 16 MB Flash
Operating System: RouterOS v7 (License Level 4)
MTBF: Approximately 200,000 hours (at 25°C ambient temperature)
Operating Temperature: -40°C to +70°C
IPsec Hardware AccelerationYes
2.4 GHz Wi-Fi:
Standards: 802.11b/g/n (Wi-Fi 4)
Maximum Data Speed: 300 Mbps
Antenna Gain: 2 dBi
Chain Count: 2x2 MIMO
5 GHz Wi-Fi:
Standards: 802.11a/n/ac (Wi-Fi 5)
Maximum Data Rate: 867 Mbps
Antenna Gain: 4 dBi
Chain Count: 2x2 MIMO
Total Wi-Fi Speed: AC1200
LTE Modem: FG621-EA (Category 6)
Maximum Speeds: 300 Mbps download / 50 Mbps upload
MIMO Support: 2x2 MIMO
LTE FDD Bands: 1 (2100MHz), 3 (1800MHz), 5 (850MHz), 7 (2600MHz), 8 (900MHz), 20 (800MHz), 28 (700MHz)
LTE TDD Bands: 38 (2600MHz), 40 (2300MHz), 41 (2500MHz)
3G Bands: 1 (2100MHz), 3 (1800MHz), 5 (850MHz), 8 (900MHz)
TR-069 Support: Yes (for remote management)
Ethernet Ports: 5 x Gigabit Ethernet (10/100/1000 Mbps)
USB Port: 1 x USB 2.0 Type-A (maximum 1A current)
SIM Slot: 1 x Micro SIM
Power Input: 12–28 V DC (via DC jack)
Maximum Power Consumption: 21 W
Soğutma: Pasif

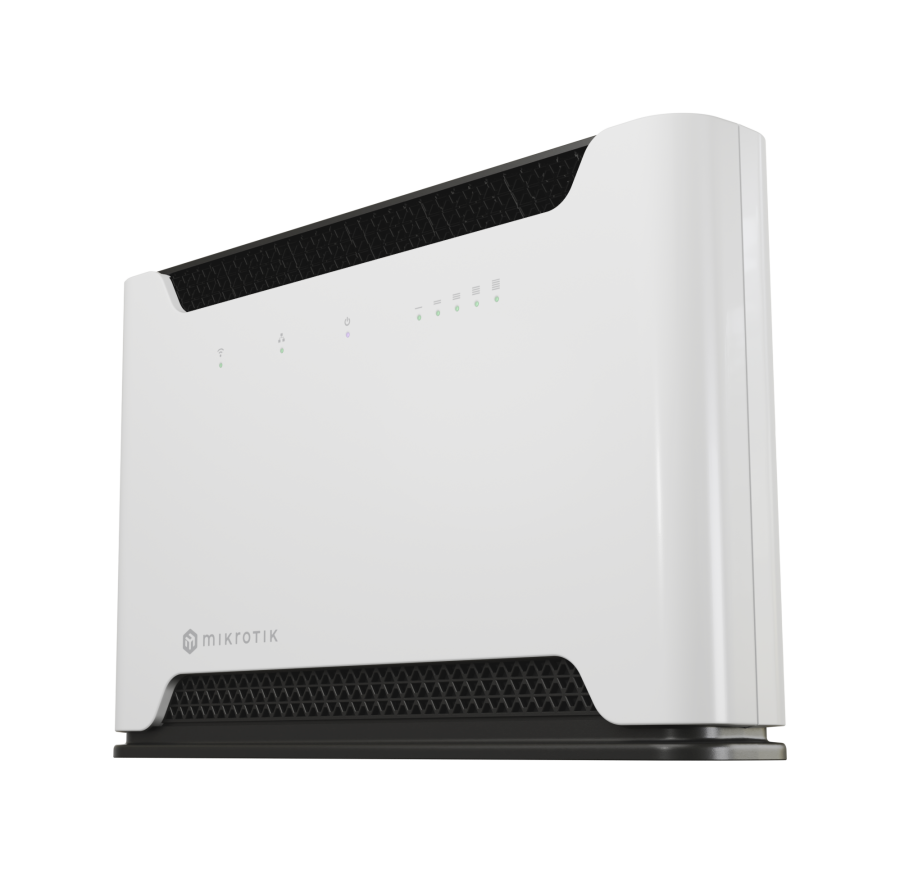

Chateau LTE6 device
24V 1.2A power adapter
1.5m UTP straight Ethernet cable
Home and Small Offices: It provides high-speed LTE and Wi-Fi connection.
Rural Areas: It provides internet access via LTE in areas without cable infrastructure.
Backup Connection: LTE can be used as a backup for the existing wired internet connection.
Mobile Operators: Thanks to TR-069 support, remote management and brand customization can be performed.
