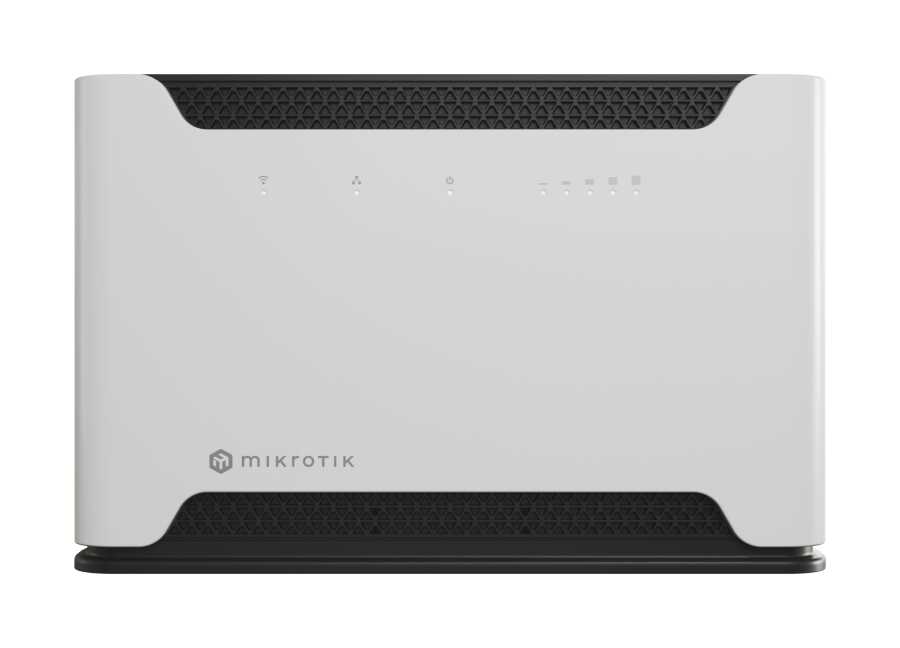

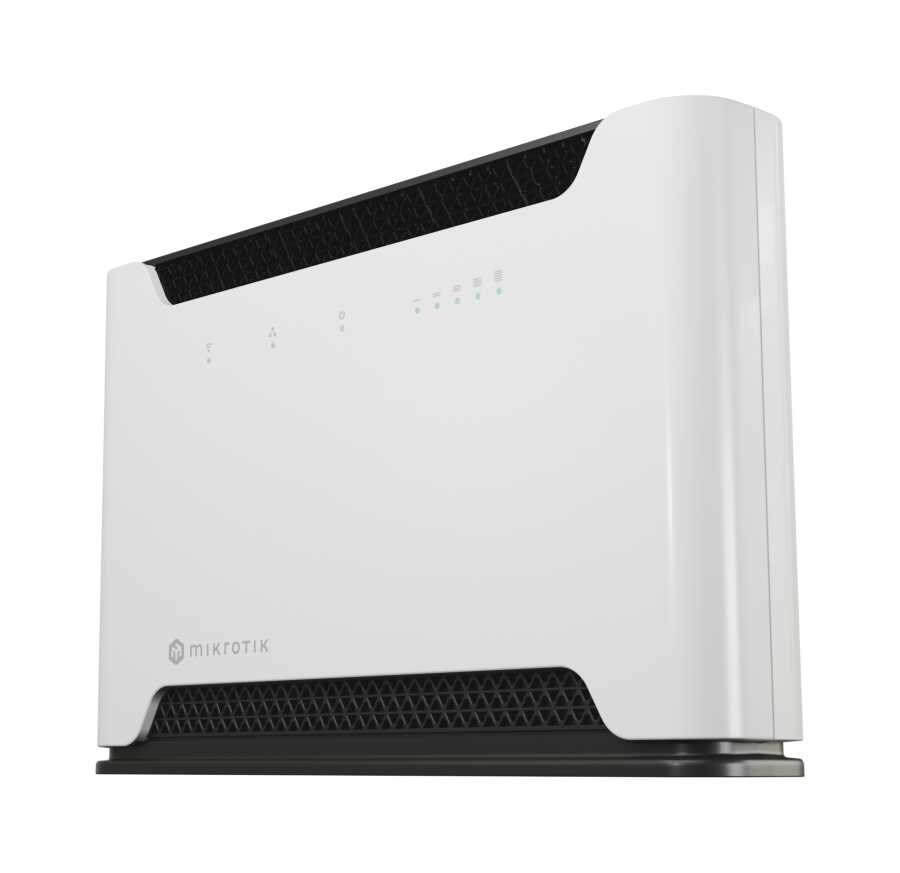

MikroTik'in D53G-5HacD2HnD-TCThe model is a router that supports Wi-Fi 5 (802.11ac) andQuectel RG520F-EUIt provides 5G connectivity support with the module. This combination provides high-speed internet access and extensive coverage.
Frequency Bands: 2.4 GHz and 5 GHz (simultaneous operation)
Wireless Standards:
2.4 GHz: 802.11b/g/n/ac
5 GHz: 802.11a/n/ac
MIMO: 2x2 (double-stranded for both bands)
Maximum Data Rates:
2.4 GHz: 300 Mbps
5 GHz: 867 Mbps
Antenna Gains:
2.4 GHz: 22 dBm
5 GHz: 23 dBm
İşlemci: ARM Cortex-A53, 864 MHz
RAM: 1 GB DDR4
Depolama: 16 MB Flash
Ethernet Ports: 5 x Gigabit Ethernet (RJ45)
Port 1: PoE input (802.3af/at)
Port 2: PoE output (max. 500 mA)
Power Input:
PoE (802.3af/at) 10–60V
DC Jack (12–30V)
Maximum Power Consumption: 20 W
Soğutma: Pasif
Operating Temperature: -30°C to +70°C
Frequency Bands:
5G NR (Sub-6 GHz): n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n76, n77, n78
LTE-FDD: B1, B3, B5, B7, B8, B20, B28, B32
LTE-TDD: B38, B40, B41, B42, B43
WCDMA: B1, B5, B8
Maximum Data Rates:
Downloaded (Downlink): 4.0 Gbps
Uploaded (Uplink): 900 Mbps
Network Modes: 5G NSA and SA
GNSS Support: GPS, GLONASS, BDS, Galileo, and QZSS
Operating Temperature: -30°C to +75°C
Boyutlar: 45.0 × 48.0 × 2.85 mm
Operating System: MikroTik RouterOS (License Level 4)
Management Features: Centralized AP management with CAPsMAN support, IPsec hardware acceleration, bandwidth control, firewall, user access control, and other RouterOS features.
Default IP: 192.168.88.1 (Username: admin, password: none)
hAP ac² (D53G-5HacD2HnD-TC) device
24V 1A power adapter
PoE injector
Mounting fixture and screw set
D53G-5HacD2HnD-TC meets high speed and capacity requirements with Wi-Fi 5 technology and 5G connectivity support. It is an ideal solution for home users, small offices, hotels, and WISPs. With CAPsMAN support, you can centrally manage multiple access points.
