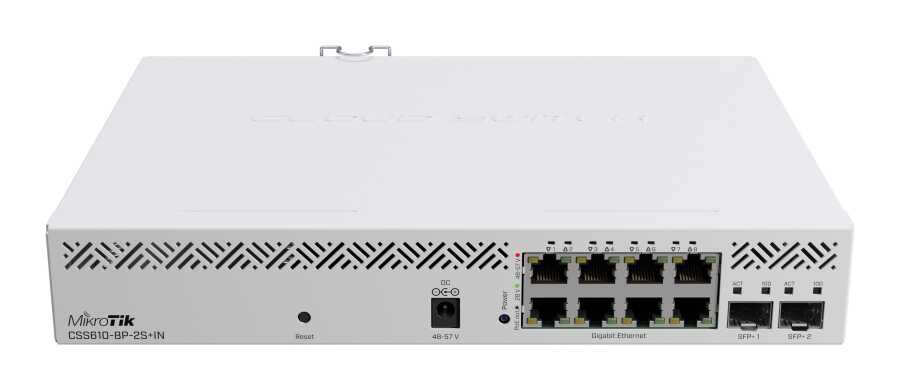

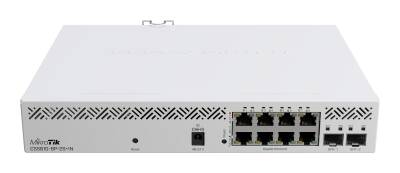

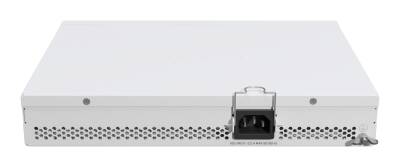

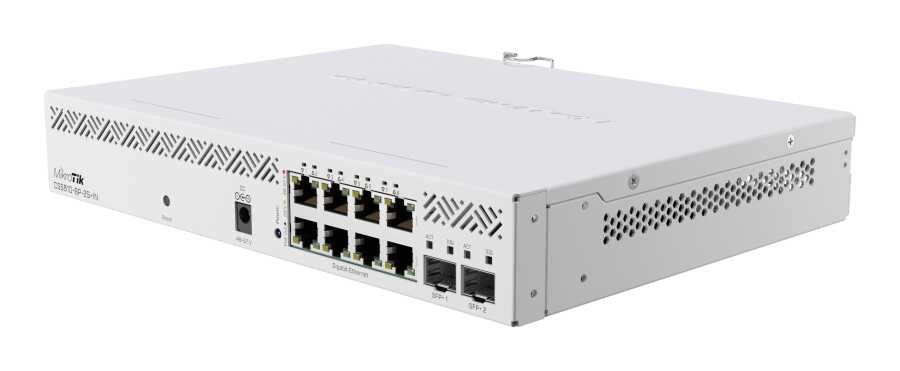

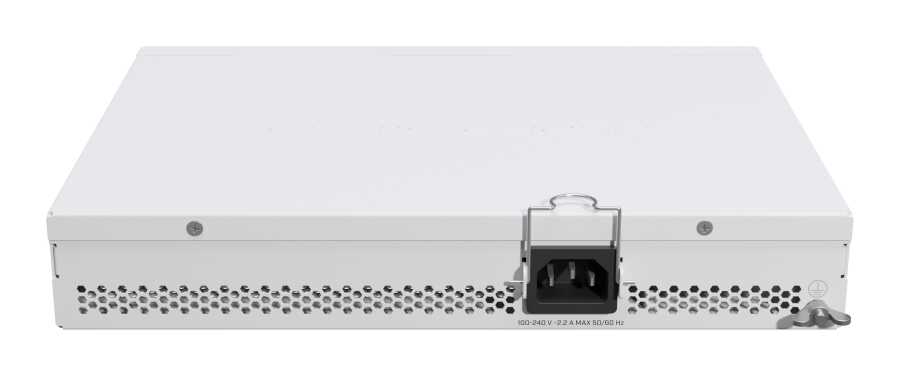

MikroTik CSS610-8P-2S+IN, is a manageable switch model from MikroTik's Cloud Smart Switch series, with PoE support. It is specifically designed for small and medium-sized businesses and home-office networks. Below you can find the technical specifications of the device.
Model Code: CSS610-8P-2S+IN
Ethernet Ports: 8 units of 10/100/1000 Mbps RJ45 ports (with PoE output)
SFP+ Ports: 2 units of 10 Gbps SFP+ slots
PoE Features:
All Ethernet ports support 802.3af/at and passive PoE output.
Total PoE output power: 140 W
Maximum output per port depending on the input voltage:
18–30 V input 1000 mA
30–57 V input 625 mA
Power Input:
AC input: 100–240 V, 54 V nominal, 2.8 A
DC input: 48–57 V
Maximum Power Consumption:
Device: 12 W
Total with PoE: 162 W
Boyutlar: 272 x 216 x 50 mm
Operating Temperature: Between -40°C and +70°C
Yazılım: SwitchOS Lite (web-based management interface)
Chipset: Marvell 88E6193X
Depolama: 64 KB Flash
Sertifikalar: CE, EAC, RoHS
IP Protection Class: IP20
SwitchOS Lite operating system offers a user-friendly web interface. Through this interface, you can perform the following operations:
Port to port forwarding
Broadcast storm control
MAC filtering
VLAN configuration
Traffic mirroring
Bandwidth limitation
Setting the MAC and IP header fields
CSS610-8P-2S+IN supports both 802.3af/at standards and passive PoE output. According to user experiences, the device can also power 24V passive PoE devices. In the SwOS interface, the PoE output voltage can be set to "auto", "low", or "high". .
CSS610-8P-2S+IN switch device
Power cable
Rack mounting ears and screws
This switch can be effectively used in the following scenarios.
Home offices
Small and medium-sized enterprises
Networks with 10G uplink requirement
Providing power for PoE-enabled IP cameras, access points, and VoIP phones.
