CSS610-1G-7R-2S+OUT

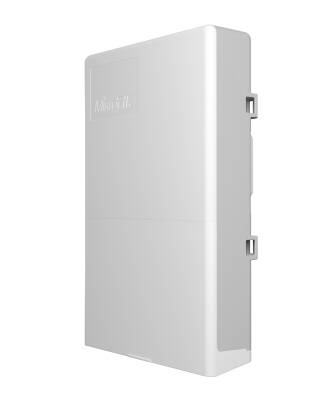

MikroTik CSS610-1Gi-7R-2S+OUT, also known asnetPower Lite 7Ralso known as, is a Cloud Smart Switch model designed for outdoor installations with robust features. This device is an ideal solution for providing internet service to individual apartments, especially in GPON (Gigabit Passive Optical Network) infrastructures.

🔧 Technical Specifications

• Product Code: CSS610-1Gi-7R-2S+OUT

• Switch Chip: Marvell 88E6193X

• Operating System: SwitchOS Lite

• Depolama: 64 KB FLASH

• Boyutlar: 304 x 212 x 71 mm

• Ağırlık: Approximately 1.5 kg

• Operating Temperature: Between -40°C and +70°C

• MTBF: Approximately 200,000 hours @ 25°C

• IP Protection Class: IP54

• Soğutma: Passive (fanless)

🌐 Connection Properties

• Ethernet Ports: 8 x 10/100/1000 Mbps

  • 7 x Reverse PoE (PoE-in)

  • 1 x PoE-out (Ether8)

• SFP+ Ports: 2 x 10G SFP+

⚡ Power and Supply

• PoE Input: Passive PoE

• Input Voltage: 12–57 V DC

• DC Input: 2-pin terminal and DC jack

• Maximum Power Consumption: 29 W (7 W without connected devices)

• Ethernet Port 8 (PoE-out):

  • If the input voltage is 18–30 V, maximum output: 600 mA

  • If the input voltage is 30–57 V, the maximum output is 450 mA.

📦 Box Contents

• Cihaz: CSS610-1Gi-7R-2S+OUT

• Assembly Kit: K-66

• Hose Clamps: 2 pieces
