CRS520-4XS-16XQ-RM

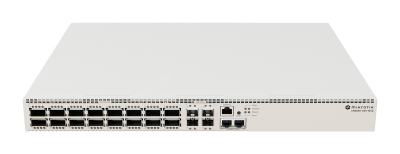

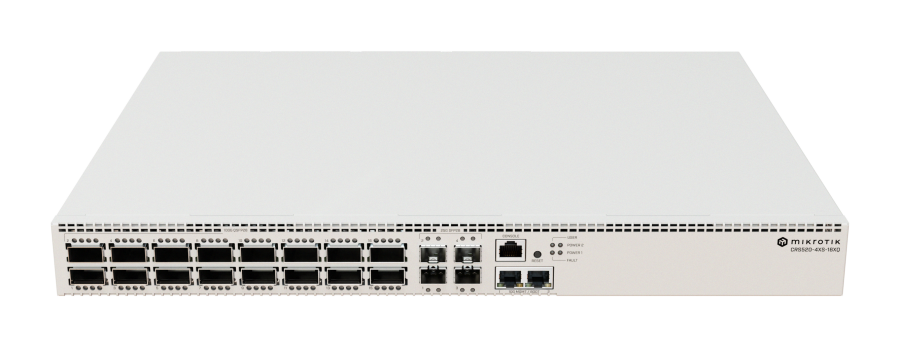

MikroTik CRS520-4XS-16XQ-RM, is a high-performance enterprise switch and is designed for use in environments with heavy data traffic such as 100G data centers, networks requiring high bandwidth, and professional media studios. It offers extensive connectivity options with 16 100G QSFP28 ports, 4 25G SFP28 ports, and 2 10G Ethernet ports.​

🔧 Technical Specifications

• Product Code: CRS520-4XS-16XQ-RM

• İşlemci: 4-core AL52400 ARM 64-bit, 2 GHz

• RAM: 4 GB DDR4

• Depolama: 128 MB NAND

• Operating System: RouterOS v7 (License level 5)

• Boyutlar: 443 x 367 x 44 mm (1U rackmount)

• Operating Temperature: -20°C to +50°C

• MTBF: Approximately 200,000 hours @ 25°C ​

📶 Network Interfaces

• 100G QSFP28 Ports: 16 pieces (supports 4x25G, 2x50G, or 1x100G depending on the module)

• 25G SFP28 Ports: 4 units (supports 1G/2.5G/10G/25G)

• 10G Ethernet Ports: 2 units (supports 10M/100M/1G/10G speeds)

• Console Port: 1 x RJ45 (default 115200bps) ​

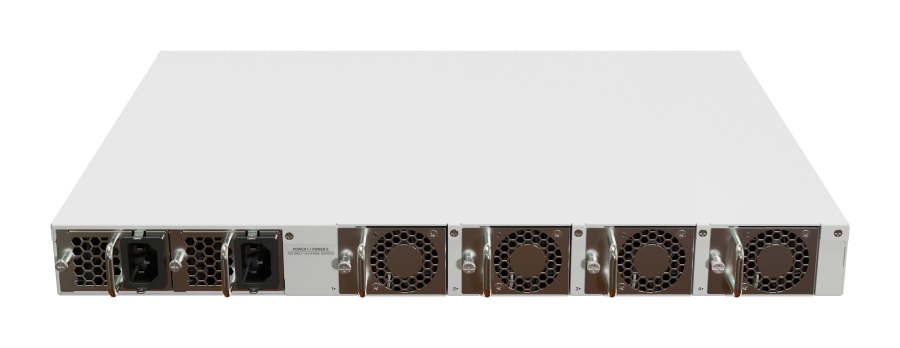

⚡ Power and Cooling

• AC Inputs: 2 units (100–240V, 47–63 Hz)

• Maximum Power Consumption: 150 W

• Soğutma: 4 hot-swap fan units

• Power Supply: 2 hot-swap PSUs (PW-12V150W) ​

🧠 Software and Features

• Network Protocols: OSPF, BGP, VPN, ACL, Jumbo Frame, L3 hardware accelerated routing

• Management Interface: Advanced network management and configuration options with RouterOS v7.

• Hardware Acceleration: Hardware-based network processing with Marvell 98CX8410 switch chip ​

📦 Box Contents

• 2 x IEC power cable

• Rackmount ears and rear support brackets

• Cable management brackets

• Assembly kit
