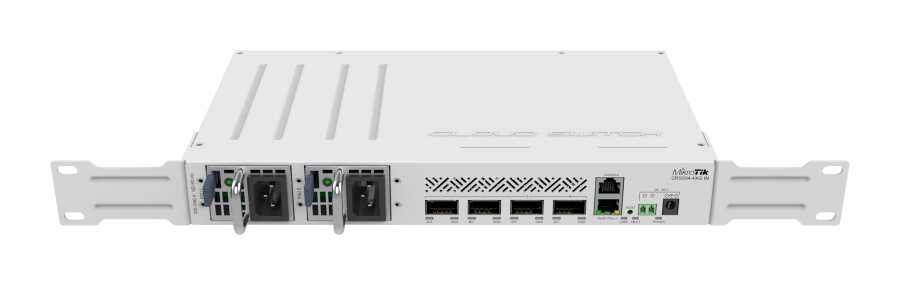

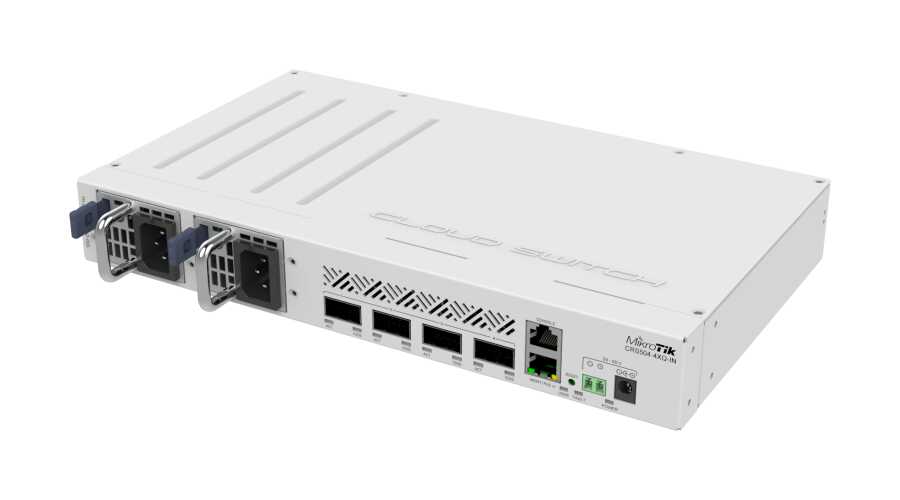

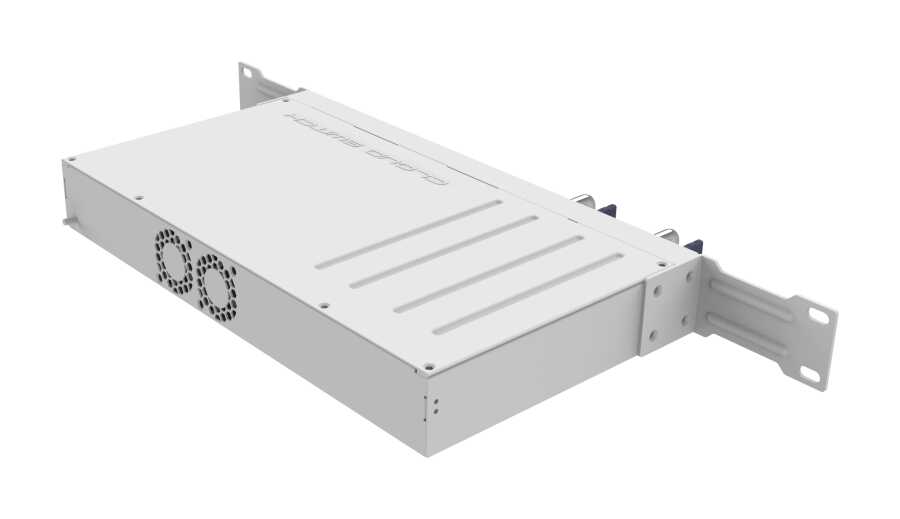

CRS504-4XQ-IN

MikroTik CRS504-4XQ-IN, is a high-speed and energy-efficient 100 Gigabit switching solution. With its compact design and low power consumption, it is ideal for data centers, service providers, and businesses with high bandwidth requirements.

🔧 Technical Specifications

• Model: CRS504-4XQ-IN

• İşlemci: QCA9531, 650 MHz

• RAM: 64 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS (Level 5 license)

• Boyutlar: 320 x 185 x 44 mm

• Operating Temperature: -20°C to +60°C

• MTBF: Approximately 200,000 hours @ 25°C

• Sertifikalar: CE, EAC, RoHS

🌐 Network and Connection Properties

• QSFP28 Ports: 4 x 100 Gbps (also compatible with 40G, 25G, 10G, and 1G modules)

• Ethernet Port: 1 x 10/100 Mbps (with PoE-in support)

• Console PortRJ45

• Switching Capacity: 800 Gbps

• Transmission Speed: 596 Mpps

• MAC Address Table: 32,000 entries

⚡ Power and Cooling Features

• Input Voltage: 36–57 V DC

• Power Input:

  • DC jack

  • PoE-in (802.3af/at) via Ethernet port

  • 2-pin terminal block

• Maximum Power Consumption: 25 W (without attachments)

• Soğutma: Passive (does not include a fan)

🧰 Box Contents

• CRS504-4XQ-IN device

• Power adapter

• Rack mounting ears and screw set

• Quick installation guide
