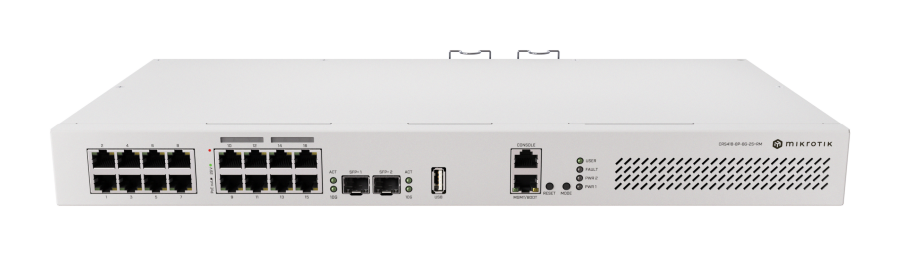

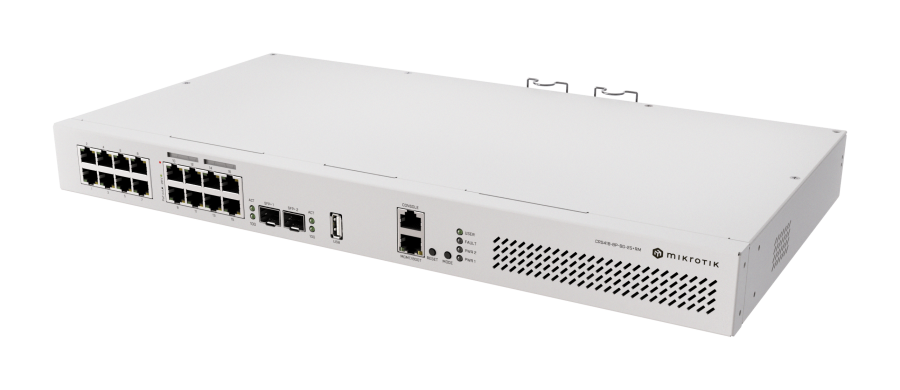

CRS418-8P-8G-2S+RM

MikroTik CRS418-8P-8G-2S+RM, a powerful one developed for medium and large-scale networksCloud Router Switch modelidir.

• 8x PoE output gigabit portand the ability to directly supply power to devices

• 8x Gigabit Ethernet portwith high-speed data transfer

• 2x SFP+ slot üzerinden 10G fiber connection imkânı

• With RouterOS and SwOS support,flexible management seçenekleri

sunmaktadır.

⚙️ Hardware & Performance

• CPU: Quad-core ARM IPQ-8072, 2.2 GHz

• RAM: 1 GB DDR3L

• Storage: 128 MB NAND

• Switch Chip: 98DX226S

• Operating System: RouterOS v7 (L5)

🔌 Ports & Connections

• 17 × Gigabit Ethernet (8 × PoE-out)

• 2 × 10 G SFP+ uplink

• 1 × USB 3.0

• RJ45 serial console port

⚡ PoE Features

• PoE-out over 8 ports (802.3af/at & passive PoE)

• Total PoE power: 150 W

• Maximum output current: 5.4 A

🔋 Power & Cooling

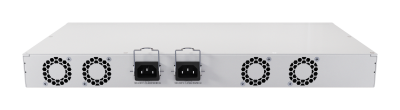

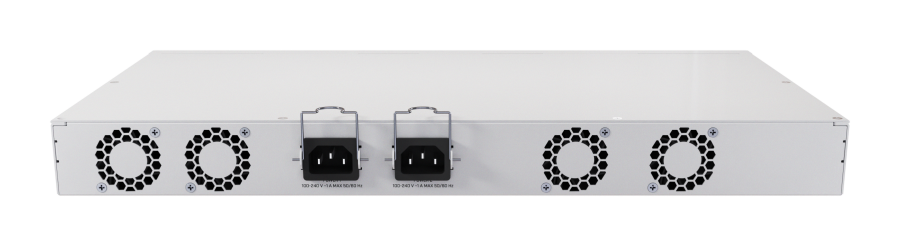

• Dual AC power supply (100–240 V)

• Power consumption: 28 W (idle) / 215 W (maximum)

• 4-fan active cooling system

📐 Physical Properties

• Dimensions: 443 × 230 × 44 mm (1U rack compatible)

• Operating temperature: –20 °C ~ +70 °C

• MTBF: ~200,000 hours

🛠️ Software & Management

• RouterOS v7 (L2/L3 switch & routing)

• VLAN, ACL, QoS, CAPsMAN

• IPSec performance: ~1.2 Gbps (single tunnel)

• Monitoring: CPU, temperature, voltage, current
