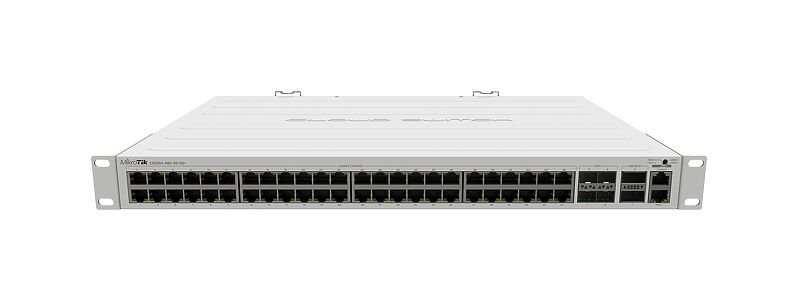

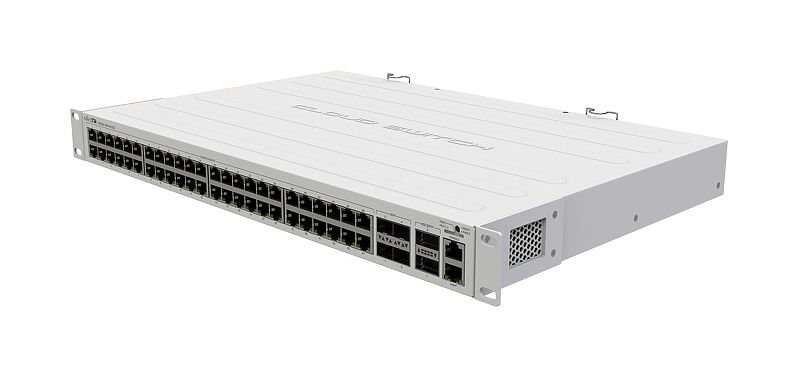

CRS354-48G-4S+2Q+RM

MikroTik CRS354-48G-4S+2Q+RM, It is a Layer 3 manageable switch that offers high port capacity and 10G/40G connection support. Data centers are ideal for large corporate networks and applications requiring high bandwidth.

⚙️ Technical Specifications

• Product Code: CRS354-48G-4S+2Q+RM

• İşlemci: Qualcomm Atheros QCA9531, single-core, 650 MHz

• Mimari: MIPSBE

• RAM: 64 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS (License Level 5) or SwitchOS (dual boot)

• Boyutlar: 297 x 443 x 44 mm (1U rackmount)

• Operating Temperature: Between -20°C and +60°C

• MTBF: Approximately 200,000 hours @25°C

🔌 Connection and Power

• Ethernet Ports:

  • 48 x 10/100/1000 Mbps RJ45

  • 1 x 10/100 Mbps RJ45 (management port)

• SFP+ Ports: 4 x 10 Gbps

• QSFP+ Ports: 2 x 40 Gbps

• Console Port: RJ45

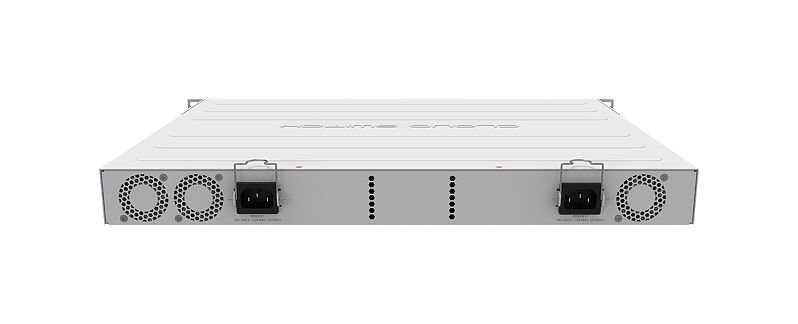

• Power Input: 2 x AC (100–240 V, 50/60 Hz) – redundant power supply

• Maximum Power Consumption:60 W

• Soğutma: Active cooling with 3 fans.

📈 Performance

• Total Non-Blocking Throughput: 168 Gbps

• Switching Capacity: 336 Gbps

• Transmission Speed: 235 Mpps

🧰 Other Features

• Dual Boot: The option to choose between RouterOS or SwitchOS

• Hardware Monitoring: Voltage and temperature monitoring features

• Sertifikalar: CE, EAC, RoHS

• IP Protection Class: IP20
