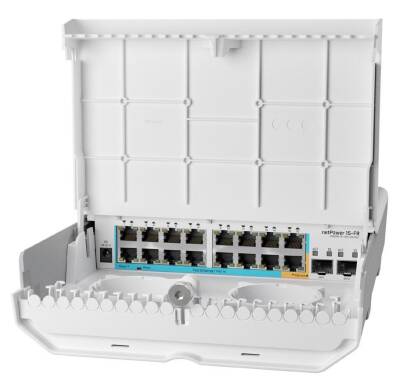

CRS318-1Fi-15Fr-2S-OUT netPower 15R

MikroTik CRS318-1Fi-15Fr-2S-OUT, also known asnetPower 15FR, it is a Layer 3 manageable switch with 18 ports, designed for outdoor use. This device, particularly suitable for ISPs and in-building fiber distribution projects, is part of MikroTik's GPEN (Gigabit Passive Ethernet Network) concept.

⚙️ Technical Specifications

• Product Code: CRS318-1Fi-15Fr-2S-OUT

• İşlemci: 98DX224S, single-core, 800 MHz

• Mimari: ARM 32bit

• RAM: 256 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS (License Level 5) or SwitchOS (dual boot)

• Boyutlar: 304 x 212 x 71 mm

• Operating Temperature: Between -40°C and +70°C

• MTBF: Approximately 200,000 hours @25°C

• Soğutma: Pasif

🔌 Connection and Power

• Ethernet Ports:

  • 16 x 10/100 Mbps RJ45 (15 of which support Reverse PoE-IN)

  • 1 x 10/100 Mbps RJ45 (PoE-OUT supported, Ether15)

• SFP Ports: 2 x 1 Gbps

• Power Input:

  • 1 x DC jack (18–57 V)

  • 15 x PoE-IN (Ether1–14 and Ether16)

• PoE-OUT: Passive PoE over Ethernet

  • If the input voltage is 18–30 V, maximum 0.75 A

  • Input voltage 30–57 V maximum 0.5 A

• Maximum Power Consumption:29 W

• Power Adapter: Not included, must be provided separately.

📈 Performance

• Non-Blocking Throughput: 3.6 Gbps

• Switching Capacity: 7.2 Gbps

• Transmission Speed: 5.4 Mpps

🧰 Other Features

• Montaj: Hose clamps and K-66 mounting set are included for direct mounting.

• Hardware Monitoring: Voltage and temperature monitoring features

• Sertifikalar: CE, EAC, RoHS

• IP Protection Class: IP20
