CRS304-4XG-IN

​The MikroTik CRS304-4XG-IN is a Layer 3 manageable switch that stands out with its compact design and high performance, offering 10 Gigabit Ethernet connections. Its quiet operation and flexible power options make it an ideal solution for both professional and home users.​

📦 Hardware Specifications

• CPU: Marvell Prestera 98DX2528, dual-core, 1.2 GHz ARM 64-bit

• RAM: 512 MB DDR4

• Depolama: 32 MB Flash

• Operating System: RouterOS v7 (License Level 5)

• Boyutlar: 176 x 128 x 35 mm

• Operating Temperature: -40°C to +70°C

• MTBF: Approximately 200,000 hours @ 25°C

🔌 Connection Points

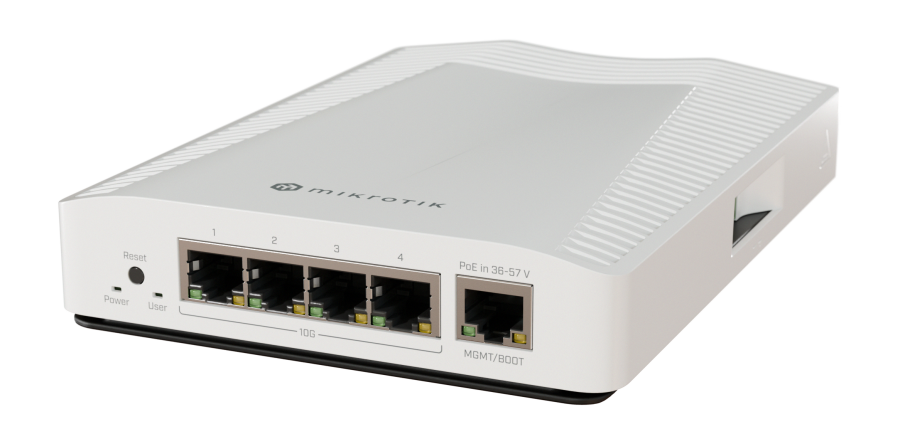

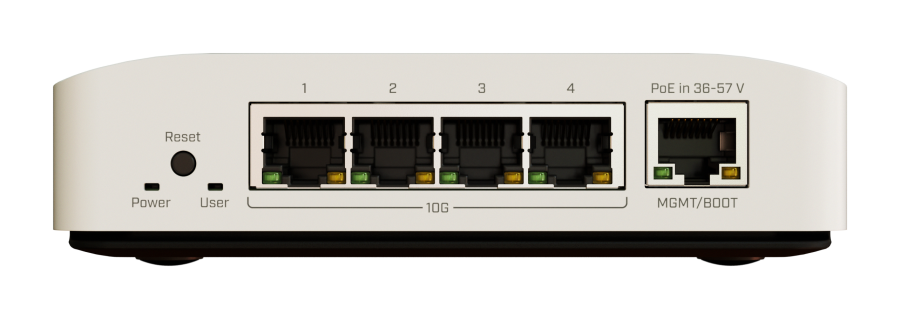

• 4x 10GBASE-T Ethernet ports: 1G/2.5G/5G/10G supported

• 1x Gigabit Ethernet port: Management and PoE-in​

⚡ Power Options

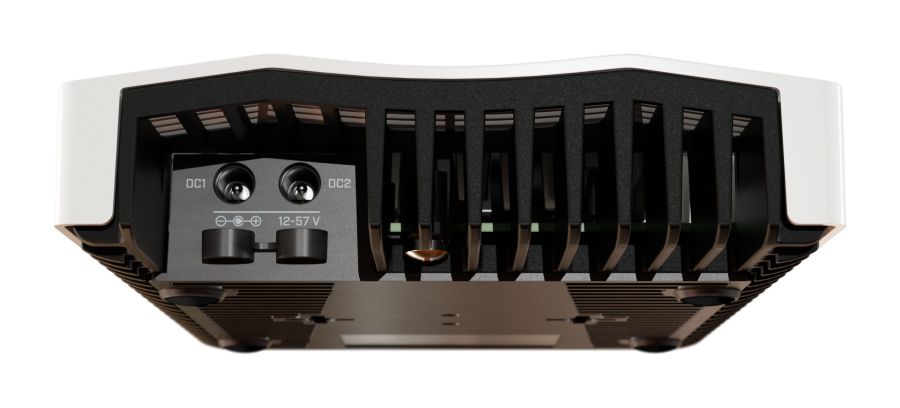

• DC Inputs: 2x DC jack (12–57V), 1x 2-pin terminal (12–57V)

• PoE-in: 802.3af/at supported, in the range of 36–57V

• Maximum Power Consumption21W

• Minimum Power Consumption15W

❄️ Cooling and Design

• Soğutma: Passive (fanless) cooling system

• Kasa: Durable and lightweight, it provides quiet operation with an integrated heat spreader feature.

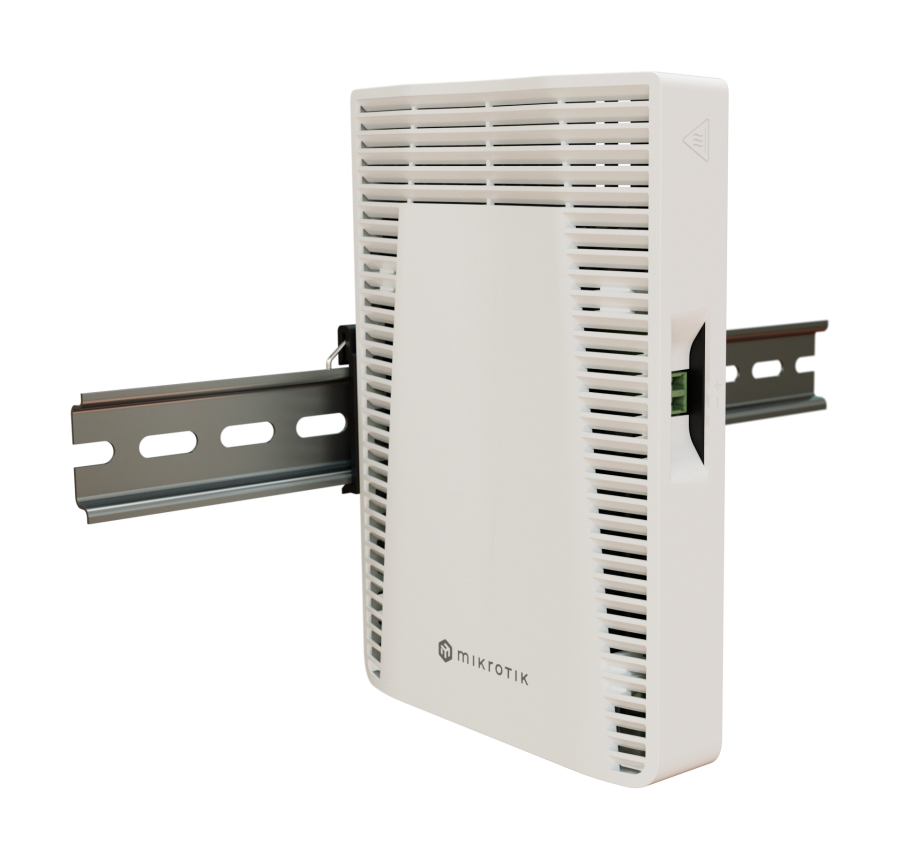

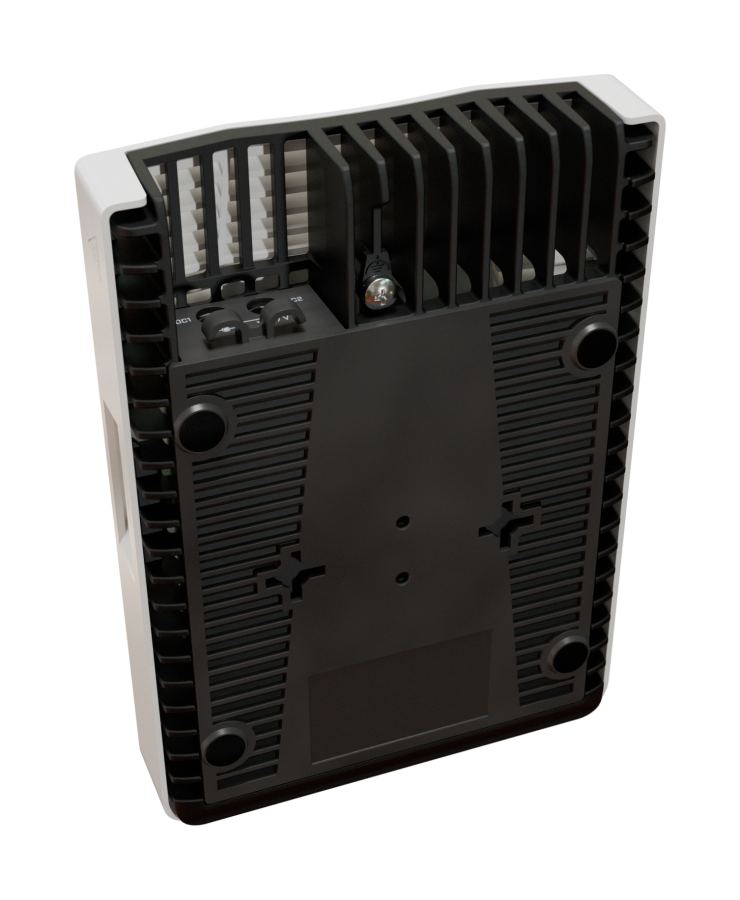

• Assembly Options: Flexible installation with DIN rail mounting and rear screw points.​

🔧 Software and Features

• RouterOS v7: It offers advanced Layer 2 and Layer 3 features.

• Hardware-Based Features: Port-to-port routing, VLAN support, MAC filtering, traffic mirroring, and limitation

• Management Tools: Easy configuration via WebFig and WinBox​

📦 Box Contents

• CRS304-4XG-IN switch

• 48V 0.95A power adapter

• Assembly kit​
