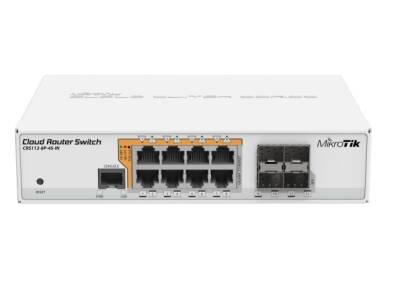

CRS112-8P-4S-IN

MikroTik CRS112-8P-4S-IN, it is a smart switch designed for small and medium-scale networks, featuring 8 Gigabit Ethernet ports and 4 SFP slots, with Power over Ethernet (PoE) support. It supports both passive PoE and 802.3af/at (PoE/PoE+) standards, allowing it to directly power various network devices.

🔧 Technical Specifications

• İşlemci: Qualcomm Atheros QCA8511, 400 MHz, 1 core

• RAM: 128 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS, Level 5 licensed

• Boyutlar: 200 x 142 x 44 mm

• Operating Temperature: -20°C to +60°C

• MTBF: Approximately 200,000 hours @ 25°C

• Sertifikalar: CE, EAC, RoHS

🌐 Network and Connection Properties

• Ethernet Ports: 8 x 10/100/1000 Mbps (Gigabit Ethernet)

• SFP Ports: 4 x 1.25 Gbps SFP slot (Mini-GBIC), DDMI support

• Serial Console PortRJ45

⚡ Power and PoE Features

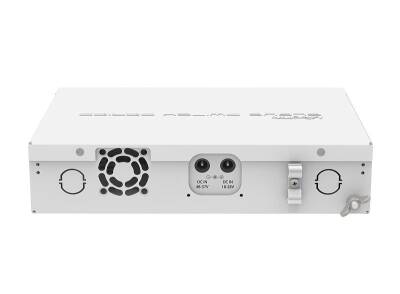

• Input Voltage: 18–28 V / 48–57 V DC (2 x DC jack)

• Maximum Power Consumption: 160 W

• PoE Output:

  • PoE output through all Ethernet ports (Ether1–Ether8)

  • 802.3af/at and Passive PoE support

  • 18–28 V input maximum 1 A per port

  • 48–57 V input maximum 450 mA per port

  • Total PoE output power: 2.8 A @ 18–28 V, 1.4 A @ 48–57 V

📦 Box Contents

• CRS112-8P-4S-IN device

• 28 V 3.4 A power adapter

• Mounting ears (K-48 set)

• IEC power cable
