CRS112-8G-4S-IN

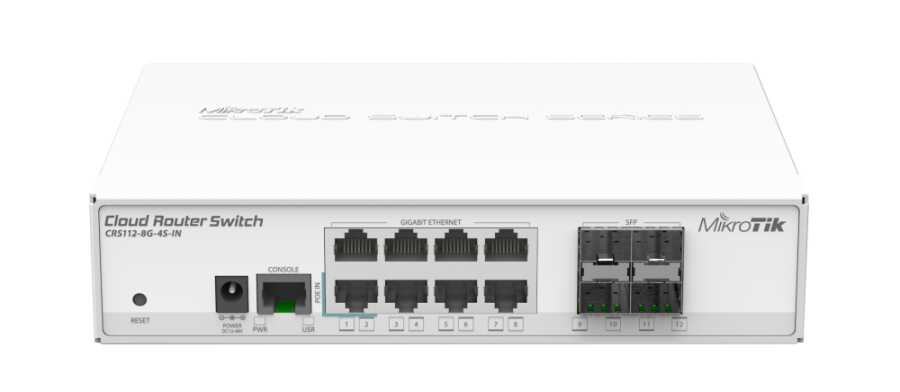

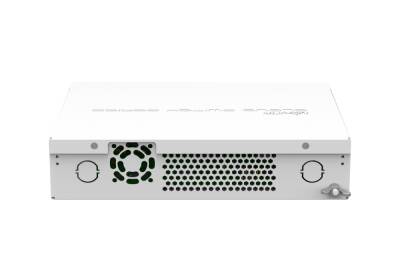

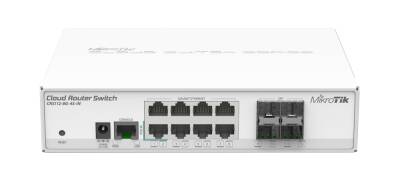

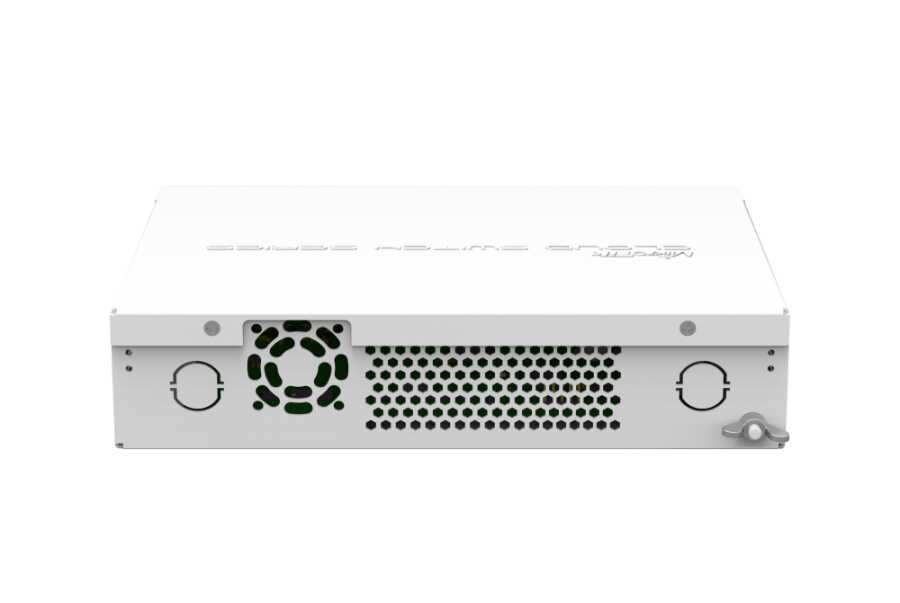

MikroTik CRS112-8G-4S-INIt is a desktop-type, manageable switch that includes eight Gigabit Ethernet ports and four SFP slots. This device, which operates with the RouterOS operating system, offers Layer 3 routing capabilities and is suitable for small to medium-sized networks.

🔧 Technical Specifications

• Model: CRS112-8G-4S-IN

• İşlemci: Qualcomm Atheros QCA8511, 400 MHz, 1 core

• RAM: 128 MB

• Depolama: 16 MB Flash

• Operating System: RouterOS (Level 5 license)

• Boyutlar: 200 x 143 x 44 mm

• Operating Temperature: -30°C to +70°C

• MTBF: Approximately 200,000 hours @ 25°C

• Sertifikalar: CE, EAC, RoHS

🌐 Network and Connection Properties

• Ethernet Ports: 8 x 10/100/1000 Mbps Gigabit Ethernet

• SFP Slots: 4 x 1.25 Gbps SFP slot (compatible with 1.25G SFP modules)

• Console PortRJ45

• Switching Capacity: 16 Gbps

• Transmission Speed: 11.9 Mpps

• MAC Address Table: 16,000 entries

⚡ Power and PoE Features

• Input Voltage: 10–57 V DC

• Power Input:

  • DC jack (5.5 mm outer / 2 mm inner, positive tip)

  • Passive PoE via Ethernet port

• Maximum Power Consumption: 13.5 W

• Soğutma: Passive (does not include a fan)

🧰 Box Contents

• CRS112-8G-4S-IN device

• Power adapter

• Quick installation guide
