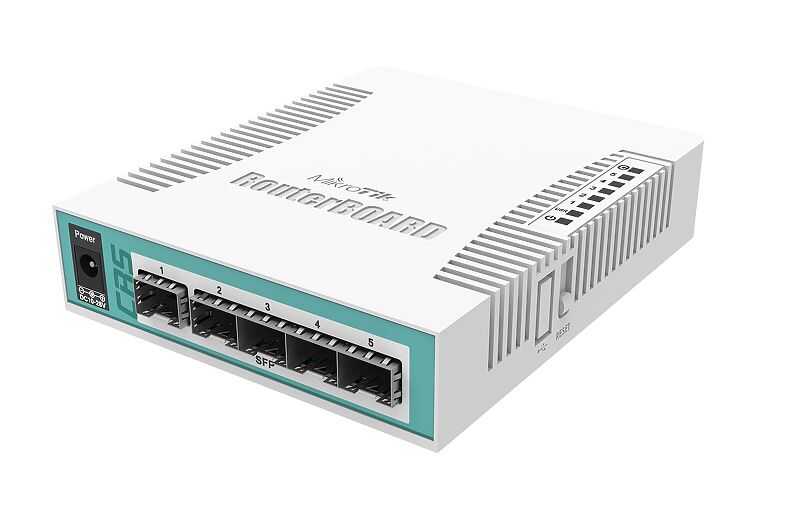

CRS106-1C-5S

MikroTik CRS106-1C-5SIt is a desktop-sized smart switch designed for small and medium-scale networks. It is particularly suitable for offices requiring fiber connections, service providers, and WISP solutions.

🔧 Technical Specifications

• Product Code: CRS106-1C-5S

• İşlemci: QCA8511, 400 MHz, 1 core (MIPSBE architecture)

• RAM: 128 MB

• Depolama: 16 MB Flash

• RouterOS License: Level 5

• Operating System: RouterOS

• Boyutlar: 114 x 137 x 29 mm

• Operating Temperature: -20°C to +70°C

• Maximum Power Consumption11 W

• Sertifikalar: CE, EAC, RoHS

🌐 Network and Connection Properties

• SFP Ports: 5 x 1.25 Gbps SFP slot (Mini-GBIC; SFP modules not included), DDMI support

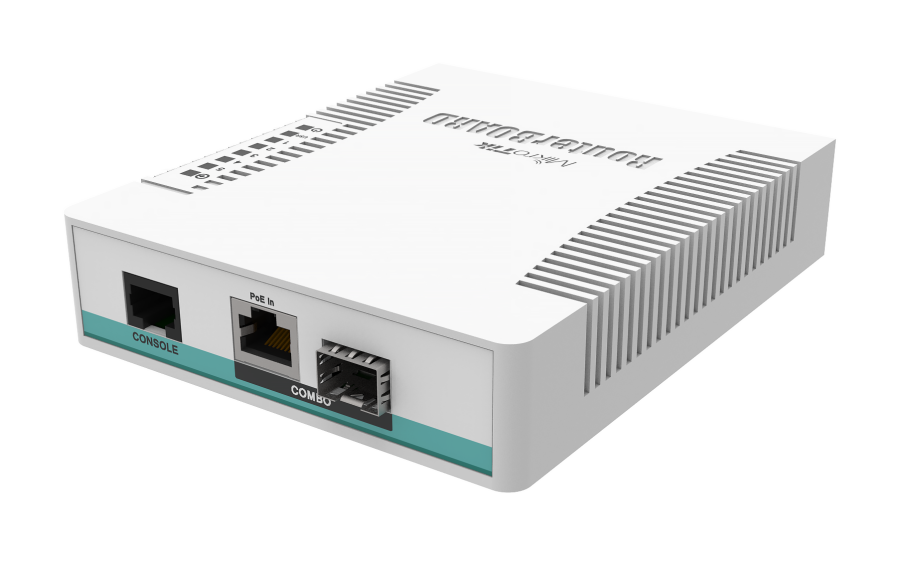

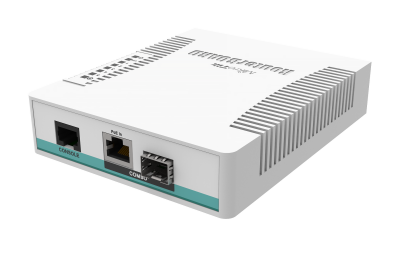

• Combo Port: 1 x Gigabit Ethernet / SFP (only one can be used at a time)

• Serial Console PortRJ45

⚡ Power and PoE Features

• Input Voltage: 11–30 V DC

• Power Input:

  • DC Jack (5.5 mm outer / 2 mm inner, positive tip)

  • Passive PoE via Ethernet port

• PoE Support: Passive PoE (no PoE output)

📦 Box Contents

• CRS106-1C-5S device

• 24 V 0.8 A power adapter

• Quick installation guide
