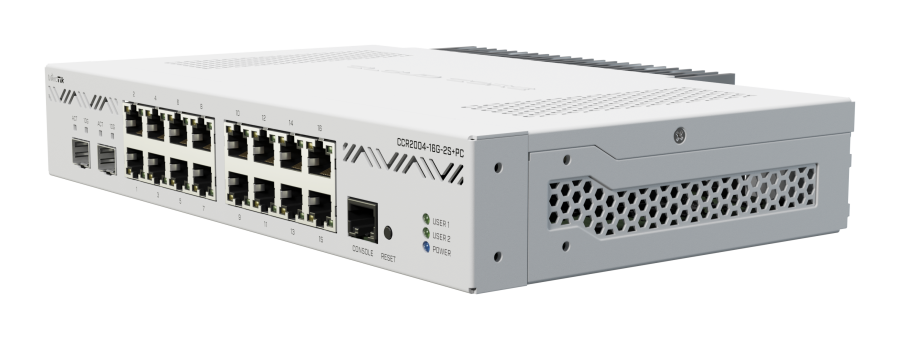

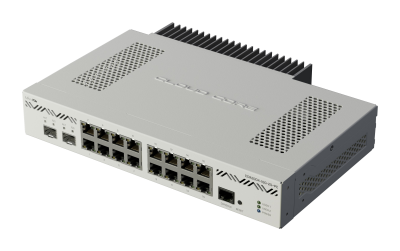

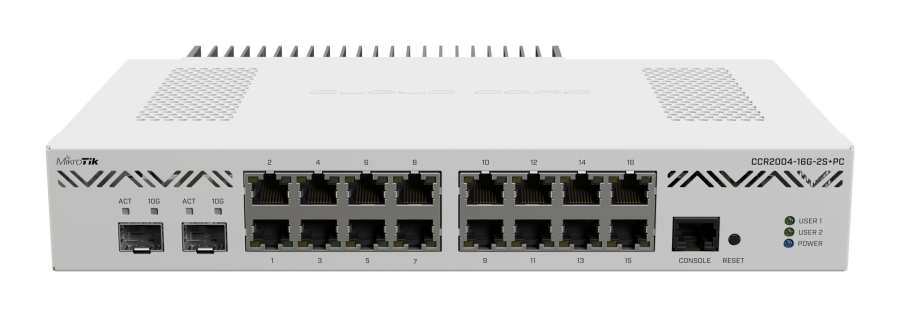

CCR2004-16G-2S+PC, Belonging to MikroTik's powerful Cloud Core Router series, high-performance andfanless (passive cooling)It is a router. With 16 Gigabit Ethernet ports and 2 10G SFP+ ports, it is ideal for both high-speed data center applications and service provider networks. It provides a quiet operating environment.
🔌 Hardware Specifications
CPUAL32400 64-bit ARMv8, 4-core, 1.7 GHz
RAM4 GB DDR4
Depolama: 128 MB NAND
Ethernet Ports16 × 10/100/1000 Mbps (Gigabit)
SFP+ Slots2 × 10G SFP+
USB Port1 × USB 3.0 Type-A

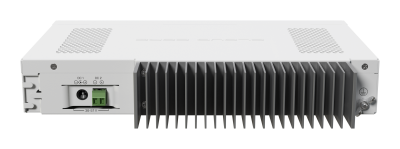

Case Type1U rackmount (fanless, fully passive cooling)
RouterOS LicenseLevel 6

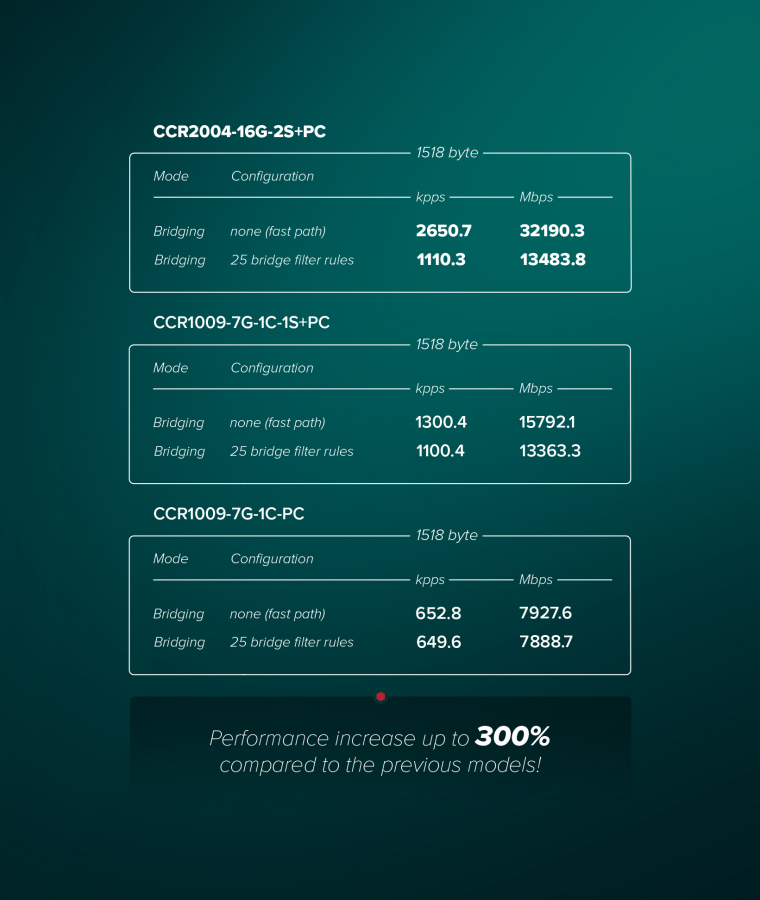

⚙️ Performance Characteristics
Total Switching Capacity: 168 Gbps
Total Redirection Capacity: 120 Mpps
Connection Speed10G uplink + 1G LAN connections
Power Input:
Internal 100–240V AC power supply
Second alternative DC input (36–57V, for backup)
Power ConsumptionMaximum 27W
Operating Temperature: -20°C to +60°C
🌿 Advantages & Areas of Use
Silent operationIdeal for quiet environments thanks to fanless cooling.
ISP solutions: BGP, OSPF, MPLS, VPN, firewall, and traffic shaping support
Data centerHigh-speed core routing with 10G uplink
Corporate networksAdvanced traffic control and flexible configurations
RouterOS v7Fully compatible with (WireGuard, ZeroTier, BGP improvements, v6-v7 transition tools)
📦 Box Contents
MikroTik CCR2004-16G-2S+PC
Power cable
Rack ears (for mounting)
User manual
🔍 Featured Features
✅ 16× Gigabit LAN + 2× 10G uplink
✅ High processing power with ARM architecture
✅ Passive cooling – Operates silently, does not collect dust.
✅ RouterOS L6 – Unlimited users, full routing features
✅ Connection of modem or external disk via USB port
