CCR1016-12S-1S+

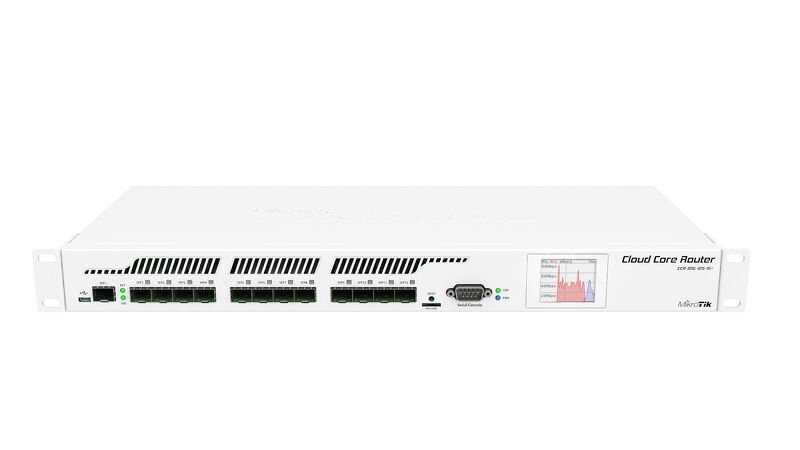

MikroTik CCR1016-12S-1S+, is an industrial-grade router designed for network infrastructures requiring high performance. It offers a powerful network solution with a 16-core Tilera TILE GX processor and 12 SFP ports.

🔧 Technical Specifications

• İşlemci: Tilera TILE GX, 16 cores, 1.2 GHz frequency

• RAM: 2 GB DDR3

• Depolama: 128 MB NAND

• Operating System: RouterOS v6, Level 6 license

• Boyutlar: 443 x 197 x 44 mm (1U rackmount)

• Operating Temperature: -20°C to +60°C

• Maximum Power Consumption: 47.5 W

• Soğutma: 2 x internal fan (active cooling)

🌐 Network and Connection Properties

• Ethernet Ports: 12 x SFP (1 Gbps)

• SFP+ Port: 1 x SFP+ (10 Gbps)

• USB Port: 1 x USB Type A (maximum 1A current), USB Power Reset feature

• microSD SlotYes

• Console Port: RJ45 serial port

• LCD Screen: Colorful touch screen

📈 Performance Data

• Maximum Packet Processing in FastPath Mode: 17.8 million packets/second (mpps)

• Maximum Bandwidth: 12 Gbps

• IPsec Performance:

  • Single Tunnel (AES-128-CBC + SHA1): ~1.46 Gbps

  • 256 Tunnel (AES-128-CBC + SHA1): ~10.22 Gbps

  • 256 Tunnel (AES-256-CBC + SHA256): ~9.99 GBP

📦 Box Contents

• CCR1016-12S-1S+ device

• 2 x IEC power cable

• Rack mounting ears and screw set

• Quick installation guide
