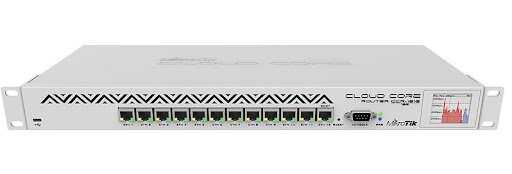

CCR1016-12G

MikroTik CCR1016-12G, is an industrial-grade router designed for high-performance networks. With its 16-core processor and 12 Gigabit Ethernet ports, it can process millions of packets per second. With these features, it is an ideal solution for data centers and large-scale network infrastructures.

🔧 Technical Specifications

• Model: CCR1016-12G

• İşlemci: Tilera Tile-Gx16, 16 cores, 1.2 GHz frequency

• RAM: 2 GB (2x 1 GB SODIMM DDR slots; supports 16 GB or more)

• Depolama: 512 MB NAND, 512 KB flash

• Operating System: RouterOS v6 (64-bit), Level 6 license

• Boyutlar: 443 x 193 x 44 mm (1U rackmount)

• Operating Temperature: -20°C to +60°C

• MTBF: Approximately 200,000 hours @ 25°C

• IPsec Hardware AccelerationYes

🌐 Network and Connection Properties

• Ethernet Ports: 12 x 10/100/1000 Mbps Gigabit Ethernet (Auto-MDI/X)

• Console Port: RJ45 serial port

• USB: 1 x USB Type A (maximum 1A current), USB Power Reset feature

• LCD Screen: Colorful touch screen

⚡ Power and Cooling Features

• Power Input: 2 x AC input (100-240V, redundant power supplies)

• Maximum Power Consumption: 42 W

• Soğutma: 2 x internal fan (active cooling)

📈 Performance Data

• Maximum Packet Processing in FastPath Mode: 17.8 million packets/second (mpps)

• Maximum Bandwidth in RouterOS Queue/Firewall Configurations: 12 Gbps

• IPsec Performance:

  • Single Tunnel (AES-128-CBC + SHA1): ~1.46 Gbps

  • 256 Tunnel (AES-128-CBC + SHA1): ~4.07 Gbps

  • 256 Tunnel (AES-256-CBC + SHA256): ~3.90 Gbps

📦 Box Contents

• CCR1016-12G device

• 2 x IEC power cable

• Rack mounting ears and screw set

• Quick installation guide
