RBcAPGi-5acD2nD Cap ac

MikroTik RBcAPGi-5acD2nD, commonly known ascAP acIt is known as a dual-band wireless access point suitable for ceiling or wall mounting. With its aesthetic design and powerful hardware, it is an ideal solution for areas with high user traffic such as hotels, offices, shopping malls, and educational institutions.

📡 Wireless Features

• Frequency Bands: 2.4 GHz and 5 GHz (simultaneous operation)

• Wireless Standards:

  • 2.4 GHz: 802.11b/g/n (Wi-Fi 4)

  • 5 GHz: 802.11a/n/ac (Wi-Fi 5)

• Maximum Data Rates:

  • 2.4 GHz: 300 Mbps

  • 5 GHz: 867 Mbps

• Antenna Gains:

  • 2.4 GHz: 2 dBi

  • 5 GHz: 2.5 dBi

• MIMO: 2x2 (double-stranded for each band)

• Coverage Area360°

⚙️ Hardware Specifications

• İşlemci: Qualcomm IPQ-4018, 4-core, 716 MHz

• RAM: 128 MB

• Depolama: 16 MB Flash

• Ethernet Ports: 2 x Gigabit Ethernet

  • Port 1: 802.3af/at PoE input

  • Port 2: Passive PoE output (max. 500 mA)

• Power Consumption: Maximum 24 W (with additional devices); 13 W for the device only

• Power Input Voltage Range: 17–57 V

• Soğutma: Pasif

• Operating Temperature: -40°C to +50°C

• MTBF: Approximately 100,000 hours @25°C

🧰 Software and Management

• Operating System: MikroTik RouterOS (License Level 4)

• Management Features: Centralized AP management with CAPsMAN support, IPsec hardware acceleration, bandwidth control, firewall, user access control, and other RouterOS features.

• Default IP: 192.168.88.1 (Username: admin, password: none)

📦 Box Contents

• RBcAPGi-5acD2nD device

• 24V 1.2A power adapter

• Gigabit PoE injector

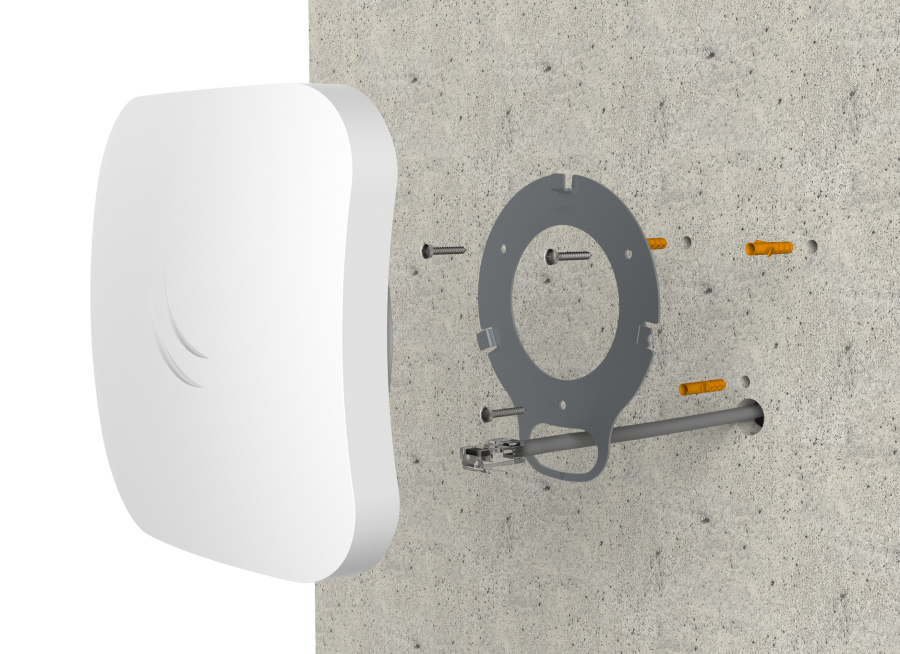

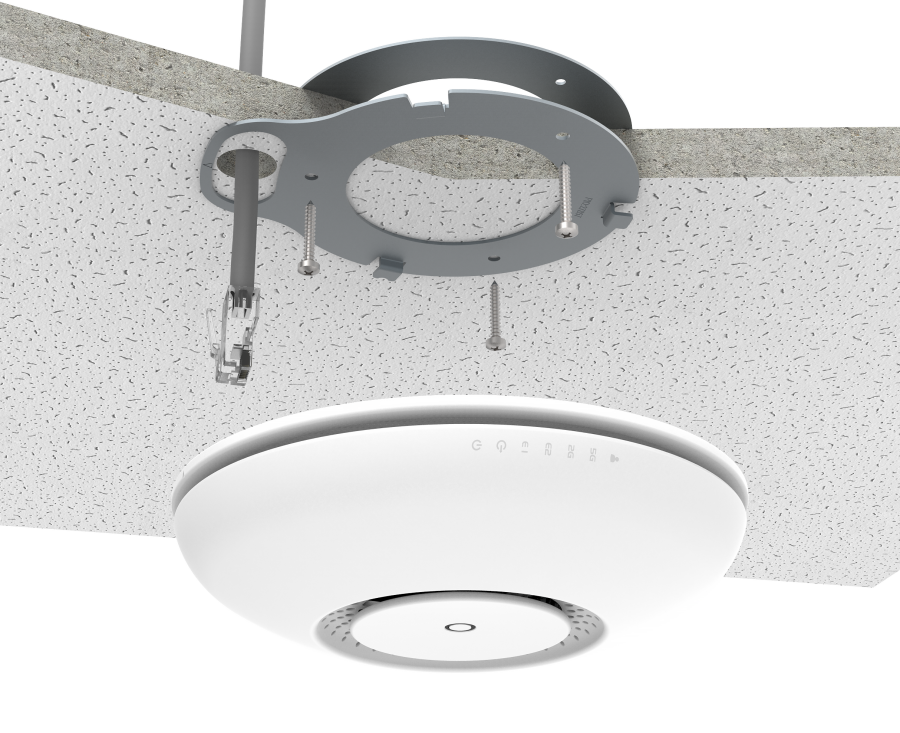

• Ceiling mounting device

• K-46 screw set
